Product Details:
|
| Touch Type: | IR Touch Frame Kit | Touch Points: | 10 Touch Ponits |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | 50" Infrared Touch Screen,Infrared Touch Screen For Interactive Whiteboard |
||
It delivers a high precision infrared touch frame, the resolution of the interpolation algorithm is up to 32767 by 32767.
It is widely installed on monitor for in-store interaction, point of sale, self-service, wayfinding, corporate, healthcare, education, transportation, entertainment, restaurant, and hospitality environments.IR touch technology involves an embedded overlay of infrared beams from top to bottom and side to side around the device’s bezel. When the invisible plane provided by the beams in broken by any object, the device registers a touch point. With up to 40 simultaneous touch points, IR touch screen displays are a bit less accurate than PCAP displays. That said, Infrared displays are still quite accurate enough to be used in a wide variety of settings. But when used outdoors on a bright and sunny day, the sunlight can sometimes interfere with the overlay’s touch reception.
Typical Applications:
• Vandal proof, wear-resistant
• Maintenance free, longer life expectancy
• Fault tolerance design to ensure reliability
• Versatile touch object
• Super transparency
• Integrated controller
• Gesture support for E2-series
• Operable in various light conditions, indoor and outdoor
Specification of Product
| MECHANICAL | |
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |
| Overlay Frame Width | 19.1 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0 013 |

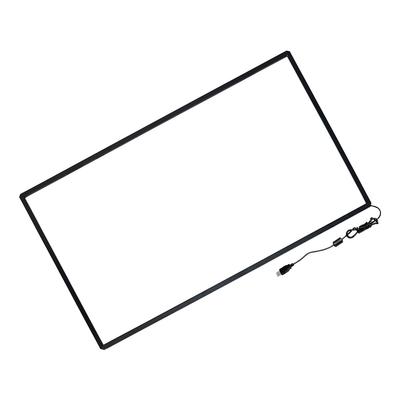

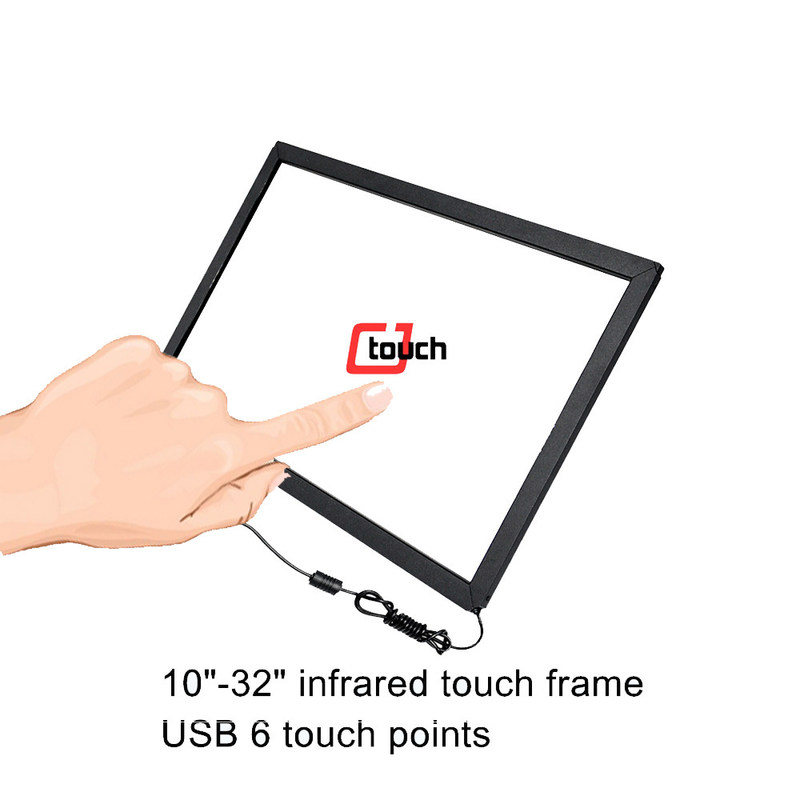

Picture of Product
Technical Drawing
