Product Details:
|
| Product Name: | TFT LCD Panel | Size: | 15.6'' |
|---|---|---|---|
| Active Area: | 344.16(H) × 173.95(V) | Pixel Pitch: | 0.17925(H) X 0.17925(V) |
| Pixel Arrangement: | RGB Vertical Stripe | Display Colors: | 16.7M |
| Display Mode: | Normally Black | ||
| High Light: | Thin Film TFT LCD Module,TFT LCD Module 15.6 Inches 1920x1080,300 Nits tft display module |
||
General Description

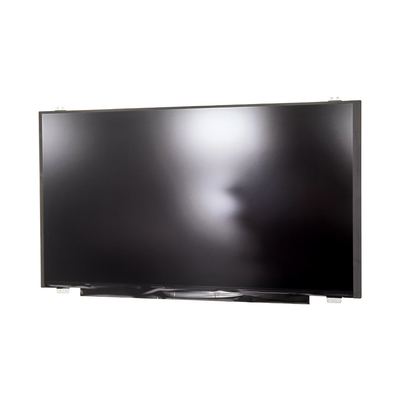

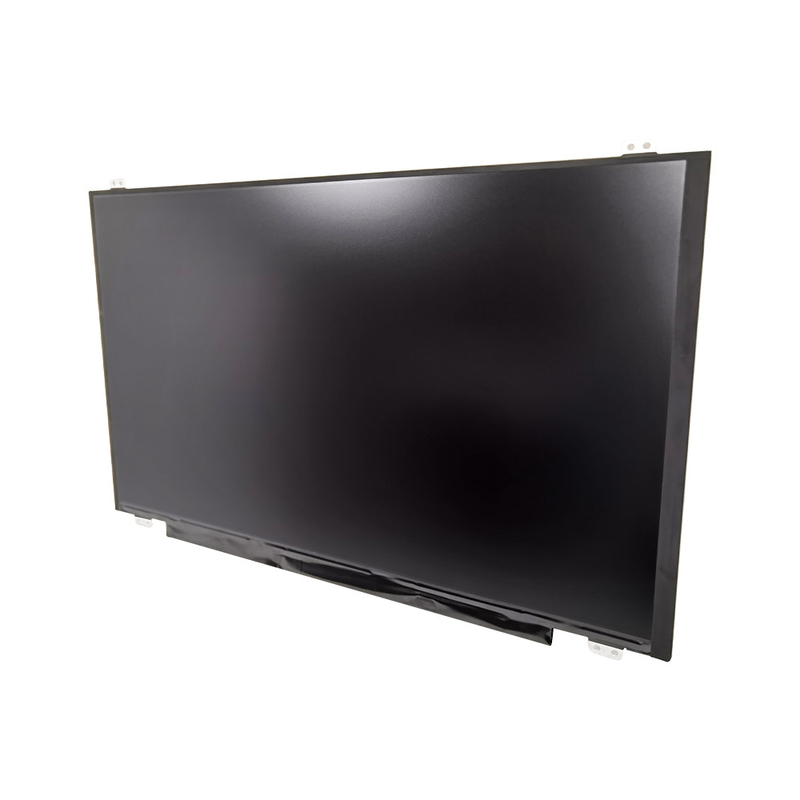

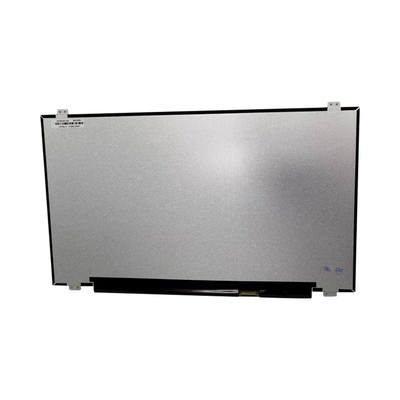

The specification is applied to 15.6” model (CJZN156CS01.300) LCM.
The LED driver for back-light driving is built in this model.
The matrix uses a- Si Thin Film Trans istor as a switching device.
This TFT LCD has a 15.6 inch diagonally measured active display area with FHD reso lution
(1,920 horizontal by 1080 vertical pixels array). Each pixel is divided into RED, GREEN, BLUE dots which
are arranged in vertical stripe and this module can display 16.7M(6bit+2FRC) colors and color gamut 45%.
The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this
module is suitable for POS.
Features
(1)2 lane eDP interface with 2.7 Gbps link rates
(2)16.7M(6bit+2FRC) color depth, color gamut 45%
(3) Green product (RoHS & Halogen freeproduct)
(4) On board LED driving circuit
(5) Low driving voltage and low power consumption
General Specifications
| Active area | 344.16(H)x193.59(V) | mm | |
| Number of pixels | 1920(H)x1080(V) | pixels | |
| Pixel pitch | 0.17925(H)x×0.17925(V) | mm | |
| Pixel arrangement | RGB Vertical stripe | ||
| Display colors | 16.7M | ||
| Color gamut | 45%@CIE1931 | ||
| Display mode | Normally black | ||
| Dimensional outline | 359.50x206.50x3.2 | mm | |
| Weight | 460 | g | |
| Surface treatment | Anti-Glare | ||
| Surface hardness | 3H | ||
| Power consumption | OC:0.75(Max.) | Aosaic | |
| Module 3.564(max) | NX7 | ||
| W | (@Mosaic |
The reliability test items and its conditions are shown in below.
| No | Test Items | Conditions |
| 1 | High temperature storage test | 60℃,48 hrs |
| 2 | Low temperature storage test | -20℃,48 hrs |
| 3 | High temperature & high humidity operation test | 50℃, 80%RH,48 hrs |
| 4 | High temperature operation test | 50℃,48 hrs |
| 5 | Low temperature operation test | 0℃,48 hrs |
Details
The static contrast ratio definition, the viewing angles are defined at the angle that the contrast ratio is larg
er than 10 at four directions relative to the perpendicular direction of theAnsun’s module (two vertical angles: up θy+ a
nd down θy-; and two horizontal angles: right θx+ and left θx-). The standard setup of measurement is shown in Figure
8 & 9
Mechanical Outline Dimension
PACKING
STORAGE
(1) Do not leave the module in high temperature, and high humidity for a long time. It is highly recomme
nded to store the module with temperature from 0 to 35℃and relative humidity of less than 70%.
(2) Do not store the TFT-LCD module in directsunlight.
(3) The module shall be stored in a dark place. It is prohibited to apply sunlight or fluorescent light during
the store.
