Product Details:
|
| Touch Type: | Large IR Touch Frame Overlay | Touch Points: | 10 Touch Ponits |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | 86 Inch Infrared Touch Screen,High Sensitivity Infrared Touch Screen |
||
Our 86"Infrared multi touch screen suppor 10 touch points touch,USB prot,Play and plug.support Win7/10 Android (Linux support latest version).Infrared(IR) touch screen operate on the mechanism of infrared LEDs arranged in arrays on two adjacent bezel edges of the PCB with photo sensors placed on the two opposite edges functioning as transmitters and receivers. The LEDs emit infrared rays simultaneously to form a grid of rays across the display. When the user wishes to send a signal through touch, he/she can do so by interrupting the light beams with a physical object. Since every infrared LED is independent, the touch screen is able to achieve positioning by analyzing the decrease in light at the corresponding photo sensors. The signal is then processed by the control circuitry and sent to the PC for the coordinates of the touch event to be displayed on screen or to be utilized by other software for relevant signal operation.
Specification of Product
| MECHANICAL | |
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |
| Overlay Frame Width | 19.1 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0 013 |

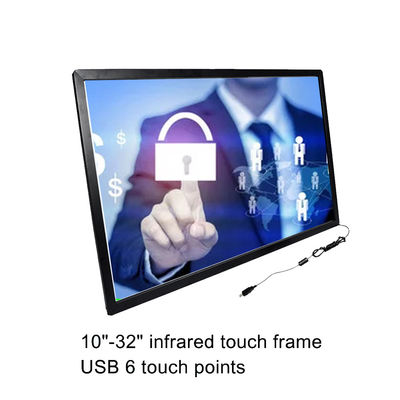

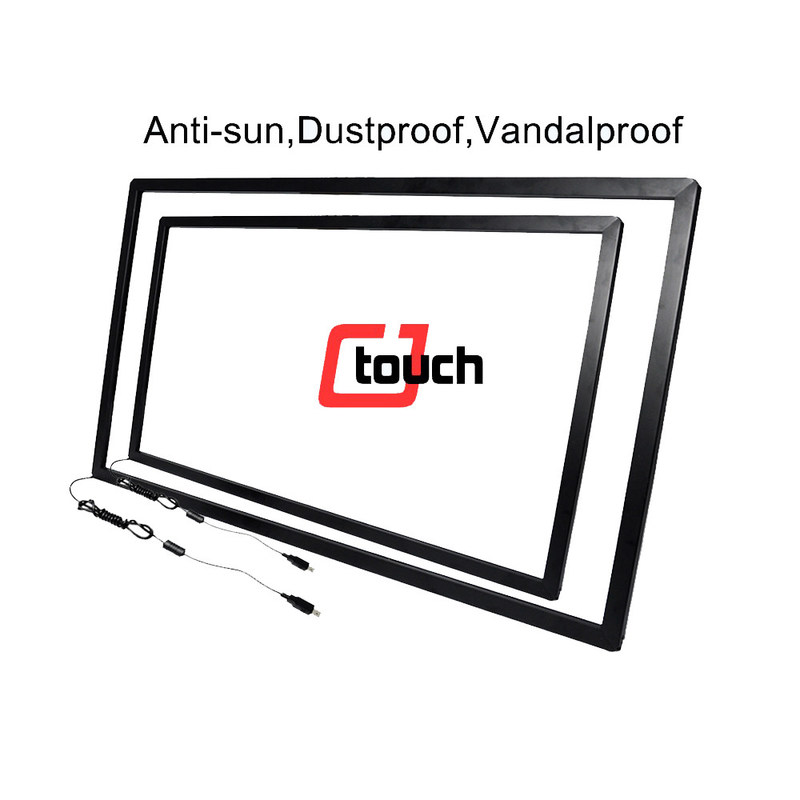

Picture of Product
Technical Drawing
