Product Details:
|
| Touch Type: | Saw Touch Screen Overlay | Touch Points: | One Touch Point |
|---|---|---|---|
| Glass: | 4mm/6mm | Input Voltage: | 5V |
| Driver: | Plug And Play | RS232: | Optional |
| Customized: | Support | Interface: | USB |
| High Light: | Surface Acoustic Touch Screen 18.5 Inch,Overlay Wide Surface Acoustic Touch Screen |
||
SAW resistive touch panels and screens offered by CJtouch come in sizes ranging from 8 to 32 inches with diagonal CTB sizes also available. These touch screens can be used with a bare finger, gloved finger, or stylus, and come with shielded connectors and 4096 X 4096 resolution. They provide stable “drift-free” operation, meaning the touch response is always accurate.When compared to capacitive and resistive touch screens, surface acoustic wave technology is superior. It provides better image clarity, resolution, and higher transmission of light. Because the SAW resistive touch panel is all glass, there are no layers that can be worn down; therefore, this technology has the longest life, especially when compared to other touch screen technologies on the market. SAW resistive touch panels have a quick response time, and can recognize the location and amount of pressure applied.
Benefits of SAW Touch Screen Technology
High durability. Scratch-resistant.
High clarity and light transmission
Easy for customizing.
Strong mechanical strength
Short response time
Compact size for easy integration
Customization available on glass sensor size, driver, accessories
CJtouch provides 5 years warranty for touch glass, 3 years for controller.
Applications
Food processing
Industrial automation
Kiosks
Medical equipment
In-vehicle and transportation
Point-of-sale (POS) terminals
Specification of Product
| Technology | Surface Acoustic Wave(SAW) |
| Sizes | 8" to 32" (extending) |
| Controller Interface | USB OR RS232 |
| Resolution | 4096*4096 ,Z-axis 256, not related with the sizes of the touch screen panel |
| Material | Pure glass |
| Positional Accuracy | Standard deviation of error is less than 0.080 in.(2mm) |
| Light Transmission | More than 90% per ASTM |
| Touch Activation Force | 30-60g |
| Durability | Scratch-free; More than 50,000,000 touches in one location without failure. |
| Surface Hardness | Mohs' hardness rating of 7 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 10%-90% RH at 40°C, non-condensing |
| Operation Altitude | 3800m |
| Accessories | Connector cables, double-sided glue, dust-proof stripes |
| Agency Approval | CE, FCC, RoHS, |
| Controller technical specification: | |
| Sizes(PCB) | 85mm*55mm*10mm |
| Working voltage | 12V±0.5V |
| Working Current | 80mA |
| Maximum Current | 100mA |
| Response time | ≤10ms |
| Operating temperature | -10°C-70°C |
| Operating humidity | 10%-90%RH. |
| Storage temperature | -25°C-80°C |
| Multi-Point Touch | Intelligent discrimination by software |
| Agency Approval | CE, FCC, RoHS |

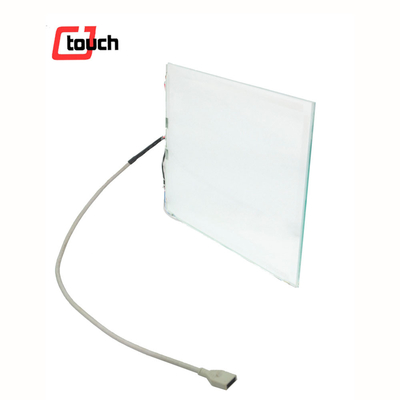

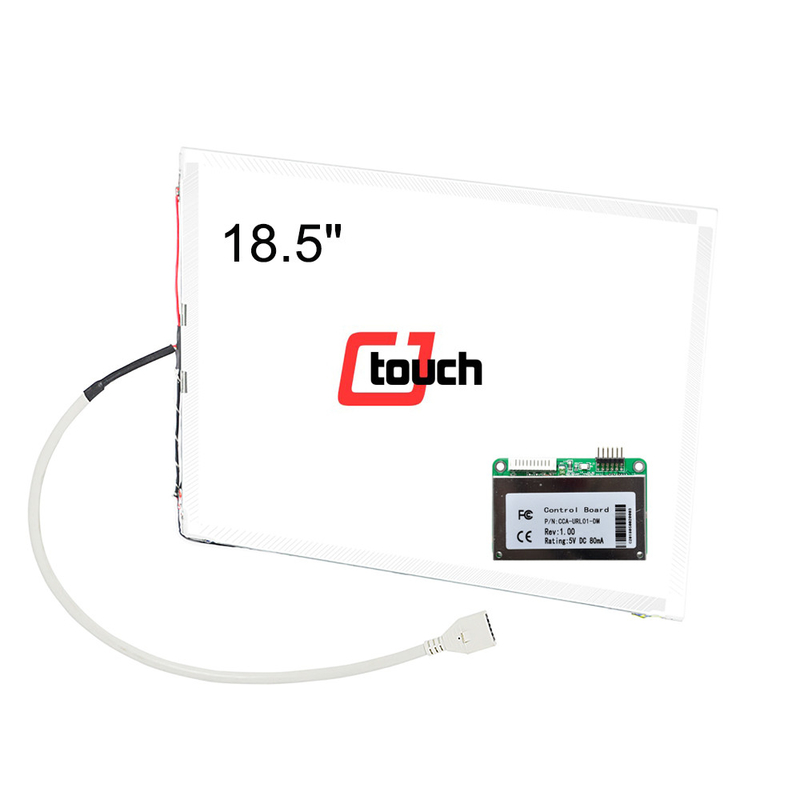

Picture of Product
Technical Drawing
