Product Details:
|
| Touch Type: | Capacitive Touch Panels | Application: | Gaming Machines |
|---|---|---|---|
| Technologies: | Capacitive Technology | Pressure Value: | 400 ~500 MPA Above 6u |
| Input: | Hand Writing Or Capacitive Pen | Interface: | 1.3/1.8 M USB |
| Touch Points: | 10 Touch Points | ||
| High Light: | High Sensitivity PCAP Touch Screen,AIO Touch PC PCAP Touch Screen,15.6 Inch LCD Touch Screen Panel |
||
15.6 Inch Projected Capaitive Touch Screen PCAP Touch Screen for All in one touch pc
Markets
Typical Application
Which is better capacitive or resistive touch screen?
If you want increased screen contrast and clarity, capacitive touch screens are the preferred option over resistive screens, which have more reflections due to their number of layers. Capacitive screens are also far more sensitive and can work with multi-point inputs, known as 'multi-touch'.
Could you want to make a Smart Lockers ?
The Small size PCAP Touch Screen will help you make a Touch Monitor , reduce labor coats though automated pickup .
Projected Capacitive Touch Screens
PCAP touch screen software is typically used in smart phones and tablets, but can also be used for much larger screens. It works through the use of a conductive grid that recognizes changes in its electromagnetic field by the touch of your finger. Projected capacitive touch screen technology does not require a bezel. They detect only fingers or styluses. PCAP displays very accurate, and capable of up to 60 touch points.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

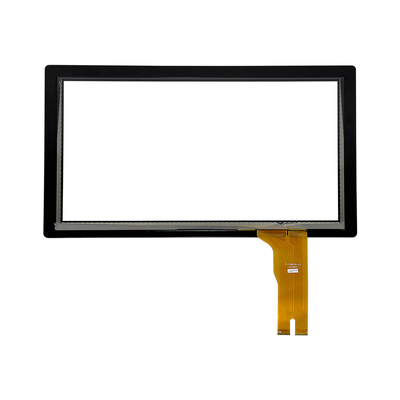

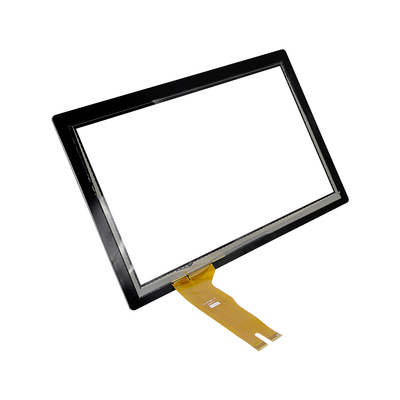

Picture of Product
Technical Drawing
