Product Details:
|
| Inch: | 13.3 Inch PCAP Touch Screen | Glass: | 3mm Tempered Glass |
|---|---|---|---|
| Touch Type: | Capacitive Touch Panels | Customized: | Support Customized Glass |
| Cover Lens: | 3mm | Input Voltage: | 5V |
| Hardness: | ≥6H | Touch Points: | 10 Touch Points |
| High Light: | PCAP Touch Screen With 3mm Glass,13.3 Inch PCAP Touch Screen,Vandal Proof 10 Point Touch Screen |
||
While there are thousands upon thousands of different touchscreen devices on the market, nearly all of them rely on either resistive or capacitive technology. Resistive touchscreens are constructed with three layers: an upper layer, bottom layer, and a middle layer that’s comprised with air or a similar inert gas/substance. When the operator presses down on the surface of a resistive touchscreen devices, it squeezes the upper and bottom layers together; thus, calculating the point of touch.
Most manufactures of touchscreen devices prefer capacitive technology over resistive. So, what makes capacitive the preferred choice?
Requires Less Pressure
Because capacitive touchscreens register touch via the human body’s electrical current, they require less pressure to operate than resistive touchscreens. In fact, you can typically operate a capacitive touchscreen simply by dragging your finger across the surface. This is in stark contrast to resistive touchscreens, which often require a firm, medium-pressure press.
Main Feature
touch screen devices placed in the lobby. Financial institutions are places where Capacitive Touch Panel Screen are used a lot. The bank can help the business through the operation of the touch screen. It is more convenient for the handler to enter the information in advance and then go to the front desk to handle it.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

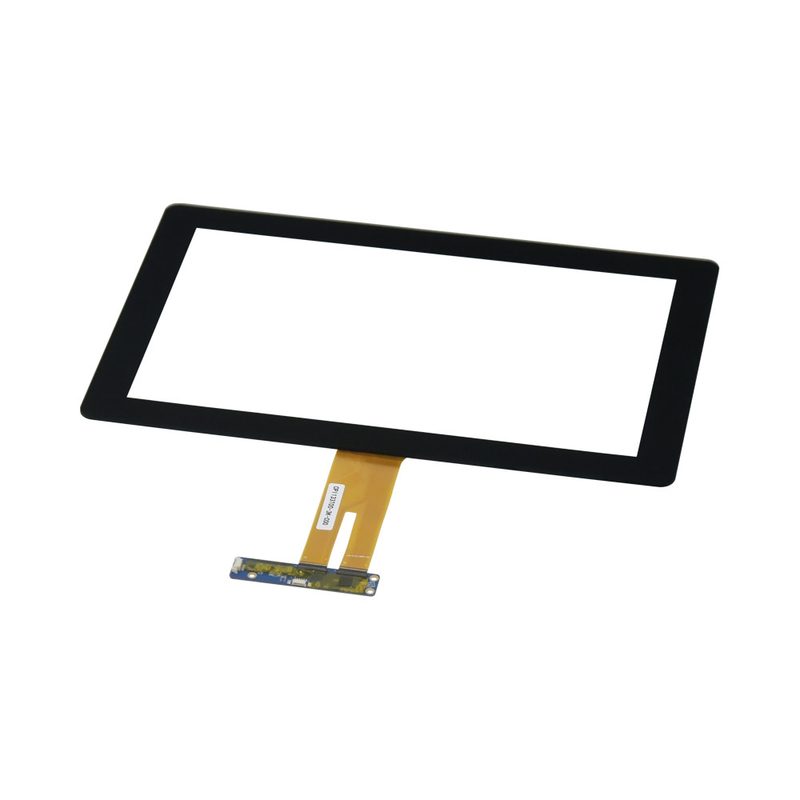

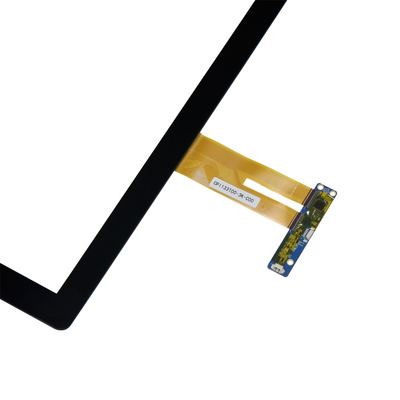

Picture of Product
Technical Drawing
