Product Details:
|
Type: | 32 Inch Indoor Curved Touch Monitor | Resolution: | 1920*1080 |
---|---|---|---|
Video Port: | HDMI | Touch Type: | PCAP Touch Screen |
Panel Type: | IPS | Multi Touch: | 10points Touch |
Brightness: | 300nits | Contrast Degree: | 3000:1 |
High Light: | Curved Touch Screen Monitor 32 Inch,Slot Machine Curved Touch Screen Monitor |
32 inch curved touch screen monitor
Curved touch screen monitor display is a professional touch display product designed for games, high-end places, gambling, self-service terminals and other equipment, such as, self-service terminals, game consoles, gambling machines and so on. The utility model has the advantages of compact structure, convenient installation and high cost performance. All products adopt multi-point projection capacitance touch technology, which has the characteristics of fast touch response, high precision and strong anti-interference.
32inch Curved Touch Monitor Features
Application area
*Gambling and Other game console terminals
*Automatic terminal
*Banking industry
*Public display industry
32inch Curved Touch Monitor Specifications
Product Name | Curved surface 32 inch touch display | |
Product Model | 32” | |
LCD Panel | Active area | 698.4(H)×392.85(V)mm |
Display ratio | 16:09 | |
Back-light | LED | |
Life time | More than 50000 hours | |
Resolution | 1920×1080 | |
Luminance | 300cd/m2 | |
Contrast ratio | 3000:01:00 | |
Response time | 8ms | |
Dot Pitch | 0.363(H)×0.121(V)mm | |
Colour | 16.7M | |
Viewing angle | H/V:178°/178° | |
PCAP Touch screen | Touch type | G + F+F capacitive touch technology |
Response time | <5ms | |
Multi touch | 10 Points touch | |
Recognition area | >1.5mm | |
Scan frequency | 200HZ | |
Scanning accuracy | 4096 x 4096 | |
Interface | Full speed USB2.0,USB3.0 | |
Touch life time | More than 50 million yuan | |
Working current | 180Ma/DC+5V+/-5% | |
Anti-light | Normal when the strong light changes | |
Output type | Coordinate output | |
Surface hardness | Thermal tempering,Mohs grade 7 | |
Operate system | Android/Windows | |
Drive | Free drive, plug and play | |
Outside interface | HDMI input | 1 |
VGA | 1 | |
Touch USB | 1 | |
DC power | 1 | |
Power Supply | Working voltage | AC220V 50/60Hz |
Max. power | 65W | |
Standby power | 1W | |
Use environment | Temperature | 0~40°C |
Humidity | 10~90%RH No condensation | |
Appearance information | Product size | 765.8*458*107.24mm |
Carton size | 860*570*230mm | |
Net weight | 11KG | |
Gross weight | 14KG | |
Accessories | power line *1,HDMI Cable*1,Touch USB Cable*1 |

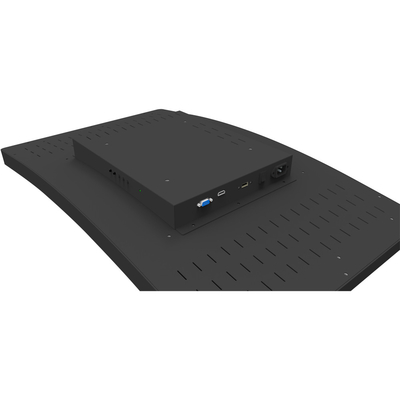

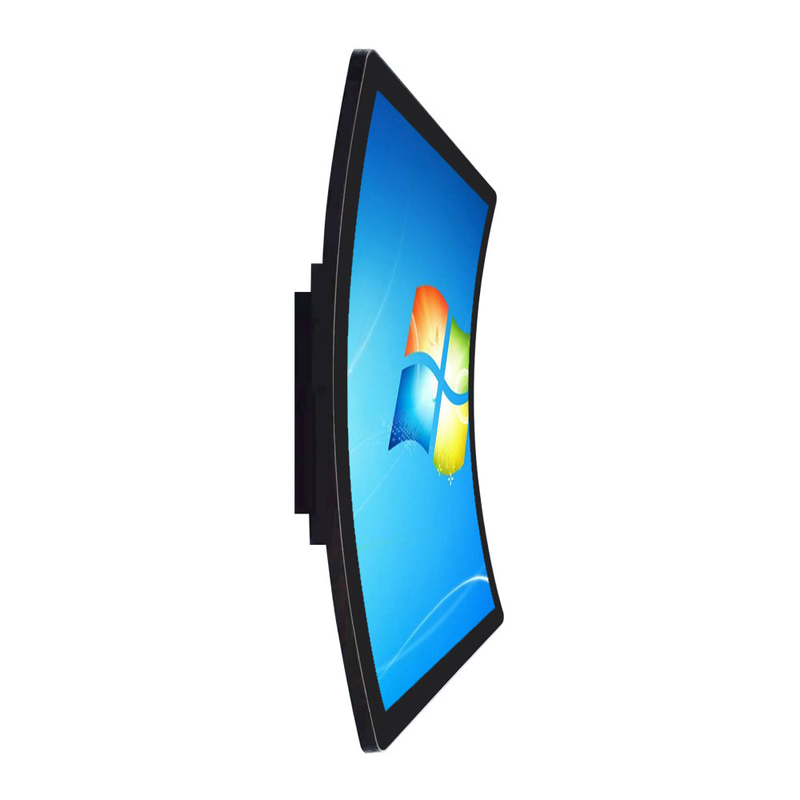

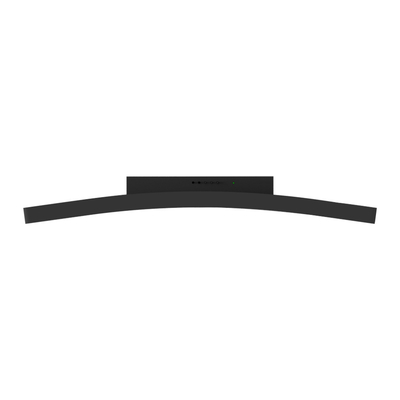

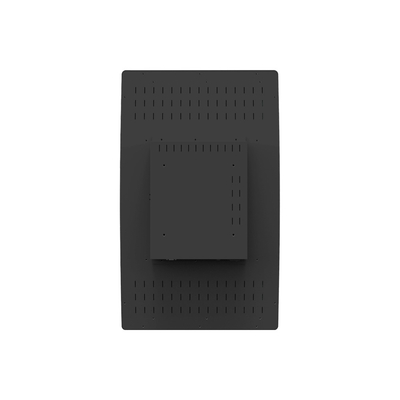

32inch Curved Touch Monitor Pictures
32inch Curved Touch Monitor Drawing
