Product Details:
|
| Touch Type: | Surface Acoustic Wave | Touch Points: | One Touch Point |
|---|---|---|---|
| Glass: | 4mm/6mm | Input Voltage: | 5V |
| Driver: | Plug And Play | RS232: | Optional |
| Customized: | Support | Interface: | USB |
| High Light: | CE Surface Acoustic Wave Touch S,FCC Saw Touch Panel,15" saw touch panel |
||
CJTOUCH SAW touch screen technology is suggested for use in ATMs, Amusement Parks, Banking and Financial Applications, Gaming Environments, Industrial Control Rooms, and KIOSK. It has excellent durability that allows it to continue working if scratched since the overlay for the touch sensor is a solid glass display. SAW offers superior image clarity, resolution, and high light transmission. We also supply SAW touch screen with Dust-proof, Vandal-proot, Water-proof, Anti-glare.It features unrivaled accuracy, reliability, sensitive and drift-free performance, can be touched by fingerer, glove, leather or stylus pen.
Applications
Food processing
Industrial automation
Kiosks
Medical equipment
In-vehicle and transportation
Point-of-sale (POS) terminals
Controller Information
Sensor kits
Each SAW kit includes a sensor and a matching combination controller board for use with either a RS232 or USB cable. This controller board provides the optimal performance for your sensor. It offers superior touch sensitivity, accuracy, and user- friendly operation. A D Metro surface acoustic wave touchscreens are best used with the inbox plug and play driver for Windows 7 or 8. For other OS, the use of Touch Kit software utilities and driver are recommended to maximize the potential of the sensor’s capability. The software allows you to perform a calibration, test your touch device’s functionality in Draw Test, modify options for edge compensation, and more.
Specification of Product
| Technology | Surface Acoustic Wave(SAW) |
| Sizes | 8" to 32" (extending) |
| Controller Interface | USB OR RS232 |
| Resolution | 4096*4096 ,Z-axis 256, not related with the sizes of the touch screen panel |
| Material | Pure glass |
| Positional Accuracy | Standard deviation of error is less than 0.080 in.(2mm) |
| Light Transmission | More than 90% per ASTM |
| Touch Activation Force | 30-60g |
| Durability | Scratch-free; More than 50,000,000 touches in one location without failure. |
| Surface Hardness | Mohs' hardness rating of 7 |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 10%-90% RH at 40°C, non-condensing |
| Operation Altitude | 3800m |
| Accessories | Connector cables, double-sided glue, dust-proof stripes |
| Agency Approval | CE, FCC, RoHS, |
| Controller technical specification: | |
| Sizes(PCB) | 85mm*55mm*10mm |
| Working voltage | 12V±0.5V |
| Working Current | 80mA |
| Maximum Current | 100mA |
| Response time | ≤10ms |
| Operating temperature | -10°C-70°C |
| Operating humidity | 10%-90%RH. |
| Storage temperature | -25°C-80°C |
| Multi-Point Touch | Intelligent discrimination by software |
| Agency Approval | CE, FCC, RoHS |

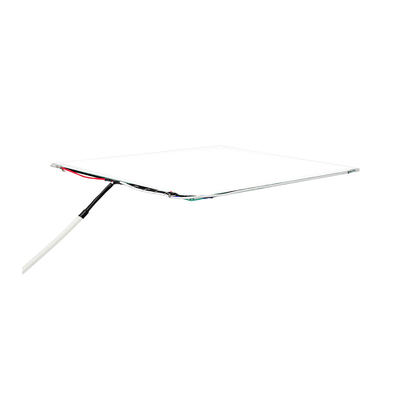

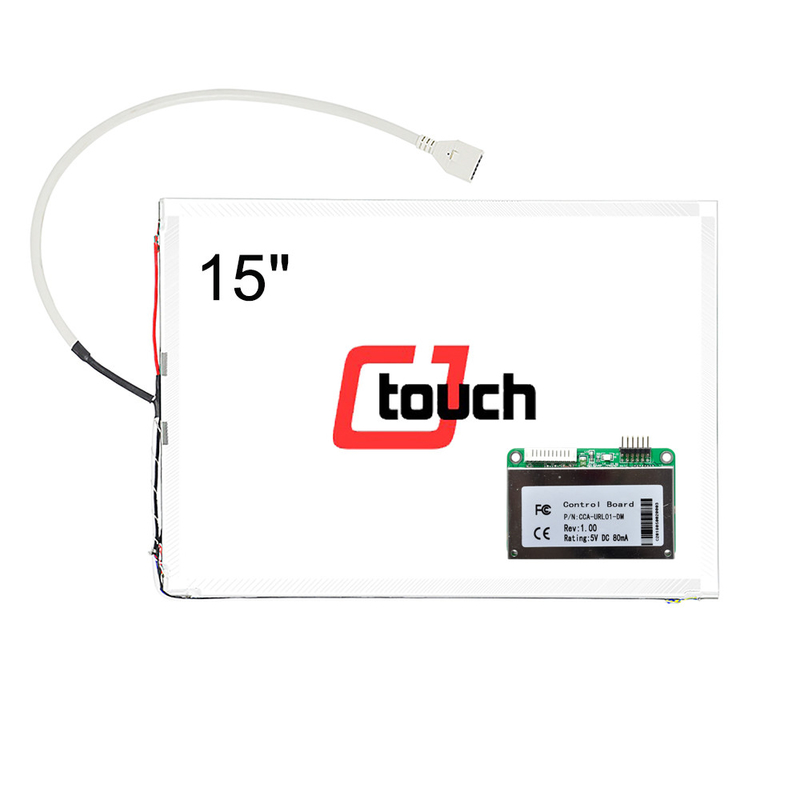

Picture of Product
Technical Drawing
