Product Details:
|
| Type: | 5 Wire Resistive Touch Panel | Interface Type: | USB |
|---|---|---|---|
| Cover Lens: | 1mm | Input Voltage: | 5V |
| Touch Points: | 1 Touch Points | Response: | <15ms |
| Wire: | 5 Wire | Customized: | Support |
| High Light: | DC5V Resistive Touch Screen,Resistive Touch Screen Five Wire,resistive touch screen 5 wire |
||
Customized Resistive Touch Screen:
Product Application:
Do resistive touch screens work with gloves?
Known as resistive touchscreens, these devices support bare and gloved fingers. Since they work using pressure instead of capacitance, you can use a resistive touchscreen device while wearing gloves.
How does a resistive touch screen work?
In simple terms, a Resistive Touch Screen is a touch-sensitive computer display that responds by applying pressure.When contact is made to the surface of the touchscreen, these two sheets are pressed together. Each sheet has horizontal and vertical lines that register the precise location of the touch.
Main Feature
Specification of Product
| 5 Wires Resistive Touch Panel Specification | |
| General Size | 10.4 inch To 22 inch |
| Fit in with | Panel display device |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Active Force | Stylus or Finger or Similar <45g~110g |
| Ball Impact | ø13.0. Steel Ball/9g, Height=30cm, 1 time, no damage [Impact at center area] |
| Durability | >35 million touches |
| Positional Accuracy | <1.5% |
| Optical | |
| Light Transmission | 82% |
| Clear surface | <3% |
| Anti-glare Surface | <4% |
| Anti-Newton | <10% |
| Gloss | 90±20 gloss units tested on a hard-coated front surface Accordance with ASTM D 2457 |
| Electrical | |
| Supply voltage | DC5V |
| Circuit Resistance | X:20~25Ω0, Y:20~250Ω |
| Linearity | X<1.5%, Y<1.5% |
| Response | <15ms |
| Insulation | >20MΩ/25V(DC) |
| Endurance | No acting damage at DC50V/60sec. |
| Resolution | Based on controller resolution of 4096 x 4096 |
| Environmental | |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 20%RH ~ 85%RH, no condensing |
| Storage Temperature | -40°C ~ +80°C |
| Storage Humidity | 10%RH ~ 90%RH, no condensing |
| Waterproof | Not damaged by running water applied to the active area |
| Reliability | |
| Heat Cycle | 70°C /240 hrs |
| Cold Cycle | -40°C /240 hrs |
| Thermal Cycle | -40°C ~7°0C [60 min./cycle] *10 cycles |
| Operationg System | |
| Operation System | Linux/ Dos / Windows ME/95/98 / NT4.0/XP/2000/ 7 /Mac OS |
| Warranty | |
| Touch screen 1 years | |
| Touch Controller 1 years | |

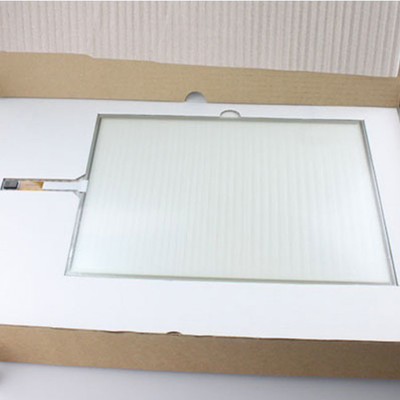

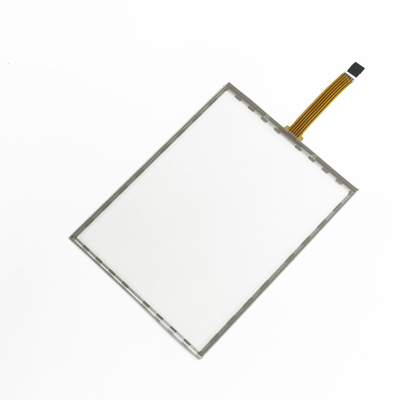

Picture of Product
Technical Drawing
