Product Details:
|
| Type: | Infrared IR Touch Screen Monitor | Products Status: | Stock |
|---|---|---|---|
| Resolution: | 1280×1024 | Touch Point: | 1-10 Points Option |
| Materials: | Plastic And Aluminum | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | Wall Mount Infrared Touch Monitor,Multi Point Infrared Touch Monitor,Waterproof Multi Point Touch Screen |
||
Features
1-10 point real multi touch
VESA Hole for Wall Mount installation
Free for 1 year warranty
Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........
Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset&overall design. Easy to be integrated on POP/POS display/kiosk.
Infrared touch Panel
Water proof, anti dust, high transmittance( at most 100%), quick response, sensitive, it will not be floated as the time and environment's change. We offer 1 year warrenty.
TFT LCD
Perfectly TFT LCD with no dot
Notes
About the frame, we offer customzed design according to your oder.
Packing Details
Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
1~20 working days after deposit received
Delivery method
TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.
Specification:
| General | |
| Model | COT170E-IWF02 |
| Series | Waterproof and Compact |
| Monitor Dimensions | Width: 368mm Height: 306mm Depth: 49.5mm |
| LCD Type | 17”SXGA Color TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 337.920(H)×270.336(V) |
| Resolution | 1280×1024@60Hz |
| Dot Pitch(mm) | 0.264×0.264 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 85°/80° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5s/5s |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Infrared IR touch screen Dual touch |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |

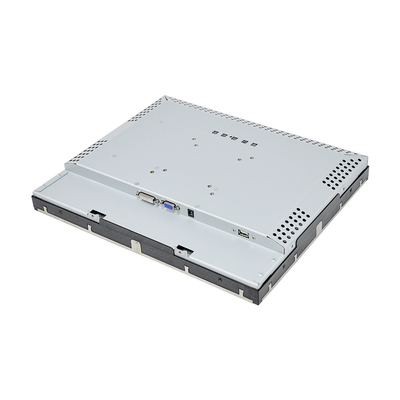

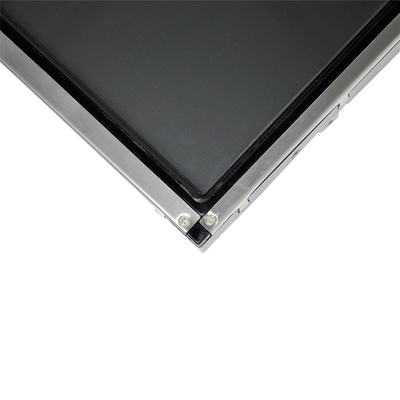

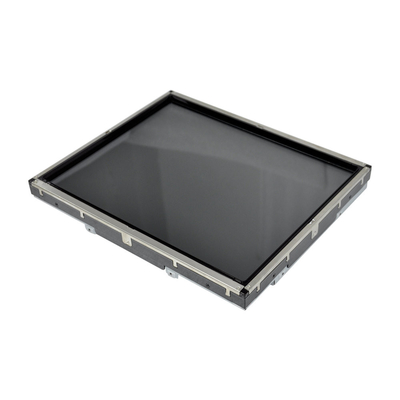

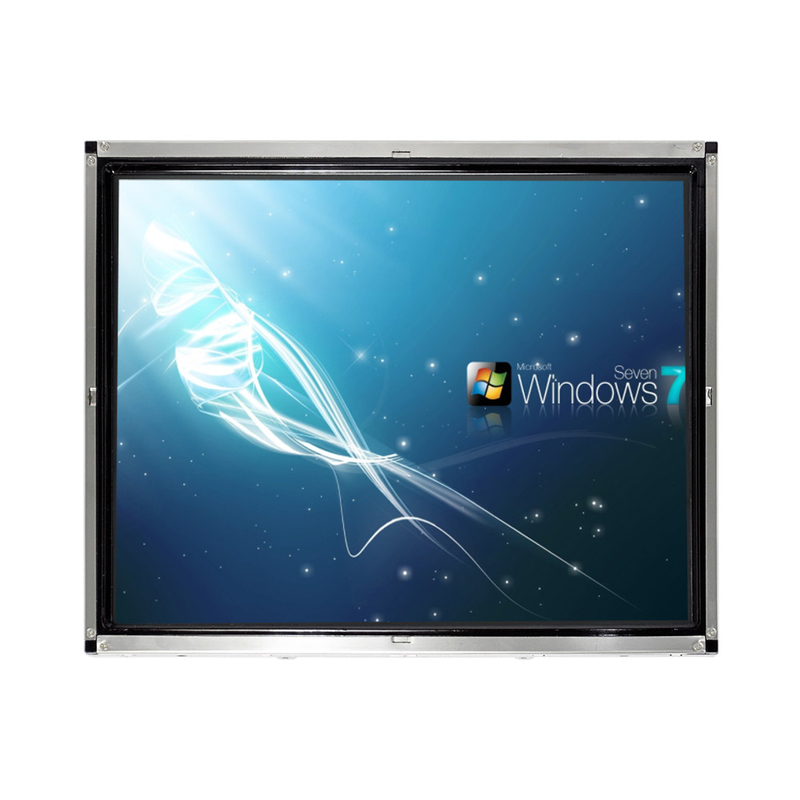

Product Picture
Drawing :
