Product Details:
|
| Active Area(mm): | 597.6mmx336.15mm | Resolution: | 1920(RGB)×1080 (FHD)(60Hz) |
|---|---|---|---|
| Luminance(cd/m2): | 1000 Cd/m² (Typ.) | Response Time(Rising): | 7/5 (Typ.)(Tr/Td) |
| Viewing Angle (v/h): | 89/89/89/89 (Typ.)(CR≥10) | Contrast: | 3000:1 |
| Power Supply: | DC 12V 4A | Warranty: | 1 Year |
| High Light: | 1000units PCAP Touch Monitor,Waterproof PCAP Touch Monitor,10 Points Waterproof Touch Screen Monitor |
||
27 inch 1000units PCAP touch monitor 10 points waterproof capacitive touch gaming monitor power supply DC 12v
High brightness 27 PCAP touch monitor Features:
Dongguan CJTouch Electronic Co., Ltd. is a leading provider of Touchscreen, Touch monitor and All-in-one computers. With advanced, cost-effective touch solutions, CJTouch believes in engaging with customers while providing customized services. (More information : www.cjtouch.com )
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most cutting-edge solutions in the industry.
Surface Acoustic Wave (SAW) touch technology
Infrared touch technology
Projected Infrared Touch technology
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Applications:
We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, health care, education, etc.
High brightness 27 inch Capacitive touch monitor specification :
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 27” a-Si TFT-LCD | |||
| Aspect Ratio | 16:9 | |||
| Active Area | Horizontal | 597.6mm | ||
| Vertical | 336.15mm | |||
| Pixel | Horizontal | 0.31125 | ||
| Vertical | 0.31125 | |||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 3000:1 | Typical | ||
| Brightness | 1000 cd/m² (Typ.) | Typical | ||
| Response Time | 7/5 (Typ.)(Tr/Td) | Typical | ||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Typical | ||
| Video Signal Input | VGA and DVI and HDMI | |||
| Physical Specifications | ||||
| Dimensions | Width | 659.3mm | ||
| Height | 426.9mm | |||
| Depth | 64.3 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | |||
| Touch Interface | USB (Type B) | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Driver Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 30000 Hrs at 25°C | |||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
High brightness 27 inch PCAP touch monitor drawing:

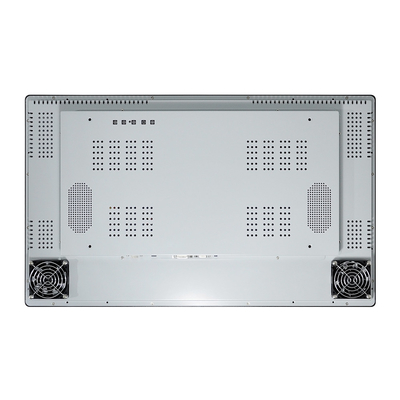

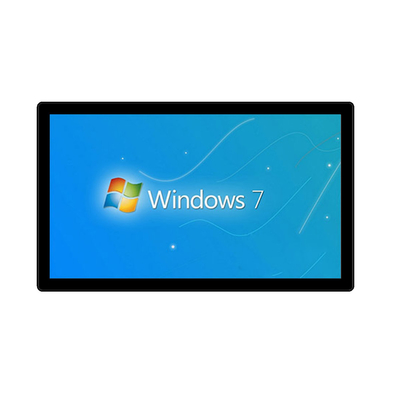

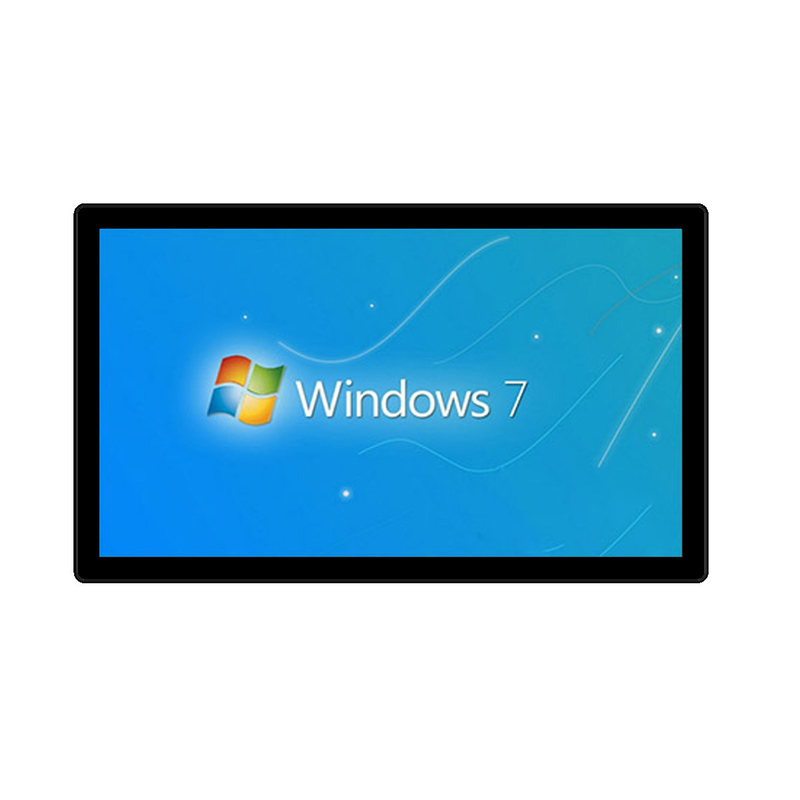

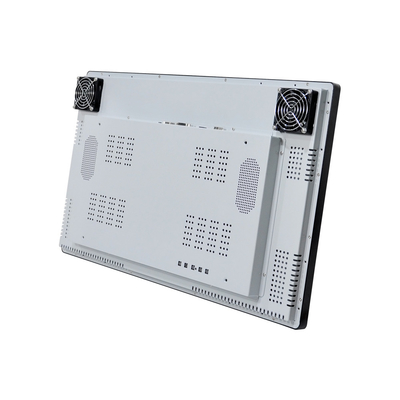

High brightness 27 inch Capacitive display monitor pictures:
