Product Details:
|
| Series: | Projected Capacitive | Resolution: | 1920(RGB)×1080 (FHD)(60Hz) |
|---|---|---|---|
| Viewing Angle (v/h): | 178/178 | Contrast: | 1000:1 |
| Luminance(cd/m2): | 250 | Response Time(Rising): | 14ms |
| Multi Touch: | 10points Touch | Touch System Interface: | USB Interface |
| Warranty: | 1 Year | ||
| High Light: | 21.5inch PCAP Touch Monitor,Cjtouch PCAP Touch Monitor,PCAP Industrial Touchscreen Monitor |
||
Cjtouch 21.5inch PCAP Touch Monitor Industrial Touchscreen Monitor
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.
Single or Multi-touch screens (custom sizes available)
Single or Multi-touch monitors (custom sizes and functions available)
All-in-one computers
Custom services
21.5 inch PCAP touch monitor Features:
Advantage of our projected capacitive touch monitor:
· Industrial Desgin With Excellent Durablity
· Projected capacitive touch Technology Multi Touch 10 Touch Points
· IP65 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price and Fast Delivery
21.5 inch Capacitive touch monitor specification :
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 21.5" a-Si TFT-LCD | |||
| Aspect Ratio | 16:9 | |||
| Active Area | Horizontal | 476.64 mm | ||
| Vertical | 268.11 mm | |||
| Pixel | Horizontal | 0.24825 | ||
| Vertical | 0.24825 | |||
| Panel Resolution | 1920(RGB)×1080 (FHD)(60Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:1 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 14 ms | Typical | ||
| Viewing Angle | Horizontal | 178 | Typical | |
| Vertical | 178 | |||
| Video Signal Input | VGA and DVI and HDMI | |||
| Physical Specifications | ||||
| Dimensions | Width | 515 mm | ||
| Height | 310 mm | |||
| Depth | 44.9mm | |||
| Weight | Net Weight 7 kgs | Shipping Weight 9.5 kgs | ||
| Box Dimensions | Length | 660 mm | ||
| Width | 440 mm | |||
| Height | 180 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Project Capacitive Touch Screen 10 Touch Point | |||
| Touch Interface | USB (Type B) | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Driver Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 30000 Hrs at 25°C | |||
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
21.5 inch PCAP touch monitor drawing:

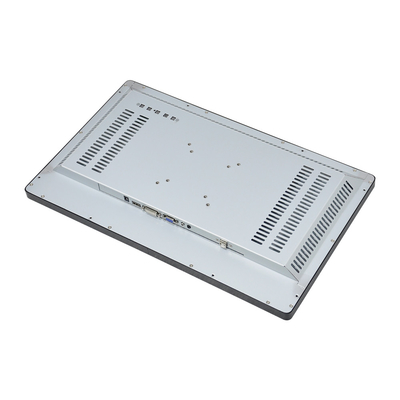

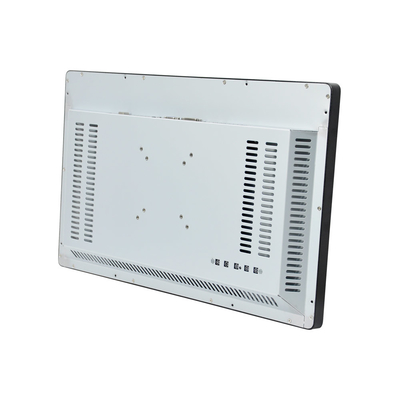

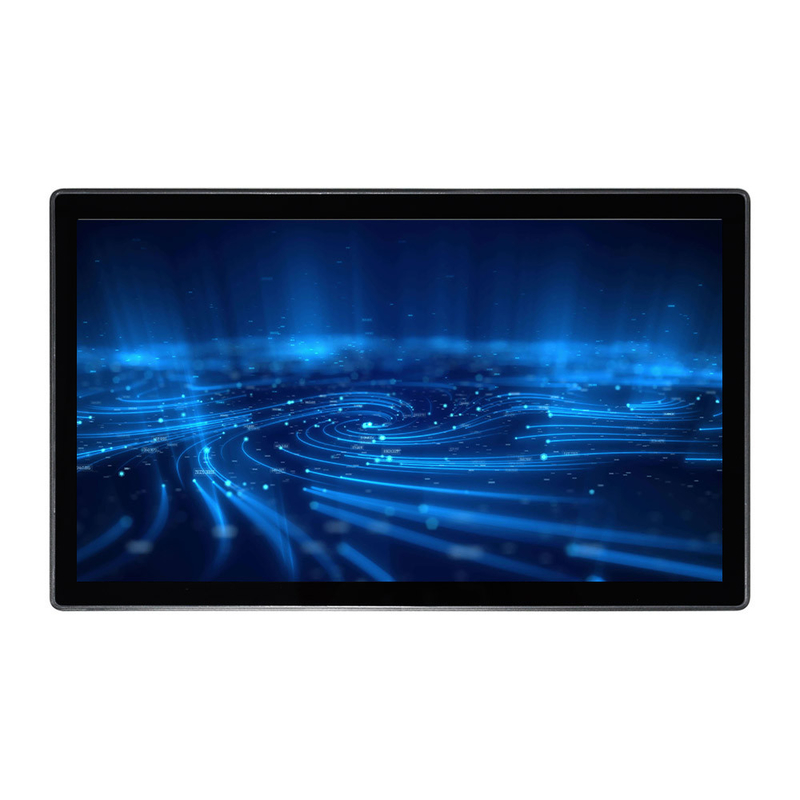

21.5 inch Capacitive display monitor pictures:
