Product Details:
|
| Touch Technology: | Project Capacitive Touch Monitor | Size:: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280×800 @60Hz | Brightness: | 330 |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Nominal Input Voltage VDD: | 3.3V |
| Response Time: | 25msec | Contrast Ratio: | 600:1 |
| OS Supported: | Wins ,Li Nux, And Roid | Warranty: | 1 Year |
| High Light: | Dustproof LCD Touch Screen,10.1 Inch LCD Touch Screen,3.3V Capacitive Touch Screen Monitor |
||
Multi touch 10.1 inch Capacitive PCAP Touch Monitor PCAP lcd display touch screen monitor
CJTOUCH PCAP touch monitors are vandal-proof and waterproof. With the resistance to light interference, it is applicable to harsh environment and widely used in industrial, commercial, atm machine ect. We have over 10 years of combined experience in researching and developing touch-enabled screens and monitors.Two factories with over 200 skilled and qualified employees, including engineers, technical experts and sales representatives.
10.1 inch display monitor features:
-Using a brand new LCD screen
-Long life-span with mauntenence free
-Aluminum alloy enclosure with efficient heat dissipation.
-Ture flat touchscreen desigh
-It can achieve 5/10 points multi touch
-HDMI/VGA/DVI, USB interface. Easy to use
-Tempered glass has waterproof/ vandalproof/ dustproof/ sunlight readable function
-Accept customer customization
-Application: Self service kiosk. Advertising signage, Interactive whiteboard, Vending machine ect.
10.1 inch PCAP touch monitor specification:
| General | |
| Model | COT101-CFK03 |
| Series | Water-proof and Flat screen |
| Monitor Dimensions | Width: 259.8mm Height: 182.5mm Depth: 40mm |
| LCD Type | 10.1” Active matrix TFT-LCD |
| Video Input | VGA H-DMI and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 216.96 (H) x 135.6(V) |
| Resolution | 1280×800 @60Hz |
| Dot Pitch(mm) | 0.1695(H) x 0.1695(V) |
| Nominal Input Voltage | 3.3V |
| Viewing angle (v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 330 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 10000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 5ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
10.1 inch Capacitive touch monitors drawing :

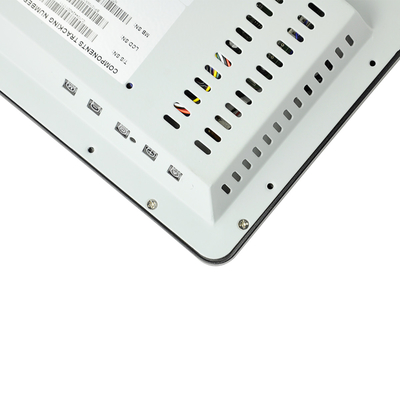

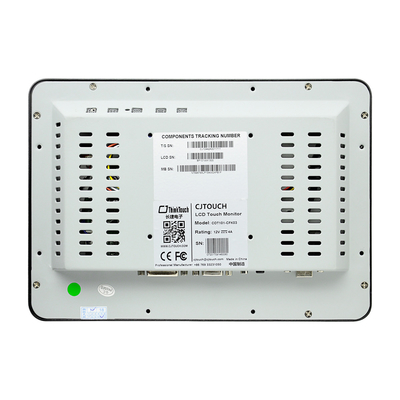

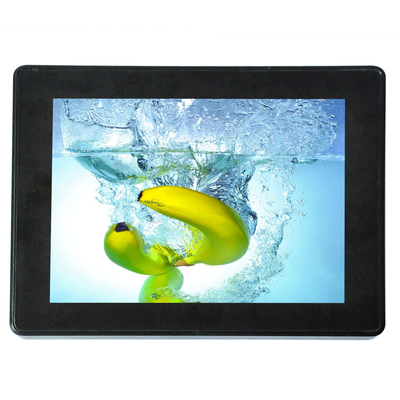

More pictures of 10.1 inch touch monitor:
