Product Details:
|
| Touch Technology: | Project Capacitive Touch Monitor | Size:: | 10.1 Inch |
|---|---|---|---|
| Resolution: | 1280×800 @60Hz | Brightness: | 330 |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) | Nominal Input Voltage VDD: | 3.3V |
| Response Time: | 25msec | Contrast Ratio: | 600:1 |
| OS Supported: | Wins ,Li Nux, And Roid | Warranty: | 1 Year |
| High Light: | Vga PCAP Touch Monitor,Vandalproof PCAP Touch Monitor,Industrial Touch Screen Monitor |
||
10 points touch 10.1 inch industrial PCAP touch monitor vandal-proof display monitors with usb vga dvi interface
10.1 inch display monitor features:
Industrial design with Excellent durability
P65 Touch Screen Surface Water-Proof Sealed
3mm tempered glass with high resistance
Easy to Use:Plug and Works on Wins/Li-nux/An-droid
VESA Mounting and Rear Mounting
12 Months Warranty
Custom accepted
Perfect Solutions For Use In Public
Factory Competitive Price and Fast Delivery
Applicable to harsh environment and widely used in industrial, commercial, atm machine ect.
CJTOUCH PCAP touch monitors are vandal-proof and waterproof. With the resistance to light interference, it is applicable to harsh environment and widely used in industrial, commercial, atm machine ect. We have over 10 years of combined experience in researching and developing touch-enabled screens and monitors.Two factories with over 200 skilled and qualified employees, including engineers, technical experts and sales representatives.
Our service strength:
Your any inquiry or question will be replied within 24hrs.
Custom are well welcomed,regarding the interfaces,functions,images,structures,etc.We have professional engineer team to realize your idea.
You can find the right product you want,whatever the most competitive price or Highest quality!
10.1 inch PCAP touch monitor specification:
| General | |
| Model | COT101-CFK02 |
| Series | Water-proof and Flat screen |
| Monitor Dimensions | Width: 259.8mm Height: 182.5mm Depth: 40mm |
| LCD Type | 10.1” Active matrix TFT-LCD |
| Video Input | VGA and DVI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 216.96 (H) x 135.6(V) |
| Resolution | 1280×800 @60Hz |
| Dot Pitch(mm) | 0.1695(H) x 0.1695(V) |
| Nominal Input Voltage | 3.3V |
| Viewing angle (v/h) | 80/80/80/80 (Typ.)(CR≥10) |
| Contrast | 600:1 |
| Luminance(cd/m2) | 330 |
| Response Time(Rising) | 25msec |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 10000(Min) |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 5ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
10.1 inch Capacitive touch monitors drawing :

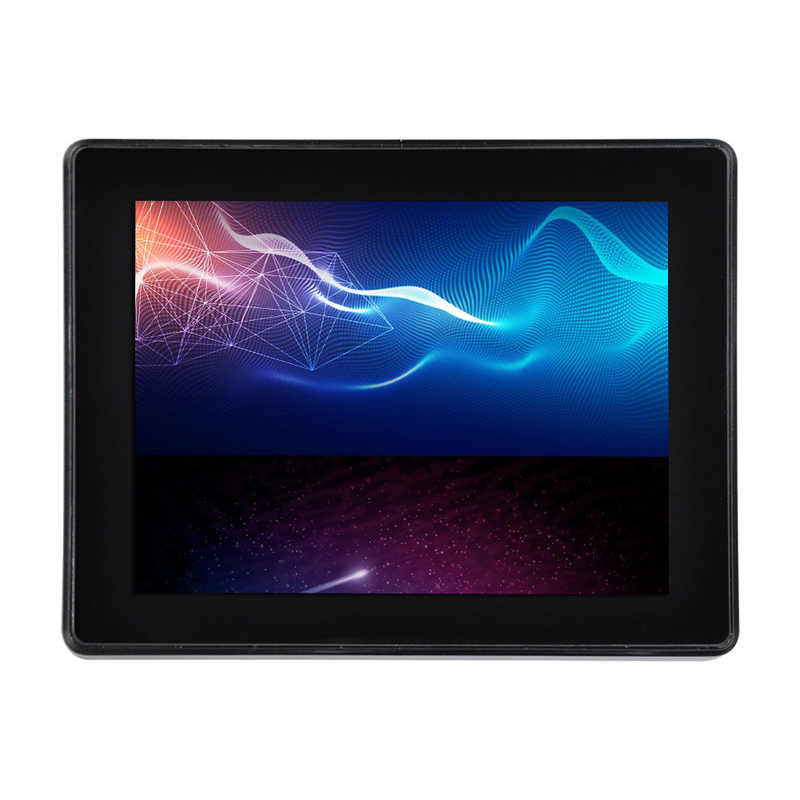

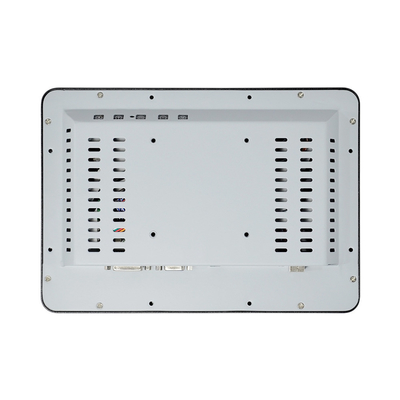

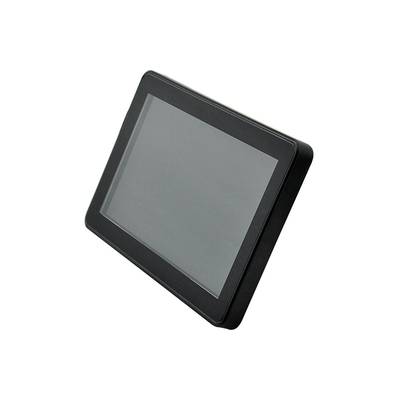

More pictures of 10.1 inch touch monitor:
