Product Details:
|
| Series: | P-Cap Capacitive | Active Area(mm): | 376.320(H)×301.060(V) |
|---|---|---|---|
| Resolution: | 1280×1024@75Hz | Viewing Angle (v/h): | 80°/85° |
| Contrast: | 1000:1 | Luminance(cd/m2): | 250 |
| Response Time(Rising): | 3.6s/1.4s | Multi Touch: | 10points Touch |
| Touch System Interface: | USB Interface | Warranty: | 1 Year |
| High Light: | 19 " PCap Capacitive Touchscreen,3.6s Capacitive Touchscreen,3.6s LCD Touch Monitor |
||
19 " P Cap Capacitive Touchscreen LCD Touch Monitor With Mount Bracket
Experience:
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help seamlessly integrate our products into your total solution.
Over 10 years of combined experience in researching and developing touch-enabled screens and monitors.
Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
19 inch PCAP touch monitor Features:
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· High Light Transmission Clear Glass
· Industrial Desgin With Excellent Durablity
· Factory Competitive Price & Fast Delivery
· PCAP Technology Multi Touch 10 Touch Points
· IP65 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
19 inch Capacitive touch monitor specification :
| General | |
| Model | COT190-CFF03 |
| Series | Water-proof and Flat Screen |
| LCD Type | 19" Active matrix TFT-LCD |
| Video Input | VGA, DVI and HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | 1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 376.320(H)×301.060(V) |
| Resolution | 1280×1024@75Hz |
| Dot Pitch(mm) | 0.294×0.294 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 80°/85° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising) | 3.6s/1.4s |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Projected Capacitive touch screen |
| Multi touch | 10points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0~50°C |
| Storage Temp. | -20~60°C |
| Operating RH: | 20%~80% |
| Storage RH: | 10%~90% |
Components:
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
19 inch PCAP touch monitor drawing:

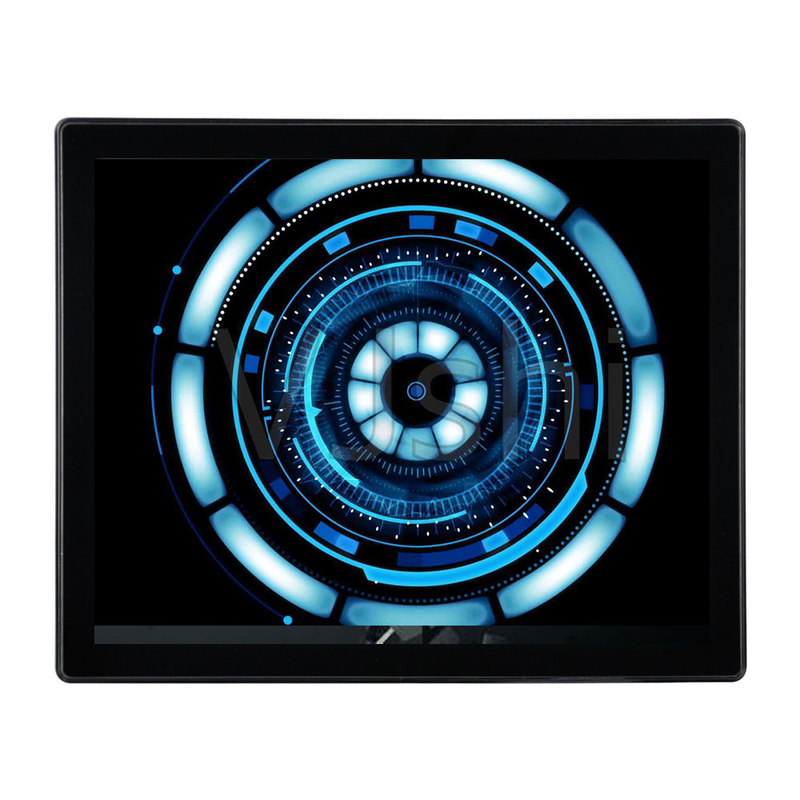

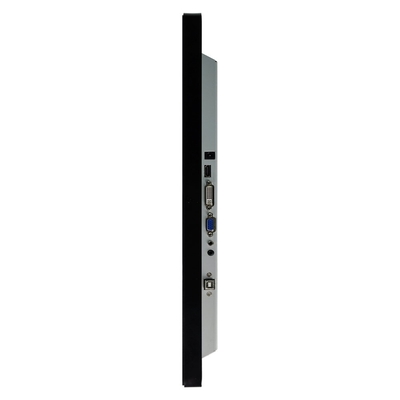

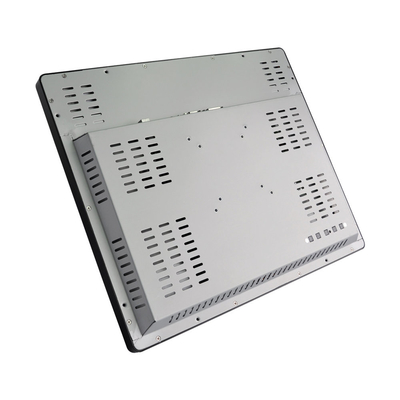

19 inch Capacitive display monitor pictures:
