Product Details:
|
| Touch Screen: | IR Touch (Support Multi Touch),Infrared Touch Screen | Material: | Metal Case+ Infrared Touch Panel |
|---|---|---|---|
| Brightness: | 250cd/m2 | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Power Supply: | DC 12V (AC 100-240V 50/60Hz) | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | Vandalproof Infrared Touch Monitor,Anti Glare Infrared Touch Monitor,Anti Glare ir frame touch screen |
||
Functionalities:
1. Stable operation
2. Accurate Touch Response
3. Durable
4. Scratch-resistant glass sur face
5. Anti-glare
6. Vandal-Proof (Tempered glass
7.superior Image Clarity resolution
Our advantage
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic
team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.
Specification:
| Model | COT156-IPK03 |
| Series | Dust-proof and Compact |
| Monitor Dimensions | Width:392mm Height: 245mm Depth:39.7mm |
| Weight(N.W/G.W) | 6Kg /7Kg (Approx.) |
| LCD Type | 15.6”LCD With an LED backlight |
| Video Input | VGA and DVI and HDMI |
| Type | Cjtouch IR touch screen Daul touch |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| Active Area(mm) | 344.16(H)×193.59(V) |
| Resolution | 1920×1080 |
| Dot Pitch(mm) | 0.17925 x 0.17925 |
| Nominal Input Voltage VDD | +5V(Typ) |
| Viewing angle (v/h) | 70°/60° |
| Contrast | 400:1 |
| Luminance(cd/m2) | 300 |
| Response Time(Rising/Falling) | 1.5s/3.5s |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Output | DC12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 30000 hr at 25°C |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 3 years for IR touch screen; 1 year for LCD |

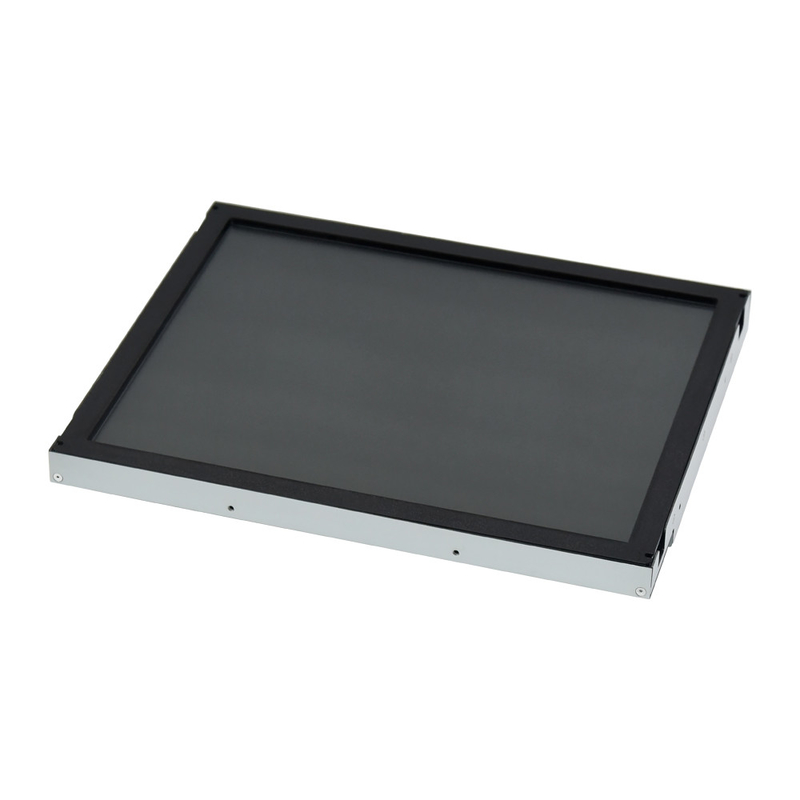

Product Picture
Drawing :
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the PCAP Touch Monitor and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support PCAP Touch Monitor .Medium sized displays generally support PCAP Touch Monitor Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
