Product Details:
|
| Type: | Industrial Infrared Touch Screen Monitor | Resolution: | 1366×768 |
|---|---|---|---|
| Touch Point: | 1-10 Points Option | Products Status: | Stock |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | 18.5inch Infrared Frame Touch Screen,8ms Infrared Frame Touch Screen,8ms open frame lcd monitor |
||
Features
1.1-10 point real multi touch
2.VESA Hole for Wall Mount installation
3.Free for 1 year warranty
4.Optional size: from 10.4'' to 110"
5.Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
6.This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset and overall design. Easy to be integrated on POP/POS display/kiosk.
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.
Specification:
|
General |
|
|
Model |
COT185-IPK02-BT |
|
Monitor Dimensions |
Width: 451mm Height: 272mm Depth: 54.9mm |
|
Weight(N.W/G.W) |
6Kg / 9Kg (Approx.) |
|
LCD Type |
18.5”SXGA Color TFT-LCD |
|
Video Input |
VGA and DVI |
|
OSD controls |
Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
|
Power Supply |
Type: External brick |
|
Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
|
LCD Specification |
|
|
Active Area(mm) |
409.8(H)×230.4(V) |
|
Resolution |
1366*768 @75Hz |
|
Dot Pitch(mm) |
0.3×0.3 |
|
Nominal Input Voltage VDD |
+5.0V(Typ) |
|
Viewing angle (v/h) |
80°/85° |
|
Contrast |
1000:1 |
|
Luminance(cd/m2) |
250 |
|
Response Time(Rising/Falling) |
3.6s/1.4s |
|
Support Color |
16.7M colors |
|
Backlight MTBF(hr) |
30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch IR touch screen with dual touch |
|
Resolution |
4096*4096 |
|
Light Transmission |
92% |
|
Touch Life Cycle |
50 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /4A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
|
Operating Temp. |
0～50°C |
|
Storage Temp. |
-20～60°C |
|
Operating RH: |
20%～80% |
|
Storage RH: |
10%～90% |

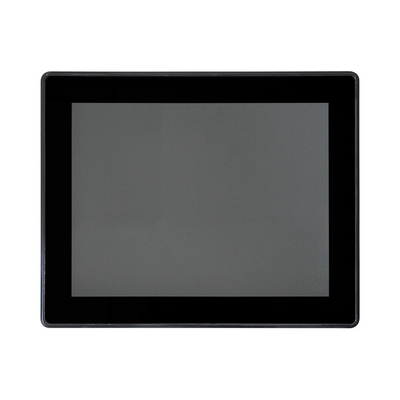

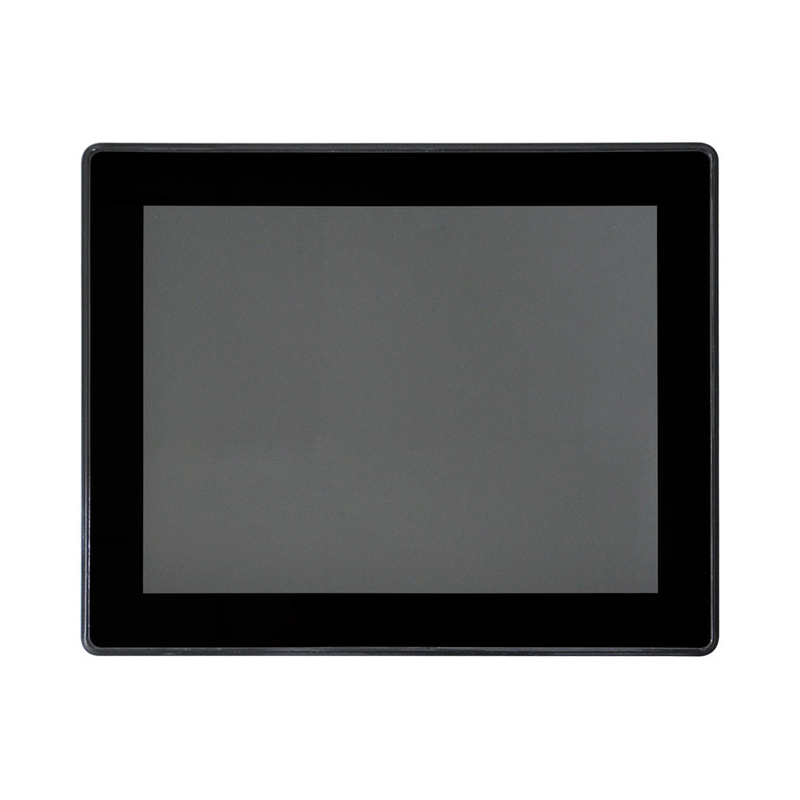

Product Picture
Drawing :
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the PCAP Touch Monitor and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support PCAP Touch Monitor .Medium sized displays generally support PCAP Touch Monitor Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
