Product Details:
|
| Touch Screen: | IR Touch (Support Multi Touch),infrared Touch Monitor,Infrared Touch Screen | Type: | Infrared,touch Screen Monitor |
|---|---|---|---|
| Size: | 19 Inch | Touch Point: | 4 Points Touch |
| Brightness: | 250cd/m2 | Resolution: | 1280*1024 |
| High Light: | 250cd/M2 Infrared Touch Monitor,Dustproof Infrared Touch Monitor,Dustproof ir touch screen monitor |
||
Wall Mount 250cd/M2 Infrared Touch Monitor Dustproof Sunlight Readable
19 inch high definition Interface infrared touchscreen IR openframe touch screen LCD monitor
Infrared Touch screen monitor Feature:
Specification:
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 19” SXGA Color TFT-LCD | |||
| Aspect Ratio | 5:04 | |||
| Active Area | Horizontal | 376.32 mm | ||
| Vertical | 301.06 mm | |||
| Pixel | Horizontal | 0.294 | ||
| Vertical | 0.294 | |||
| Panel Resolution | 1280×1024 (60 Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:01:00 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 3.6 ms | Typical | ||
| Viewing Angle | Horizontal | 170 | Typical | |
| Vertical | 160 | |||
| Video Signal Input | VGA and DVI and HDMI optional | |||
| Physical Specifications | ||||
| Dimensions | Width | 417.6 mm | ||
| Height | 342.5 mm | |||
| Depth | 42.5 mm | |||
| Weight | Net Weight 7 kgs | Shipping Weight 9 kgs | ||
| Box Dimensions | Length | 500 mm | ||
| Width | 450 mm | |||
| Height | 200 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Infrared 4 touch point | |||
| Touch Interface | USB (Type B) | |||
| Controller Model Number | HID plug and play | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Calibration Tool Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 50000 Hrs at 25°C | |||
Advantages of PCAP Touch Monitor
1. System: Support dual system, Andriod system and Window system. (OPS interface box needs to be purchased separately, specifications are I3/I5/I7) Additional quotation is required.
2. Video conference: It can support window download (Zoom) Andriod system video conference. (Download by yourself under Windows, Zoom can be used by Andriod overseas, and the brand factory can negotiate authorization (the factory is responsible for testing and installation)
3. Software: Built-in Andriod writing software (with writing software on the UI interface), designed by the factory (own copyright).
4. IR Touch: High-precision infrared touch frame (IR technology developed by the factory-its own patent, supports 20-point writing, the minimum recognition pen tip is 1.6mm, and the accuracy of more than 90% of the haunt area is 1mm (writing accuracy range).

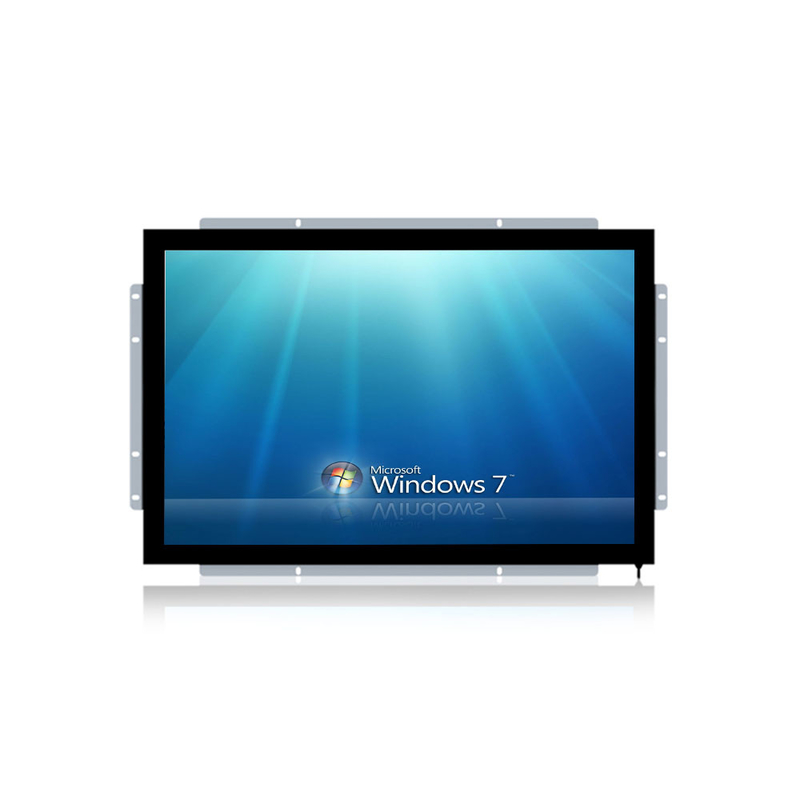

Product Picture
Drawing :
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the PCAP Touch Monitor and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support PCAP Touch Monitor .Medium sized displays generally support PCAP Touch Monitor Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
