Product Details:
|
| Type: | Outdoor Lcd Advertising Monitor | Max Resolution: | 4K |
|---|---|---|---|
| Viewing Angle: | 178 | Contrast Ratio: | 4000 : 1 |
| Brightness: | 2000 Nits | Protection Level: | IP55 , IP65 |
| Touch Support: | No Touch Or Touch Foil | Appearance Color: | Silver Gray Or Optional Other Color |
| Working Power Consumption: | ≤1400W | Machine Weight: | ≤300KG |
| High Light: | Outdoor LCD Advertising Display IP55,86 Inch Outdoor LCD Advertising Display,IP65 lcd screen advertising outdoor |
||
Main Features of Outdoor lcd advertising display
Specification of Outdoor lcd advertising display
| Structure | ||||||
| Installation method | Floor standing | |||||
| Appearance size | 2500*1370*230mm | |||||
| Appearance color | Silver or optional | |||||
| Material & Corrosion protection | 1.5~2MM galvanized sheet, the surface is sprayed with outdoor powder | |||||
| Glass | 8mm tempered glass | |||||
| Protection level | IP55/ IP65 (Optional) | |||||
| Machine weight | ≤300KG | |||||
| LCD screen | ||||||
| Panel Size | 86 inch LG | |||||
| Panel type | LCD Panel | |||||
| Display ratio | 16:9 | |||||
| Display size | 1895*1066 mm | |||||
| Viewing angle | 178 | |||||
| Response time | 6ms | |||||
| Resolution | 3840(RGB)×2160(UHD) | |||||
| Contrast ratio | 4000:1 | |||||
| Brightness | 2000 nits | |||||
| Color | 16.7 M | |||||
| Service life | More than 50000 hours | |||||
| Touch(Optional configuration) | ||||||
| Player | ||||||
| Operation system(optional) | Android 7.1 | |||||
| Main Board | Android RK3288 | |||||
| Memory | 4G | |||||
| Flash | 16G( support 128G) | |||||
| Main frequency | 1.8GHz | |||||
| Network support | Ethernet,WiFi | |||||
| 3G/4G module function (optional, default none) | ||||||
| Bluetooth | Support onboard Bluetooth function (optional, default none) | |||||
| File system | ||||||
| Languages | Simplified Chinese, traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, polish, Czech and other language | |||||
| Basic interface (Internal interface) | ||||||
| USB2.0 Interface | ×2 | VGA output | ×1 | |||
| HDMI output (optional) | ×1 | MicroPhone | ×1 | |||
| RTC real time clock | 1 clock battery holder | AV input | ×4 | |||
| Audio output | Power amplifier output, can directly drive 2*10W/8Ω speakers | |||||
| SD card | 1 standard SD card slot, maximum support 32GB | |||||
| Working environment | ||||||
| Temperature control | Air cooling(air conditioning optional, cost extra) | |||||
| Operating temperature | -30°C - +50°C(air cooling) | |||||
| Working humidity | 5% to 90% | |||||
| Storage temperature | -20°C to 60°C | |||||
| Storage humidity | 10%～85% | |||||
| Power | ||||||
| Input voltage | AC220V | |||||
| Normal working power consumption | ≤1400W | |||||
| Standby power consumption | ＜30W | |||||
| Certificate | CE, FCC | |||||

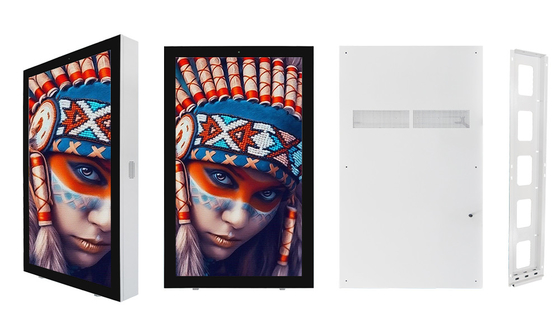

Drawing of Outdoor lcd advertising display
