Product Details:
|
| Product: | Touch Screen All In One Panel Pc | Touch Type: | PCAP Touch Panel |
|---|---|---|---|
| Resolution: | 1920*1080 | Brightness: | 250 Units |
| CPU Optional: | RK3288 / RK3399 / I3 / I5 / I7 CPU | RAM Optiaonal: | 2- 32GB |
| SSD: | 32- 512GB | Interface: | VGA/H-DMI /USB /COM / RJ45 |
| High Light: | 392.85mm AIO Touch PC,Anti Vandal AIO Touch PC,Touchscreen PC All In One |
||
Specifications:
| General Information | |
| Model | CCT320-CFK-QM3100-I5 |
| CPU | J1900/ I3/ I5 /I7 / RK3288 / RK3399 |
| RAM | From 2GB to 32GB Optional |
| SSD | From 32GB to 512GBOptional |
| Interface | RJ45, HD-MI, VGA, USB, COM |
| Power supply | Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Mount Interface |
1)VESA 200*200mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
698.4× 392.85 (H×V) mm |
| Resolution |
1920 X 1080@60Hz |
| Pixel Pitch(mm) |
0.36375×0.36375 mm |
| Nominal input voltage VDD |
+12V |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
1100:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
10 (Typ.)(G to G) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch capacitive touchscreen |
|
Multi touch |
10 points multi touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Our product range:
♦ IR touch screen/Frame
♦ SAW touch screen
♦ PCAP touch screen panel
♦ 4wire/5wire resistive touch screen
♦ PCAP/NANO touch foil/film
♦ PCAP flat screen touch monitor
♦ SAW touch screen monitor
♦ IR Open frame touch display
♦ Desktop touch monitor
♦ Desktop all in one touch PC
♦ PCAP all in one touch computer
♦ Bar lcd panel
♦ High brightness advertising player/advertising machine
♦ Curved touch display
♦ Full bonding TFT lcd panel with touch screens
♦ Touch monitor with mirror
♦ OEM/ODM/Customization

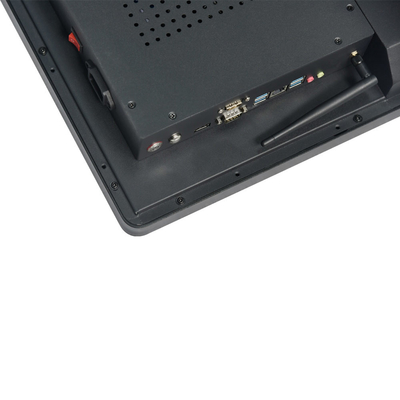

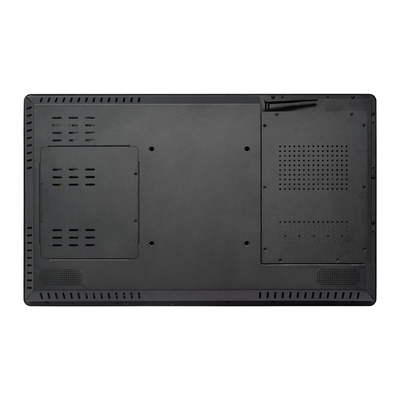

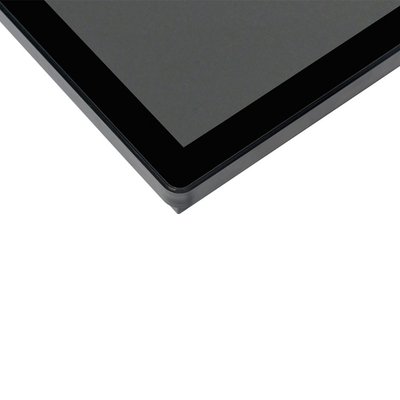

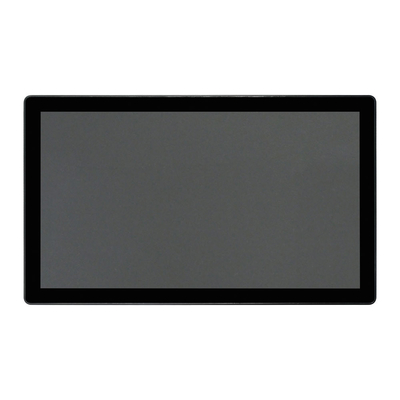

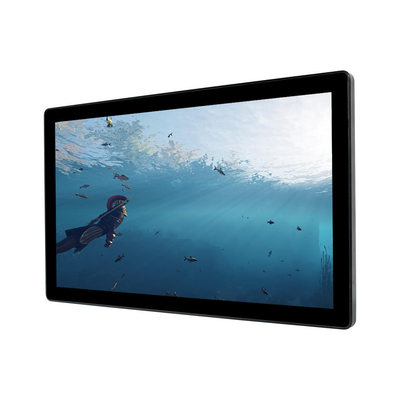

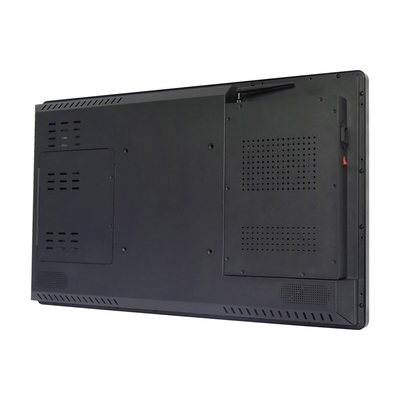

Pictures:
