Product Details:
|
Type: | Infrared Touch Tesching Board | System: | Android + Optional Windows/Linux |
---|---|---|---|
Visual Area: | 2158.85×1214.35mm | Resolution: | 1920*1080/2160*3840 |
Touch: | 20 Points | Language: | Optional Multi Languages |
Input Voltage: | Alternating Current:100~240v 50/60HZ | Power(w): | ≤450W |
High Light: | 2158×1214mm Interactive Boards For Education,20P Interactive Boards For Education,98 Inch smartboards for education |
Detail Features of Touch Screen Teaching Board
Detail Specifications of Touch Screen Teaching Board
android |
CPU |
Quad-core ARM1.7,1.8GHz |
RAM |
2G/4G |
|
Storage |
8GB/16GB/32GB/64G |
|
HDMI Interface |
HDMI*1 |
|
TF Card Interface |
TF Card*1,(Supports a maximum expansion of 64GB) |
|
USB Interface |
USB*2 (USB Host*1,SUB OTG*1) |
|
RJ-45 Interface |
Network Cable Input*1 |
|
Headphone Jack |
3.5mm stereo headset output*1 |
|
windows |
CPU |
Intel core I3/I5/I7 |
Memory |
4G/8G DDR3 |
|
Hard Disk |
128G/256G/512G SSD |
|
OS |
Windows 7/Windows 10 |
|
Cable Interface |
1* RTL8111E (Gigabit network card chip, supporting network wake up) |
|
VGA Interface |
1*VGA DB15 |
|
HDMI Interface |
1*HDMI 1.4 |
|
USB Interface |
2*USB3.0 2*USB2.0 |
|
Audio Interface |
1*LIN-OUT 1*MIC-IN |
|
Touch |
Identification principle |
Infrared recognition |
Multi touch |
20 points touch |
|
Anti-light interference |
The light shines on the screen at various angles and can be used normally |
|
Writing style |
Finger, pen (any diameter>6mm opaque object) |
|
Touch accuracy |
More than 95% of the touch area is ± 2mm |
|
Communication mode |
Full speed USB2.0 / 3.0 |
|
Surface hardness of writing screen |
Physical toughened Leung's class 7 explosion proof |
|
Touch life |
The service life is more than 80000 hours |
Display |
LCD panel |
98"LCD HD screen |
Resolution |
1920*1080/2160*3840(2K/4K option) |
|
Visual area |
2158.85×1214.35mm |
|
Viewing angle |
165/165/150/150(L/R/U/D) |
|
Display mode |
IPS |
|
Contrast ratio |
1000:1 |
|
Brightness |
350cdm |
|
Screen scale |
16:09 |
|
Netmork |
WiFi |
Support WIFI-2.4G (Extensible BT-4.0) |
Ethernet |
10M/100M Network port |
|
Bluetooth |
Bluetooth 4.0 |
|
Mediaplay |
Video format |
Support RM/RMVB,MKV,TS,FLV,AVI,VOB,MOV,WMV,MP4 etc. |
Audio format |
MP3/WMA/AAC etc. |
|
Picture format |
Support BMP,JPEG,PNG,GIF ect. |
|
Other |
Loudspeaker |
8 ohms 10 watts |
OSD language |
Multilingual OSD operations in English and Chinese |
|
Input voltage |
Alternating current:100~240v 50/60HZ |
|
Power |
≤450W |
|
Use environment |
Operating stability 0-50 degrees/relative humidity ≤80% /storage humidity -10~ + 60 degrees C |
|
Authentication |
CE/FCC/RoHS |
|
Accessories |
Instruction manual |
Standard |
Power cord |
Gb power cord 1.8 meters |

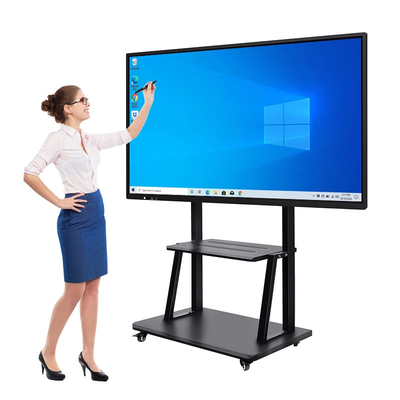

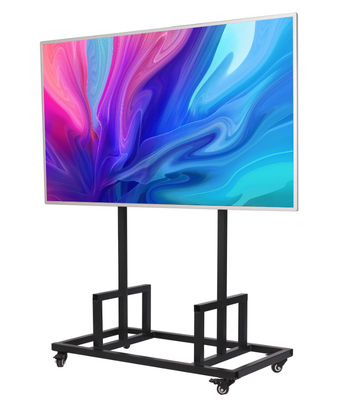

Pictures of Touch Screen Teaching Board
Drawings of Touch Screen Teaching Board
