Product Details:
|
| Product Name: | 1500 R Curved Touch Screen Gaming Monitor | Operating System: | Windows XP Windows7 Windows8 Winodws10 |
|---|---|---|---|
| Resolution: | 3840×2160 | Touch Points: | 10 Points Projected Capacitive Touch Screen |
| Video Port: | HDMI | Panel Type: | IPS |
| Brightness: | 300nits | Contrast Degree: | 1300:1 |
| High Light: | 43 Inch Curved Monitor Touchscreen,FCC Curved Monitor Touchscreen,FCC curved touch screen display |
||
43 inch curved touch screen monitor
Curved touch screen monitor display is a professional touch display product designed for games, high-end places, gambling, self-service terminals and other equipment, such as, self-service terminals, game consoles, gambling machines and so on. The utility model has the advantages of compact structure, convenient installation and high cost performance. All products adopt multi-point projection capacitance touch technology, which has the characteristics of fast touch response, high precision and strong anti-interference.
43inch Curved Touch Monitor Features
Curved multi-touch screen capability opens the door to next generation of casino game hardware.
Curved display design and Led-framed light compelling user experience
4K Ultra HD 3840 x 2180 resolution---Outstanding detail that's ideal for watching high-resolution videos and playing games with settings maxed out.
6ms response time-----Delivers solid performance for precise gaming and video work.
Ultra Wide-Color wider range of colors for a vivid picture
VGA, Display port, HDMI interface
Totally unique industrial design
Enhanced solution for casino slot machines, gaming, signage, kiosksand other public information terminals
Portrait or Landscape.
Custom bending and monitor configuration available
Application area
Casino Slot Machines
Information kiosks
Digital Advertising
Way-finders and Digital Assistants
Medical
Gaming
43inch Curved Touch Monitor Specifications
| Product Name | 43 '' 4K J-shaped surface touch display | |||||
| Product Model | 43’’ | |||||
| LCD Panel | Active area | 963.6(H)×557.9(V)mm | ||||
| Display ratio | 16:09 | |||||
| Back-light | LED | |||||
| Life time | More than 50000 hours | |||||
| Resolution | 3840×2160 | |||||
| Luminance | 300cd/m2 | |||||
| Contrast ratio | 1300:01:00 | |||||
| Response time | 8ms | |||||
| Dot Pitch | 0.2451(H)×0.2451(V)mm | |||||
| Colour | 16.7M | |||||
| Viewing angle | H/V:178°/178° | |||||
| PCAP Touch Screen | Touch type | G +F+F capacitive touch technology | ||||
| Response time | <5ms | |||||
| Multi touch | 10 Point touch | |||||
| Recognition area | >1.5mm | |||||
| Scan frequency | 200HZ | |||||
| Scanning accuracy | 4096 x 4096 | |||||
| Interface | Full speed USB2.0,USB3.0 | |||||
| Touch time | More than 50 million yuan | |||||
| Working current | 180Ma/DC+5V+/-5% | |||||
| Anti-light | Normal when the strong light changes | |||||
| Output type | Coordinate output | |||||
| Surface hardness | Thermal tempering,Mohs grade 7 | |||||
| Operate system | Android/Windows | |||||
| Drive | Free drive, plug and play | |||||
| Outside interface | HDMI1.4 Input | 1 | Headphone output | 1 | Touch USB | 1 |
| Headphone output | 1 | AC power | 1 | RS232 | 1 | |
| Power Supply | Working voltage | AC220V 50/60Hz | ||||
| Max. power | 135W | |||||
| Standby power | 0.8W | |||||
| Use environment | Temperature | 0～40°C | ||||
| Humidity | 10～90%RH No condensation | |||||
| Appearance information | Product size | 1020.31*618*62.8mm | ||||
| Carton size | 1100*705*245mm | |||||
| Net weight | 23.95KG | |||||
| Gross weight | 26.8KG | |||||
| Accessories | power line*1,HDMI Cable*1,TUSB Cable*1 Tele controller *1 | |||||

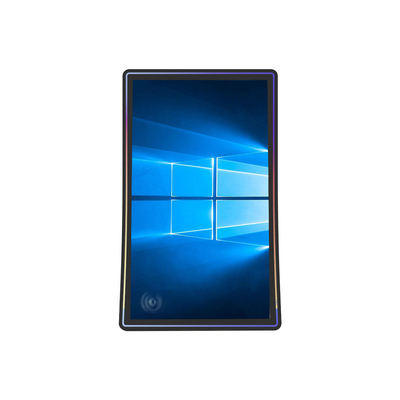

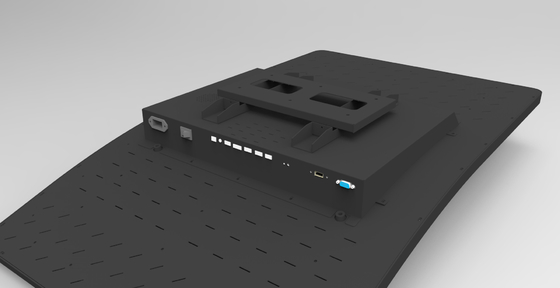

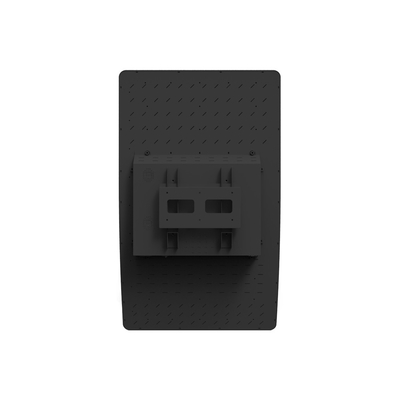

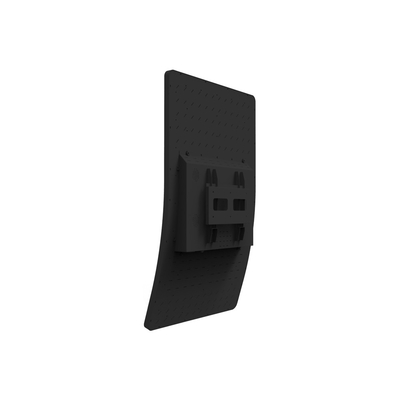

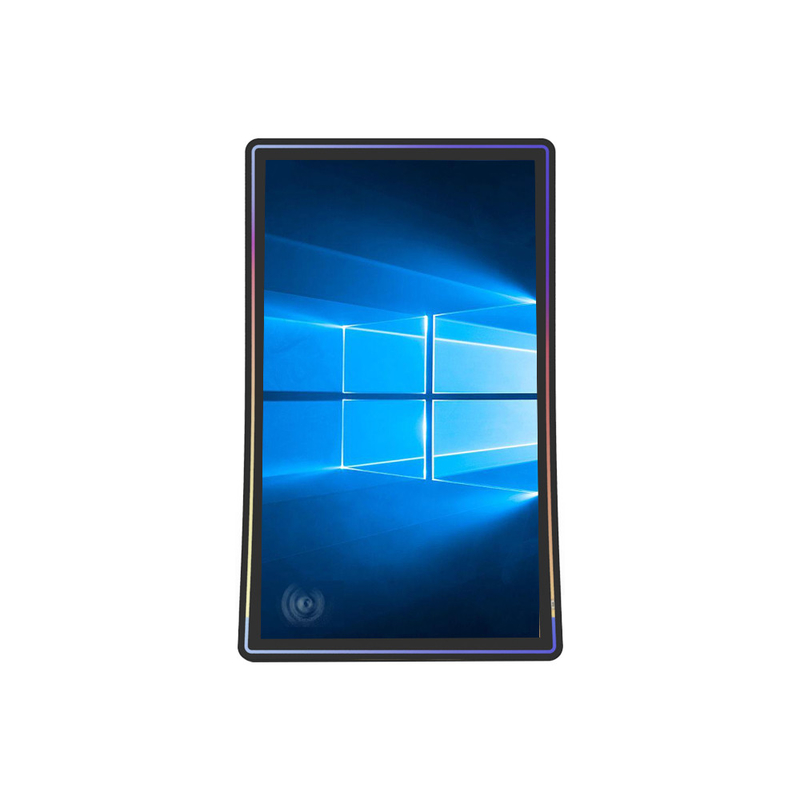

43inch Curved Touch Monitor Pictures
43inch Curved Touch Monitor Drawing
