Product Details:
|
| Product Name: | TFT LCD Panel | Size: | 15" |
|---|---|---|---|
| Digital LCD Module Type: | Metering Module | Response Time: | 16ms |
| Outline Depth: | 9.6 (Max.) Mm | Surface: | Anti-Glare |
| View Angle: | 85/85/85/85 (Typ.)(Cr≥10) (L/R/U/D) | ||
| High Light: | 1024x768 IPS TFT LCD Display,IPS TFT LCD Display 15 Inch,A Si 15 inch tft display |
||

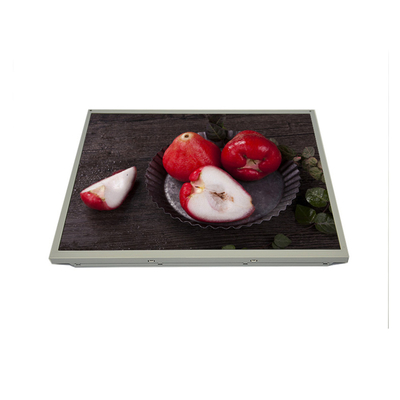

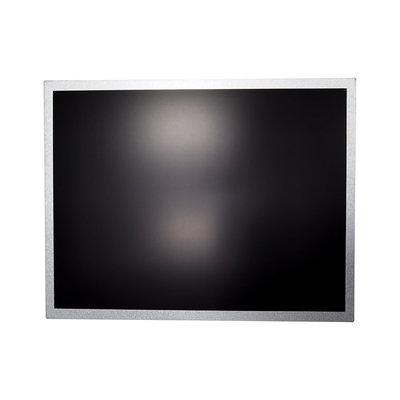

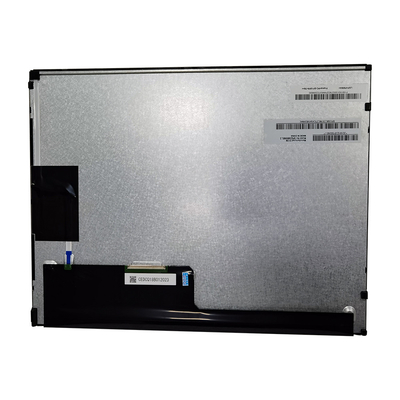

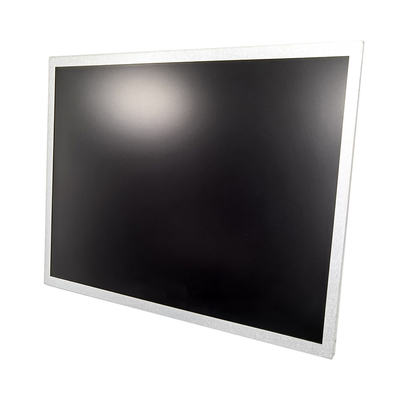

CJG150xvn01.1 is a color active matrix liquid crystal display composed of TFT-LCD panel, driving circuit and backlight system. The screen format is designed to support XGA (1024(H)x768(V)) screens and 16.2m colors. All input signals are a channel LVDS interface.
The following items are characteristics summary on the table under 25 °C condition:
| Items | Unit | Specifications |
| Screen Dagona | [inch] | 15.0" |
| Active Aea | [mm] | 304.128(H)x228.096(V) |
| Pxels H×V | 1024 x768 | |
| PxelHtch | [mm] | 0.297(per one triad)x 0.297 |
| Pxel Arangement | R.G.B. Vertical Stripe | |
| Dspay Mode | VA, Normally Black | |
| wne -uihance | [cd/m] | 300(center,Typ) |
| Contast Rato | 1500∶1(Typ) | |
| ptcal Kesponse ime | [msec] | 35(Typ, on/off |
| Nominal input Voftage VDD | [Vot] | 3.3 |
| Power onsumpion | [Wat] | 10.1W(Typ) |
| Welgnt | [Grams] | 910(Typ) |
| Pnslca sze(HxV×D) | [mm] | 326.5(H)x253.5(V)x9.6(D)(Typ) |
| Eiectrca ineace | one channel LVDS | |
| burace reatmen | Hard-coating (3H), Anti-Glare treatment | |
| buppot Coor | 16.2M/262K colors | |
| Temperature RangeperatngStorage (Non-Operating) | [°C] [°C] |
-10 to +70(Tgs)-30 to +70(Ta) |
| RoHs Gomplance | RoHS Compliance |
Definition of viewing Angle
A viewing Angle is a measurement of the contrast ratio of the center of the screen over the 180 vertical range and the 180 vertical range (abnormal viewing Angle) Њ10 or Њ5. The range of 180 Angle of view is broken down as follows: approx. 90 (у) horizontal and 90 (и) vertical, high (upper) and low (lower). The measurement direction is usually perpendicular to the display surface, and the screen rotates around its center to form the desired measurement Angle.
Input power specifications are as follow:
|
