Product Details:
|
| Product Name: | TFT LCD Panel | Size: | 27 Inch |
|---|---|---|---|
| Type: | TFT | Aspect Ratio(W:H): | 16:9 |
| Voltage Supply: | 12.0V (Typ.) | Refresh Rate: | 60Hz |
| High Light: | 3840x2160 TFT Touch Panel,4 Lanes LCD TFT Display Panel,800 Cd TFT Touch Panel |
||
General description
CJG270zan01.0 is a 27.0-inch A-SI TFT-LCD LCD module product launched by CJTOUCH. It is equipped with WLED backlight, including LED driver backlight drive, no touch. The operating temperature is 0 ~ 40°C, the storage temperature is -20 ~ 50°C, and the vibration resistance is 1.5g (14.7m /s²). Its typical feature screen library is summarized as: wide color gambit, DCI-P3, sRGB, high brightness, white LED backlight, including LED driver, terminal flip, 10 bit gray scale, surface fog surface. Based on its feature screen library, this model is recommended for industrial, medical imaging, outdoor highlighting. According to the information obtained by the screen library, this product was mass-produced in Q1 of 2017, and the current production status is in mass production. At present, this model has 11 spot information and 26 supplier information on the screen database, which is the main model of the screen database market. The screen library first established the parameters for this model on November 08, 2016, and updated the parameters for the last time on March 13, 2021. As an AHVA, always black display, transmission LCD module product, CJG270ZAN01.0 can provide 800 CD /m² display brightness 1000:1 transmission contrast, and 89/89/89/89 (Typ.)(CR≥10) (left/right/up/down) viewing Angle, the best viewing Angle is full view, Its response time is 16/25 (Typ./Max.)(Tr+Td) ms. Due to the 8-bit + Hi-FRC grayscale signal for each pixel, the product can display 1.07B color and its color saturation is 94% (NTSC). For backlighting, this product uses a WLED side entry light source with a life of 30K hours, including LED driver. CJG270zan01.0 adopts eDP (2 CH, 4 Lanes) signal interface, a total of 51 pins, adopts terminal connection, driving screen voltage is 12.0V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
Specification
| Model Name | CJG270ZAN01.0 |
| Screen Size | 27.0 inch |
| Screen Type | LCM,a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 , UHD |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 596.16(W)×335.14(H) mm |
| Outline(mm) | 630(W)×368.2(H) ×23.4(D) mm |
| Bezel Area(mm) | 602.0(W)×340.4(H) mm |
| Treatment | Antiglare |
| Luminance | 800 cd/m² (Typ.) ,Sunlight Readable |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 ( Typ.)(CR≥10)Left/Right/Up/ Down |
| Response | 7/5 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AMVA, Normally Black, Transmissive |
| Color Depth | 1.07B 90% (CIE1931) |
| Backlight | WLED , 30K hours , With LED Driver |
| Net Weight | 3.40Kgs (Typ.) |
| Used for |
Outdoor High Brightness,Medical Imaging, Industrial Application |
| Max. Ratings |
Storage Temp.: -20 ~ 50°C Operating Temp.: 0 ~ 40 °C |
| Interface Type | eDP (2 ch, 4 Lanes) , 51 pins , Connector |
| Touchscreen | Without |
| RoHS Compliance | RoHS Compliance |
| Package |
5 pcs / box Weight: 20 Kgs Size: 730x265x470 mm (LxWxH) |
Input power specifications are listed as follows:
| Symbol | Description | Min | Typ. | Max | Unit | Conditions |
| VDD | Logic/LCD Drive Voltage |
4.5 | 5.0 | 5.5 | V | ±10% |
| IDD1 | Input Current | - | 1.18 | TBD | A | VDD= 5.0V, All white Pattern at 60 Hz |
| - | 1.37 | TBD | A | VDD= 5.0V, All white Pattern at 75 Hz | ||
| PDD1 | VDD Power | - | 5.94 | TBD | W | VDD= 5.0V, All white Pattern at 60 Hz |
| - | 6.84 | TBD | W | VDD= 5.0V, All white Pattern at 75 Hz | ||
| IRush | Inrush Current | - | - | TBD | A | Note 1 |
| VDDrp | Allowable Logic/LCD Drive Ripple Voltage |
- | - | TBD | mV | VDD= 5.0V, All white Pattern at 75 Hz |
TFT LCD Module
| Connector Name / Designation | Interface Connector / Interface Card |
| Manufacturer | STM P-TWO |
| Type Part Number |
MSCKT2407P30HB AL230F-A0G1D-P |
| Mating Housing Part Number | FI-X30HL (Locked Type) |

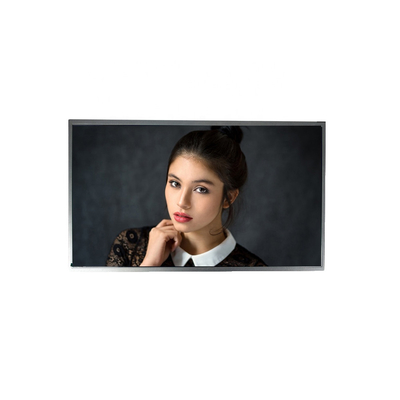

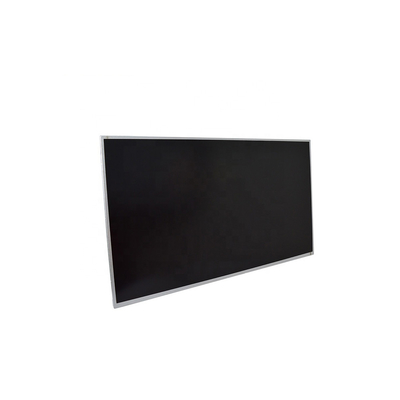

Detail images
