Product Details:
|
| Product Name: | AIO All In One Touch Computer PC | Touch Type: | Projected Capacitive PCAP Touchscreen |
|---|---|---|---|
| Touch Points: | Multi Touch 10 Points Touch | CPU: | I3 / I5 / I7 / And Roid |
| RAM: | 2GB /4GB /8GB /16GB/ 32GB | Memory: | 32GB /64GB/128GB /256GB/ 512GB |
| Interface: | RJ45/ USB / COM / VGA / HDMI Etc. | Customized: | AIO Touch PC With 3G / 4G / Camera Etc. |
| High Light: | Widescreen AIO Touch PC,15.6 Inches AIO Touch PC,10 Points PC All In One Touch |
||
15.6'' AIO All In One Touch Computer PC Features:
15.6'' AIO All In One Touch Computer PC Specifications:
| General Information | |
| Model | CCT156-CFK-QM1100 |
| CPU | J1900 / I3/I5/I7/ And-roid optional |
| RAM | 2/4/8/16/32GB RAM |
| Memory | 32/64/128/256/512 GB SSD |
| Interface | H-DMI, VGA, USB, COM, RJ45 |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
344.16 × 193.59 (H×V) mm |
| Resolution |
1920×1080@60Hz |
| Pixel Pitch(mm) |
0.17925×0.17925 (H×V) |
| Nominal input voltage VDD | 3.3v |
| Viewing angle(v/h) |
85/85/85/85 (Typ.) |
| Contrast |
800:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
30 (Typ.)(Tr+Td) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
Cjtouch Projected Capacitive PCAP touchscreen |
|
Multi touch |
10 points multi touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components of AIO All In One Touch Computer PC:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Package :
1 or 2 pcs AIO All In One Touch Computer PC in one carton, EPE package inside
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport

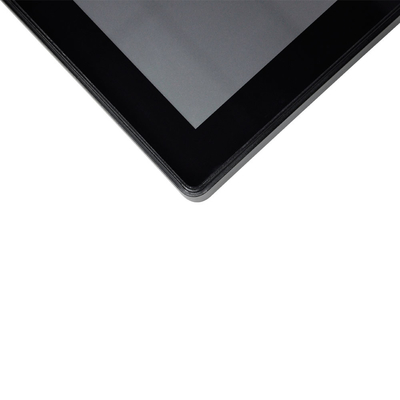

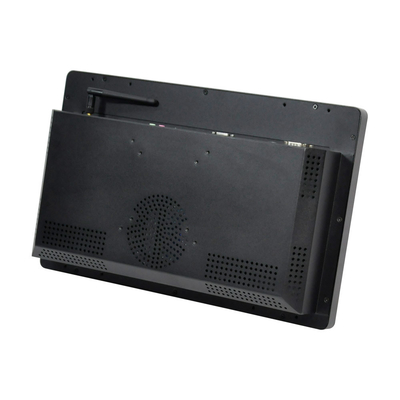

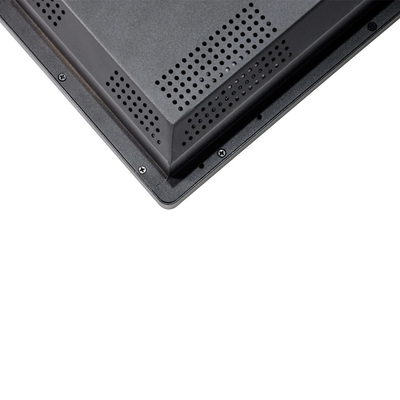

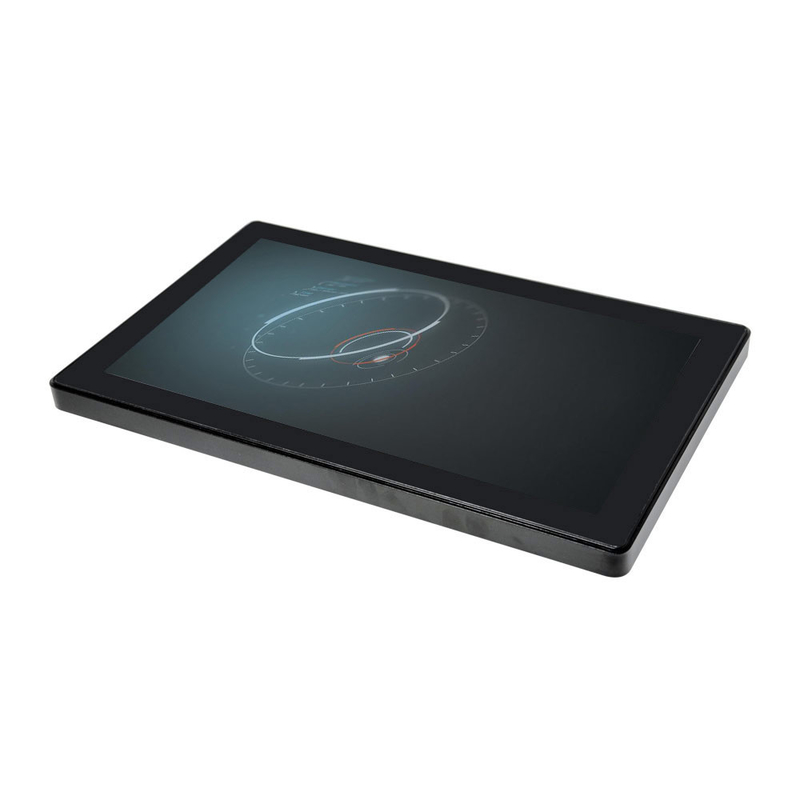

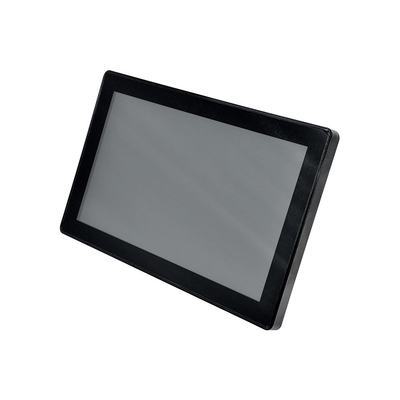

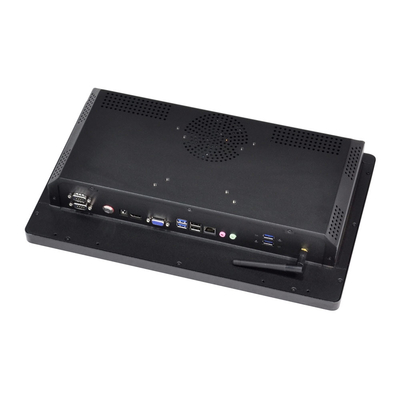

Pictures:
Drawing:
