Product Details:
|
| Product Series: | AIO Touch PC | Touchscreen: | Projected Capacitive Touchscreen |
|---|---|---|---|
| Resolution: | 1366*768 | CPU Optional: | Android / I3 / I5 / I7 CPU |
| RAM Optiaonal: | 2GB To 32GB | Memory: | 32GB, 64GB, 128GB, 256GB, 512GB Optional |
| Interface: | H-DMI /VGA / USB / RS232 /RJ45, Etc. | Brightness: | 250 Cd/m2 |
| High Light: | FCC Multi Touch All In One PC,18.5'' Multi Touch All In One PC,Capacitive Touchscreen PC For Kiosk |
||
Specifications:
| General Information | |
| Model | CCT185-CFK-RK3288-SS |
| CPU | Wins J1900 / I3/I5/I7/ Android optional |
| RAM | From 2GB - 32GB |
| Memory | From 32GB -512GB SSD |
| Interface | USB, COM, RJ45, HD-MI, VGA |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7/8/10 or Android |
| LCD Specification | |
| Active area(mm) |
409.8×230.4 mm |
| Resolution |
1366(RGB)×768 WXGA 84PPI |
| Pixel Pitch(mm) |
0.300×0.300 mm (H×V) [84PPI] |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
85/85/80/80 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 cd/m² (Typ.) |
| Response time |
3.6/1.4 (Typ.)(Tr/Td) ms |
| Support color |
16.7M , 72% NTSC |
| Backlight MTBF(hr) | 30000 |
|
Touch screen Specification |
|
|
Type |
CJTouch projected capacitive touch screen |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

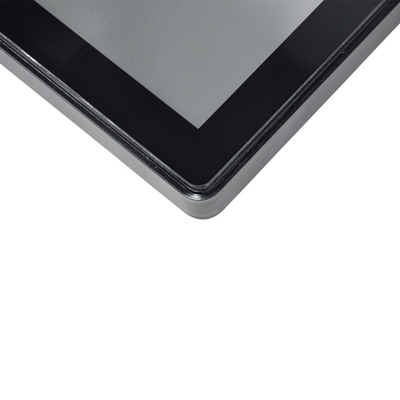

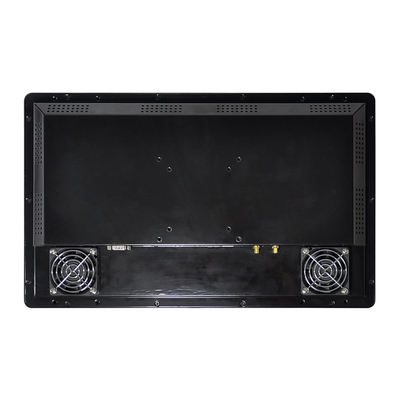

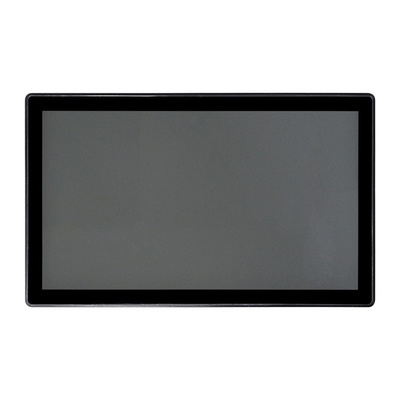

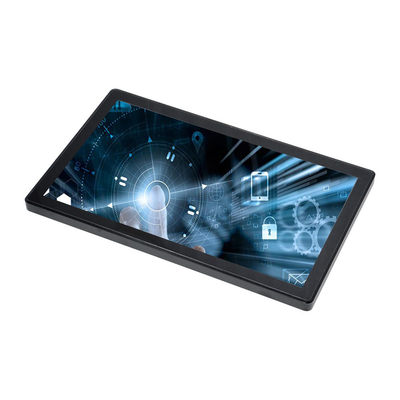

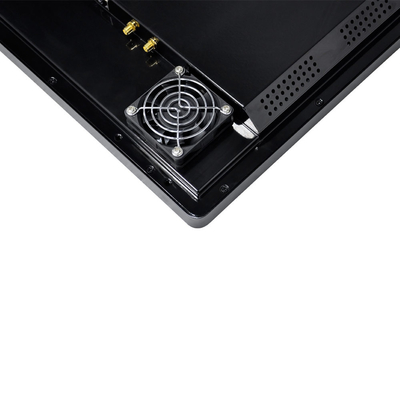

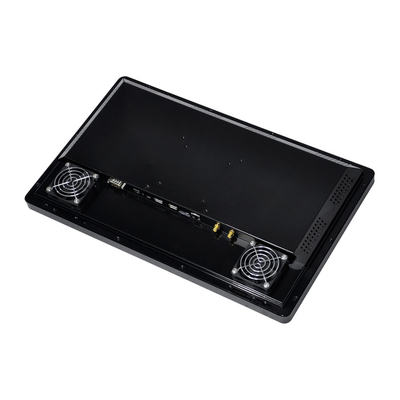

Pictures:
Drawing:
