Product Details:
|
| Product Name: | All In One Touch PC | Touch Type: | PCAP Capacitive Touch Panel |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | RK3288 / RK3399 / RK3288 / RK3399 |
| RAM: | 2GB -32GB | SSD: | 32GB - 512GB |
| High Light: | Anti Vandal AIO Touchscreen PC,2GB AIO Touchscreen PC,32GB All In One Touch Desktop |
||
Features:
Specifications:
| General Information | |
| Model | CCT238-CFK-QM1100 |
| CPU | RK3288 / RK3399 /J1900 / I3/I5/I7 optional |
| RAM | 2GB to 32GB |
| SSD | 32GB -512GB |
| Interface | HD-MI, VGA, USB, RS232, LAN |
| Power supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts 5A |
| Mount Interface |
1)VESA 75mm and 100mm 2) Mount bracket, horizontal or vertical |
| OS | Wins 7 8 10 or Android |
| LCD Specification | |
| Active area(mm) |
527.04× 296.46 (H×V) mm |
| Resolution |
1920×1080@60Hz |
| Pixel Pitch(mm) |
0.2745×0.2745 mm |
| Nominal input voltage VDD |
+5V |
| Viewing angle(v/h) |
89/89/89/89 (Typ.)(CR≥10) |
| Contrast |
1000:1 |
| Luminance (cd/m2) | 250 |
| Response time |
14 (Typ.)(G to G) ms |
| Support color |
16.7M |
| Backlight MTBF(hr) | 30000 |
|
Touchscreen Specification |
|
|
Type |
CJTOUCH capacitive touch panel |
|
Multi touch |
10 points touch |
|
Touch Life Cycle |
10 millions |
|
Touch Response time |
8ms |
|
Touch System Interface |
USB interface |
|
Power consumption |
+5V@80mA |
|
External AC Power Adapter |
|
|
Output |
DC 12V /5A |
|
Input |
100-240 VAC, 50-60 Hz |
|
MTBF |
50000 hr at 25°C |
|
Environment |
|
| Operating temp. | 0~50°C |
| Storage temp. | -20~60°C |
| Operating temp. | 20%~80% |
| Stroage RH | 10%~90% |
Components:
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
Packing Details
--Anti-static film, bubble bag, Pearl sponge and wooden case
Delivery Details
--1~20 working days after deposit received
Delivery method
--TNT, DHL, airfreight and seafreight are welcome. You are welcome to ask us to delivery for you and contact your own agent.

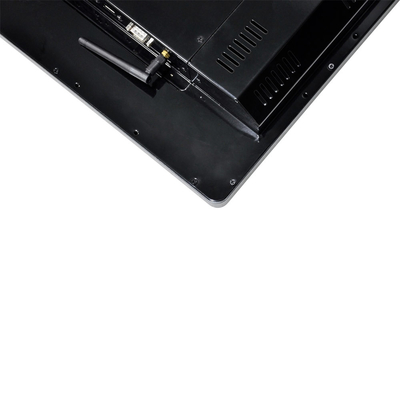

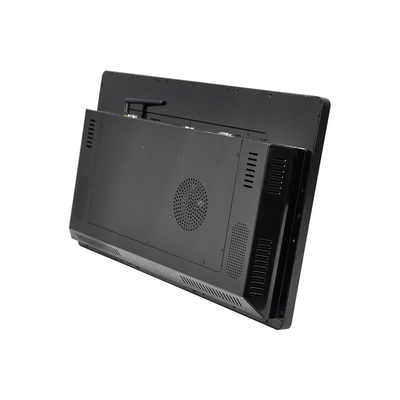

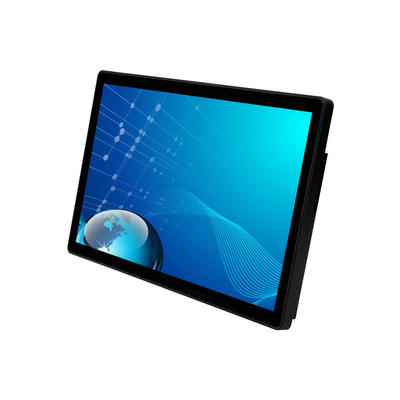

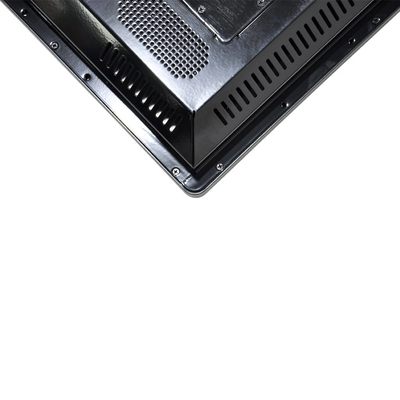

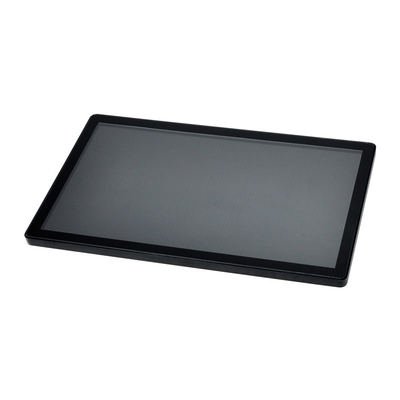

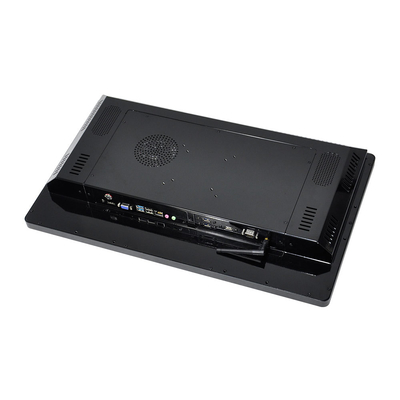

Pictures:
Drawing:
