Product Details:
|
| Product Name: | Industrial Display Monitors Computer Panel | Sreen Size: | 19'' |
|---|---|---|---|
| Resolution: | 1280*1024 | Brightness: | 470 Cd/m2 |
| RAM Optiaonal: | From 2GB To 16GB | Storage: | From 32GB To 512GB |
| High Light: | 470 Cd Industrial Lcd Monitor,19 Inch Industrial Touch Screen Monitor,19Inch industrial touch monitor |
||
19'' Industrial I7/I5/I3 Dustproof Touch Screen Industrial Display Monitors Computer Panel Pc
19'' Industrial Display Monitors Computer Panel Features:
19'' Industrial Display Monitors Computer Panel Specifications:
| System | |
| CPU |
3855U; I3-6100U; I5-6200U; I7-6500U 3865U; I3-7100U; I5-7200U; I7-7500U |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |
| Display | 19.0'' LED backlight TFT LCD and HDWI(4K resolution) , dual display, In tel HD graphics 510/520 |
| Touch | 5 wire resistive touch optional projected capacitive touch, USB control |
| Expansion |
1*Mini PCIe(PCIe&USB signal),Opt.1*32-bit PCI or 1*PCIe X1 |
| Real I/O |
4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe,there are only 2*COM) 1*HD MI,1*Line out 4*USB3.0 Type A 2*RJ45 |
| Front I/O | 1*USB2.0 Type A |
| LAN | 2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Control SW | 1*Cmos,1*AT/ATX,Power button, 2–pin connecter with power switch signal,HDD LED |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/4.44A(In tel I5–6200U CPU, 4GB DDR4) |
| OS Supply | Wins 7, Wins 8.1,Wins 10,Linux |
|
Mechanical and Environmental |
|
| Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
| Operating Temperature | 0~50℃ –HDD( –10~55℃ –SSD), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 and 75*75mm, Rack mounting |
| Dimension | (W*H*D):453.5*388.5*64.1mm; mounting cut out(W*H): 445.0*380.0mm |
| Net Weight | 6.9kg |
| EMC | CE, FCC Class A |
| LCD | |
| Type | 19'' TFT LCD |
| Resolution | 1280*1024 |
| Color | 16.7M |
| Pixel Pitch(mm) | 0.297*0.297(mm) |
| Brightness(cd/m2) | 470 |
| Viewing Angle |
85°(left), 85°(right), 85°(up),85°(down) |
| Operating Temperature | -15~65℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | 5 wire resistive touch / PCAP touch |
| Resolution | gapless |
| Light Transmittance | 83%90% |
| Interface | USB |
| Consumption | +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 35 million times / 3 million times |
Package :
EPE package inside, carton package outside and 1 or 2 pieces in one carton
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport

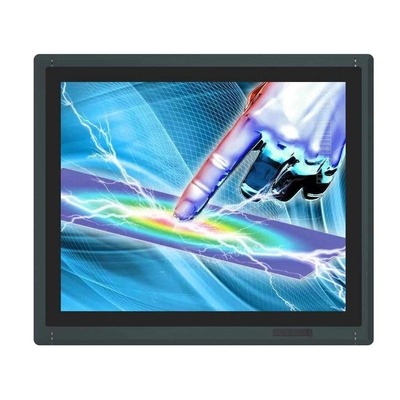

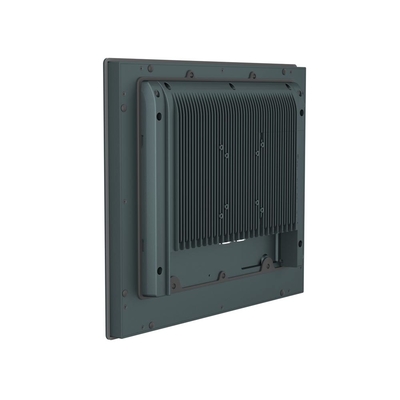

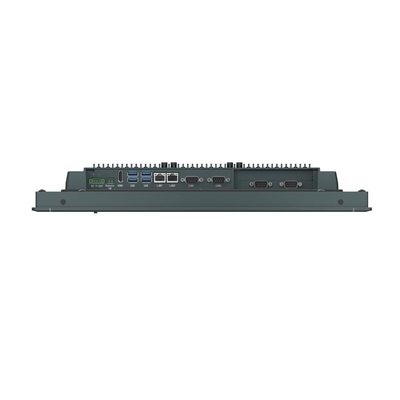

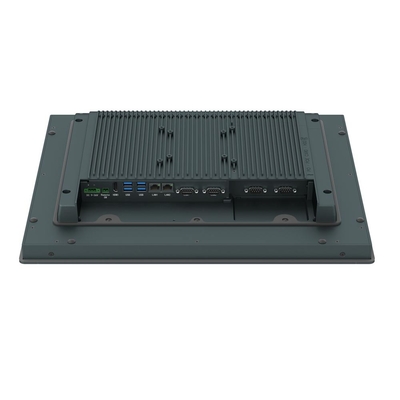

19'' Industrial Display Monitors Computer Panel Pictures:
