Product Details:
|
| Product: | Display Monitors Computer PC | Touch Type: | Capacitive Touchscreen |
|---|---|---|---|
| Resolution: | 1024 X 768 | Brightness: | 350 Cd/m2 |
| RAM Optiaonal: | 2- 8GB | Storage: | 32- 512GB |
| High Light: | IP66 Waterproof Industrial Display Monitors,15'' Industrial Display Monitors,IP65 15 inch display monitor |
||
15''Capacitive TouchScreen Industrial IP65 IP66 Waterproof Display Monitors Computer PC
This PC is a rugged, super-reliable, fanless embedded waterproof panel PC. The front panel is made of SUS304 stainless steel. The back cover is made of a 3.0mm 5052 aluminum alloy, which can meet both CPU thermal dissipationand VESA mounting.It powered byJ1900 CPU,1-Ch DDR3L 1333 MHz SODIMM, Up to 8GB.Supports 15-inch 1024*768@60Hz TFT LCD, Resistive/Capacitive touch. This PC adopts full flat bezel design. In addition to IO interface, the waterproof grade of this PC can reach IP65/IP66. It has super waterproof, solid and reliable, high performance,multi - IO, multi - extension,wide range of applications.Suitable for wet, cold and harsh environment.
Features:
Specifications:
| System | |
| CPU | J1900 CPU |
| Chipset | In tel SOC |
| System Memory | 2GB- 8GB |
| BIOS | AMI UEFI BIOS |
| Storage | 1*Simple-swap 2.5” SATA bay;1*mSATA(full size), support AHCI |
| Display | 15'' TFT LCD |
| Touch | PCAP capacitive touch |
| Expansion | 1*Mini PCIe(full size) with PCIe X1+USB,with SIM slot 1*Full size mSATA with USB2.0 |
| Real I/O |
2*RJ45 GbE LAN(with LED); 2* RS232/422/485(DB9) 1*USB3.0 Type A; 3*USB2.0 Type A 1*HD MI; 1*VGA; 1*Opt. ANT |
| LAN | 2*In tel I211AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Audio | Realtek ALC662VD controller, Support 5.1 channel |
| Control SW | 1*Power button, 1*AT/ATX Select dip |
| Power Supply | DC 9~36V, D-Jack w/ M8 connector, Comsuption: TDP 12V/ 1.62A |
| OS Supply | Wins 7, Wins 8.1, Wins 10, Linux Fedora Ubuntu |
|
Mechanical and Environmental |
|
| Construction |
he whole body: SUS304 Stainless steel Back cover: 3.0mm 5052 Aluminum IO cover: 1.0mm SECC/SGCC |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -40°C~85°C |
| Operating Humidity | 10~90%@40℃, non-condensing |
| Shock | 10g peak acceleration(duration 11ms) |
| Vibration | 1g 5~500Hz |
| Mounting | Desktop VESA(100mm*100mm) mounting |
| Dimension | (W*H*D):405.22mm*328.22mm*52.1mm |
| Net Weight | 5.8KG |
| EMC | CE, FCC Class B |
| LCD | |
| Type | 15'' LCD |
| Resolution | 1024 X 768 |
| Color | 16.2M colors |
| Pixel Pitch(mm) | 0.297*0.297 |
| Brightness(cd/m2) | 350 |
| Viewing Angle | 80 Degree(left), 80 Degree(right), 80 Degree(up), 80 Degree(down) |
| Operating Temperature | -20~70℃ |
| Backlight Lifetime | 50000 Hours |
| Touch | |
| Type | capacitive PCAP touch screen |
| Resolution | gapless |
| Light Transmittance | 90% |
| Interface | USB |
| Consumption | +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 3 million times |
Package :
EPE package inside, carton package outside and 1 or 2 pieces in one carton
Shipping :
For sample order: By Fedex, TNT, UPS, DHL etc.
For bulk order: By air to airport or by sea to seaport

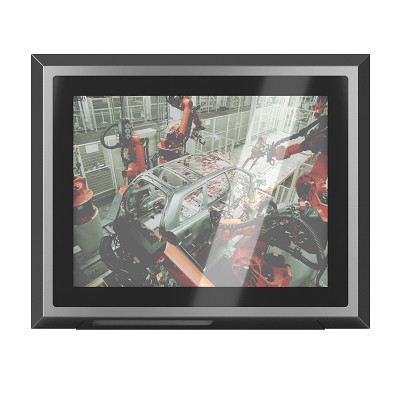

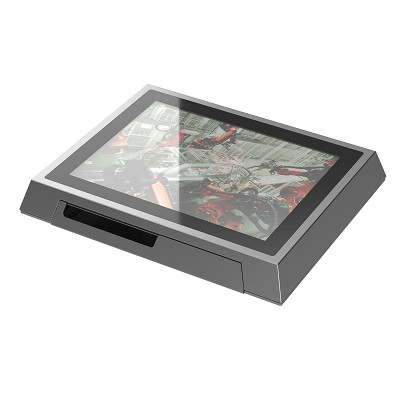

Pictures:
