Product Details:
|
| Resolution: | 1920*1080 | Video Port: | HDMI |
|---|---|---|---|
| Panel Type: | IPS | Brightness: | 300nits |
| Contrast Degree: | 3000:1 | Material: | Metal Case + Toughened Glass Panel |
| High Light: | Seamless Curved Touch Screen Display,HDMI Curved Touch Screen Display,HDMI touch curved monitor |
||
HDMI Seamless Curved Touch Screen Display 300 Nits For Banking Industry
32 inch Curved touch screen gaming monitor capacitive multi touch monitor for Firelink/IGS games
32 inch curved touch screen monitor Services
1. Sample Availability & Policy:
Paid samples are available in 2 - 5 days.
OEM & ODM service available.
2. Warranty & Spare parts Conditions :
(1). Our Products comes with 12 Months Warranty.
(2). We offer Premium Quality for Customer to make better profits.
(3). We maintain High Quality Standard.
(4). Our Products makes Customer Best Seller Product.
(5). We provide Best Product for futher sales.
(6). We sell Original Authentic Product to Customer.
(7). Our Products are Environment Friendly Products.
32 inch Curved Touch Monitor Features
Application area
* Gambling and Other game console terminals
* Automatic terminal
* Banking industry
* Public display industry
32inch Curved Touch Monitor Specifications
| Product Name | 32inch Curved touch screen gaming monitor capacitive multi touch monitor | |
| Product Model | 32” | |
| LCD Panel | Active area | 698.4(H)×392.85(V)mm |
| Display ratio | 16:09 | |
| Back-light | LED | |
| Life time | More than 50000 hours | |
| Resolution | 1920×1080 | |
| Luminance | 300cd/m2 | |
| Contrast ratio | 3000:01:00 | |
| Response time | 8ms | |
| Dot Pitch | 0.363(H)×0.121(V)mm | |
| Colour | 16.7M | |
| Viewing angle | H/V:178°/178° | |
| PCAP Touch screen | Touch type | G + F+F capacitive touch technology |
| Response time | <5ms | |
| Multi touch | 10 Points touch | |
| Recognition area | >1.5mm | |
| Scan frequency | 200HZ | |
| Scanning accuracy | 4096 x 4096 | |
| Interface | Full speed USB2.0,USB3.0 | |
| Touch life time | More than 50 million yuan | |
| Working current | 180Ma/DC+5V+/-5% | |
| Anti-light | Normal when the strong light changes | |
| Output type | Coordinate output | |
| Surface hardness | Thermal tempering,Mohs grade 7 | |
| Operate system | Android/Windows | |
| Drive | Free drive, plug and play | |
| Outside interface | HDMI input | 1 |
| VGA | 1 | |
| Touch USB | 1 | |
| DC power | 1 | |
| Power Supply | Working voltage | AC220V 50/60Hz |
| Max. power | 65W | |
| Standby power | 1W | |
| Use environment | Temperature | 0～40°C |
| Humidity | 10～90%RH No condensation | |
| Appearance information | Product size | 765.8*458*107.24mm |
| Carton size | 860*570*230mm | |
| Net weight | 11KG | |
| Gross weight | 14KG | |
| Accessories | power line *1,HDMI Cable*1,Touch USB Cable*1 | |

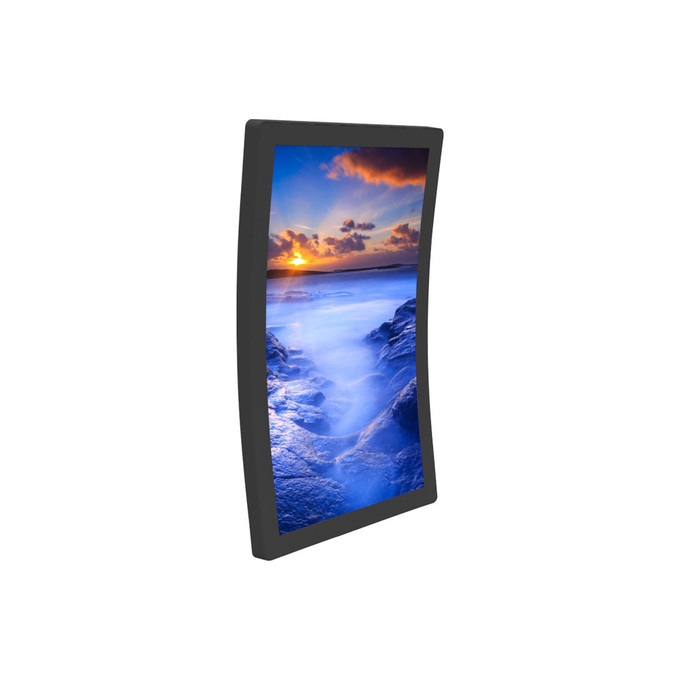

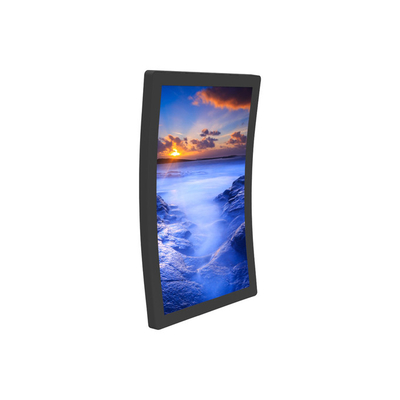

32inch Curved Touch Monitor Pictures
32inch Curved Touch Monitor Drawing
