Product Details:
|
| Type: | IR Industrial Touch Screen Monitor | Touch Point: | 1-10 Points Option |
|---|---|---|---|
| Resolution: | 1920×1080 | Brightness: | 250cd/m2 |
| Interface: | VGA/DVI/USB/HDMI/DC12V | Materials: | Metal |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | Infrared Touch Monitor For Kiosks,21.5inch Infrared Touch Monitor,10 Points Infrared Multi Touch Screen |
||
Infrared Touch screen monitor Feature:
• Monitor size: 15", 17", 19", 18.5",21.5", 23.8",27",32"
• Touch signal input : RS232 / USB
• Sensitive touch: Infrared touch
• Signal input: VGA/DVI/HDMI
• With bezel optional
• Application area: digital signage, Advertising machine,Kiosks,Gaming, Interactive digital,Industrial,Education,Transportation etc.
• It is easily connected and integrated by user.
OEM / ODM It Is Welcome
1. Different Metal Case Optional.
2. No Frame Optional (SKD).
3. Touch Screen Optional (Resistive,Infrared,Capacitive Touch).
4. DVI USB AV BNC SD Card Optional.
5. Industrial Panel,IPS Panel,High Brightness Panel Optional.
6. Different Size 5inch-42inch Optional.
7. Desktop,Wall Mount Optional.
8. Customized Service.
Specification:
| General | |
| Model | COT215-IPK03 |
| Series | Dust-proof and Compact |
| Monitor Dimensions | Width: 528mm Height: 318mm Depth:56mm |
| LCD Type | 21.5”SXGA Color TFT-LCD |
| Video Input | VGA DVI And HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| LCD Specification | |
| Active Area(mm) | 476.64(H)×268.11(V) |
| Resolution | 1920x1080@60Hz |
| Dot Pitch(mm) | 0.24825×0.24825 |
| Nominal Input Voltage VDD | +5.0V(Typ) |
| Viewing angle (v/h) | 89°/89° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5ms/14ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 30000 |
| Touchscreen Specification | |
| Type | Cjtouch Infrared(IR)) touch screen |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0～50°C |
| Storage Temp. | -20～60°C |
| Operating RH: | 20%～80% |
| Storage RH: | 10%～90% |
| Package | |
| Package way | 1sets in 1 carton EPE packaging inside |
| Gross weight/Carton size | 9.5KGS/60×18×39CM |
Warranty and Components
1 Year Free Warranty for Monitor and all components.
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
HDMI Cable & DVI Cable Sold Separately

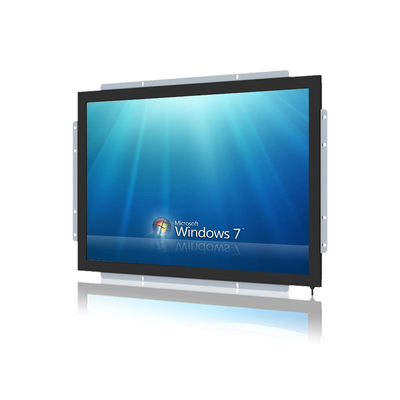

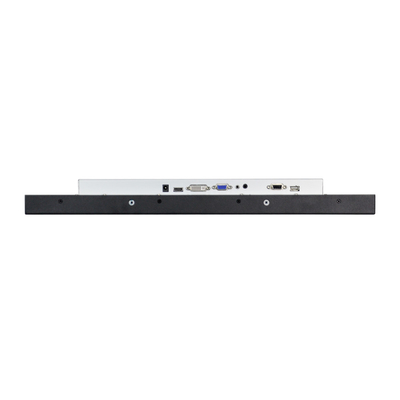

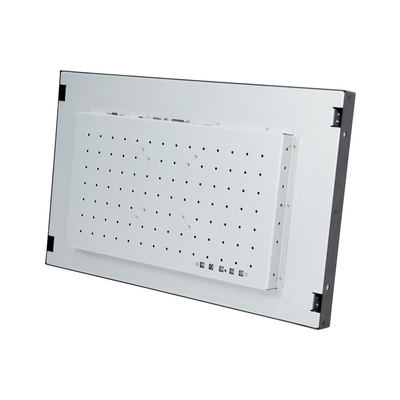

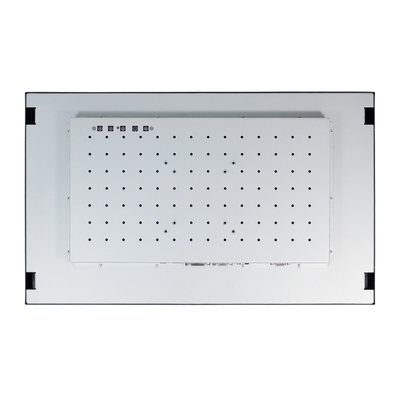

Product Picture
Drawing :
