Product Details:
|
| Type: | Infrared IR Touch Screen Monitor | Products Status: | Stock |
|---|---|---|---|
| Resolution: | 1280×1024 | Touch Point: | 1-10 Points Option |
| Materials: | Plastic And Aluminum | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | Sunlight Readable Infrared Touch Screen,LCD Open Frame Infrared Touch Screen,Vandalproof Open Frame LCD Monitor |
||
Features
1.1-10 point real multi touch
2.VESA Hole for Wall Mount installation
3.Free for 1 year warranty
4.Optional size:10.4" to 98"
5.Can Customizable vanfalprool /waterproof /dusproof/Anti Sunlight/AG/AR/AF Glass option.
6.Rear-mount Standard VESA hole as mounting option
7.Detachable cables for easy cable harnessing
8.Multilingual and detachable On-Screen display (OSD)
9.Super-sensitive, drift-free, precise touch with no overlay
10.Worldwide agency approvals
11.Slim profile with unique narrow boarder
12.Optional mounting brackets (Front, side or rear)
13.Single power supply for all optional devices
14.Combo Serial and USB touch interface
15.Long-Lasting product cycle
Specification:
| Description | 17" Infrared IR Touch Monitor |
| Case/Bezel Color | Black |
| Display | 5:4 Active Matrix TFT LCD |
| Optimal (native) Resolution | 1280×1024 @60Hz |
| Sychronization Range | Horizontal: 30 -80 KHz, Vertical:60 -75 Hz |
| Useful Screen Area | 338mm × 270mm |
| Colors | 16.7 M |
| Brightness | 250 cd/m2 |
| Pixel Pitch | 0.264 × 0.264 mm |
| Response Time | 5ms (Typically) |
| Contrast Ratio | 1000:1 (Typical) |
| Viewing Angle(CR≥10) | Horizontal: ±85° or 170° total; Vertical: ±80° or 160° total |
| Backlight Lamp Life | 50000 hrs |
| Input Video Format | VGA / DVI Options |
| Input Video Signal Connector | VGA/ DVI Options |
| On Screen Display(OSD) | Controls (back): ON/OFF,MENU,LEFT,RIGHT,SEL,AUTO |
| Remote OSD with 1.2m Cable | |
| Touch Technology | CJTouch IR touch technology |
| Touch Interface | RS232 & USB touch interface optional |
| Protected Level | Standard dust proof, IP65 (front bezel) options |
| OS and Driver | Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver |
| Mounting Options | VESA Mount (75mm or 100mm) , Side Mount or Front Mount with optional bracket |
| Power Supply | DC:+12VDC ± 5% |
| External Adapter: 100-240VAC, 50-60Hz | |
| Power Consumption | 36W Max |
| Temperature Range | Operating: 0℃ to 50℃; Storage: -20℃ to 60℃ |
| Humidity Range (no condensing) | Operating: 20%-80%; Storage: 10%-90% |
| Warranty | 1 year |
| Agency Approvals | CCC, FCC, CE, RoHS |
| IR touch screen specification | |||
| Products Status: | Stock | Screen Size: | 17" |
| Type: | Infrared | Interface Type: | USB |
| Resolution: | 32768x32768 | Brand Name: | CJTouch |
| Place of Origin: | Guangdong, China | Technology: | IR Technology |
| Input Method: | Any opaque object | Touch Times: | Infinite time |
| Function: | Zoom in and out,Light protection,durable,Click,Draw | Response time: | ≤7ms |
| Touch points: | 20 points | Warranty: | 12 months |
| Application: | Interactive,Teaching ,Conference,Business | Operating System: | Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux |
| Installation: | Plug and Play | Glass: | 3mm glass attached (Or no glass) |
| Ratio | 5:4 | Frame | Aluminium alloy with black surface treatm |

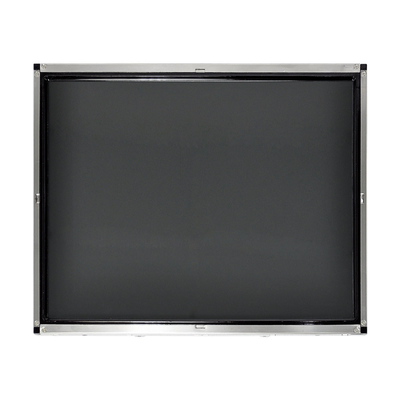

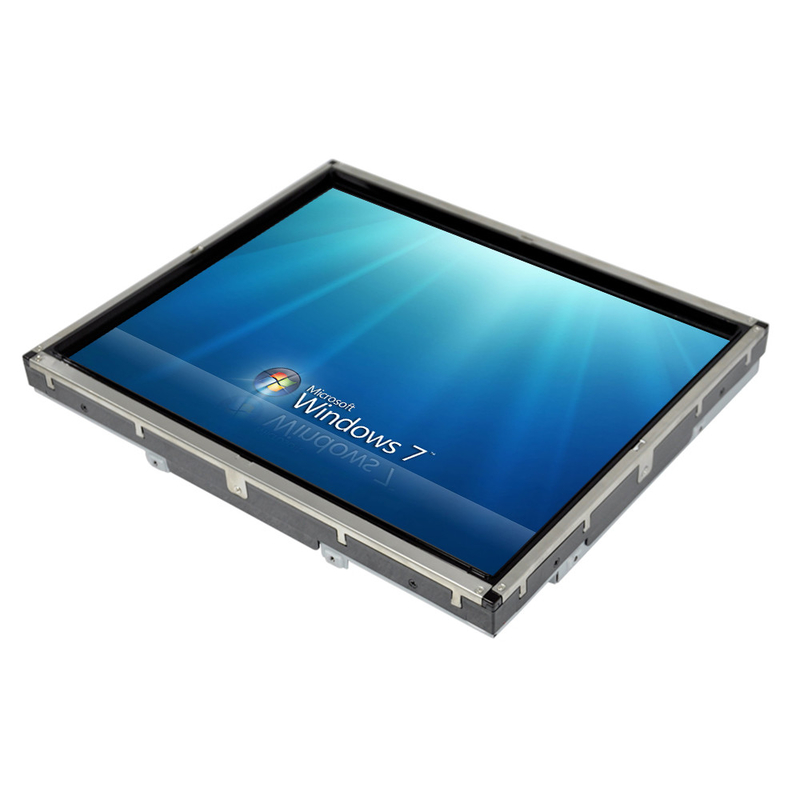

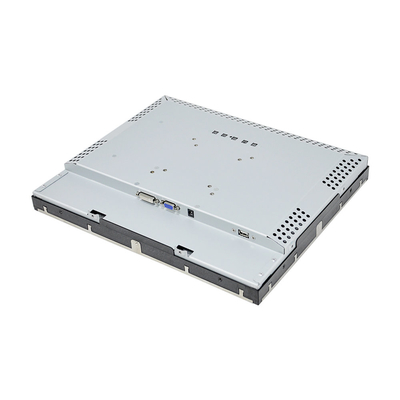

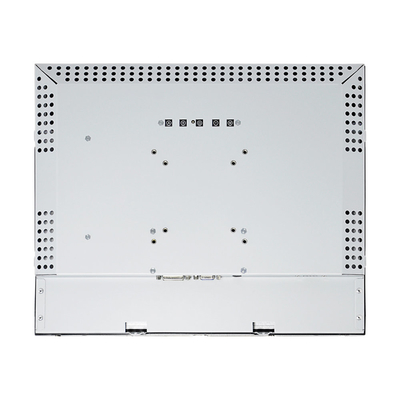

Product Picture
Drawing :
