Product Details:
|
| Keywords: | Infrared Touch Lcd Monitor For Gaming Kiosks | Touch Screen: | IR Touch (Support Multi Touch),infrared Touch Monitor,Infrared Touch Screen |
|---|---|---|---|
| Resolution: | 1280×1024 | Touch Point: | 1-10 Points Option |
| Materials: | Plastic And Aluminum | Interface: | VGA/DVI/USB/HDMI/DC12V |
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,care,education |
| High Light: | Aluminum Industrial Open Frame LCD Monitor,Dustproof Industrial Open Frame LCD Monitor,12V 19 Inch Open Frame Monitor |
||
Features
--1-10 point real multi touch
--VESA Hole for Wall Mount installation
--Free for 1 year warranty
--Optional size:10.4'' 12.1'15''15.6''17''18.5''19''21.5''22''23.6''27''...........
--Can Customizable vanfalprool /waterproof /dustproof/Anti Sunlight/AG/AR/AF Glass option.
--This 19 inch open frame touch monitor is nicely mounted onto any special application. Industrial grade chipset&overall design.
Easy to be integrated on POP/POS display/kiosk.
Specification:
| Description | 19″TFT Rear Mount Touchmonitor |
| Case/Bezel Color | Black |
| Display | 4:3 Ratio Active matrix TFT LCD |
| Optimal(native) resolution | 1280X1024@60Hz |
| Sychronization Range | Horizontal:30-80 kHz; Vertical: 60-75Hz |
| Useful screen area | Horizontal: 14.8" (376 mm);Vertical: 11.85" (301mm) |
| Colors | 16.7 million |
| Brightness | LCD panel: 300cd/m2 (typical) |
| with touchscreen: 230 cd/m2 (typical) | |
| With IR touchscreen: 280 cd/m2 (typical) | |
| Pixel Pitch | 0.294 x 0.294 mm |
| Response Time | 8 msec (typical) |
| Contrast ratio | 800:1 typical |
| Viewing angle(typical, from center) | Horizontal (left/right): 160°(80° /80° ) |
| Vertical (up/down): 170°(85° /85° ) | |
| Backlight Lamp life | 50,000 Hrs to 1/2 brightness |
| Input video format | VGA or DVI optional |
| Input video signal connector | Mini D-Sub 15-Pin VGA type |
| On Screen Display(OSD) | Remote OSD with 1.2m cable |
| Touch Technology | SAW(Resistive, Capacitive Optional) |
| Touch Interface | RS232 and USB interface optional |
| Touch Resistive Time | 10ms |
| Mounting Options | Rear mount VESA, 75 mm & 100mm |
| Power supply | External:100-240V AC, 50-60 Hz |
| Power Consumption | 50W max |
| Temperature Range | Operating: 0°C to 50°C; Storage: -20°C to 60°C |
| Humidity Range | Operating: 10%-90%; Storage: 5%-90% no condensing |
| Warranty | Monitor: 3 years/’; LCD Panel: 1 year |
| Agency Approvals | FCC, CE, RoHS compliant |
| IR touch screen specification | |||
| Products Status: | Stock | Screen Size: | 19" |
| Type: | Infrared | Interface Type: | USB |
| Resolution: | 32768x32768 | Brand Name: | CJTouch |
| Place of Origin: | Guangdong, China | Technology: | IR Technology |
| Input Method: | Any opaque object | Touch Times: | Infinite time |
| Function: | Zoom in and out,Light protection,durable,Click,Draw | Response time: | ≤7ms |
| Touch points: | 20 points | Warranty: | 12 months |
| Application: | Interactive,Teaching ,Conference,Business | Operating System: | Winxp/Win7/Win8/Win10/Andriod/MacOS/Linux |
| Installation: | Plug and Play | Glass: | 3mm glass attached (Or no glass) |
| Ratio | 5:4 | Frame | Aluminium alloy with black surface treatm |

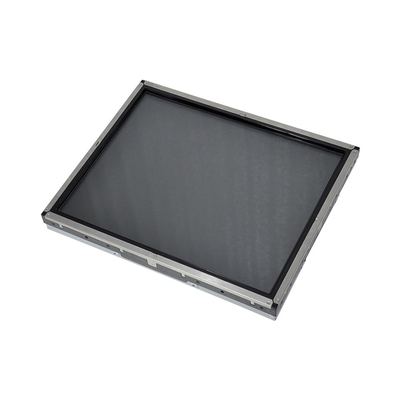

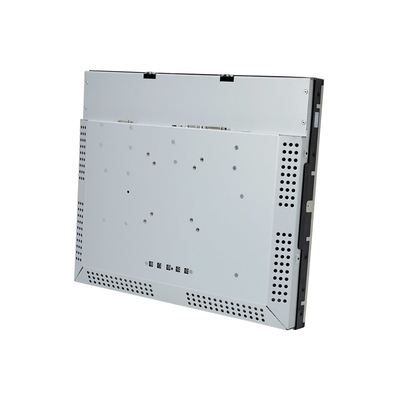

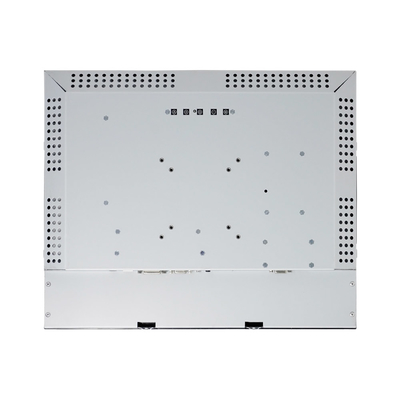

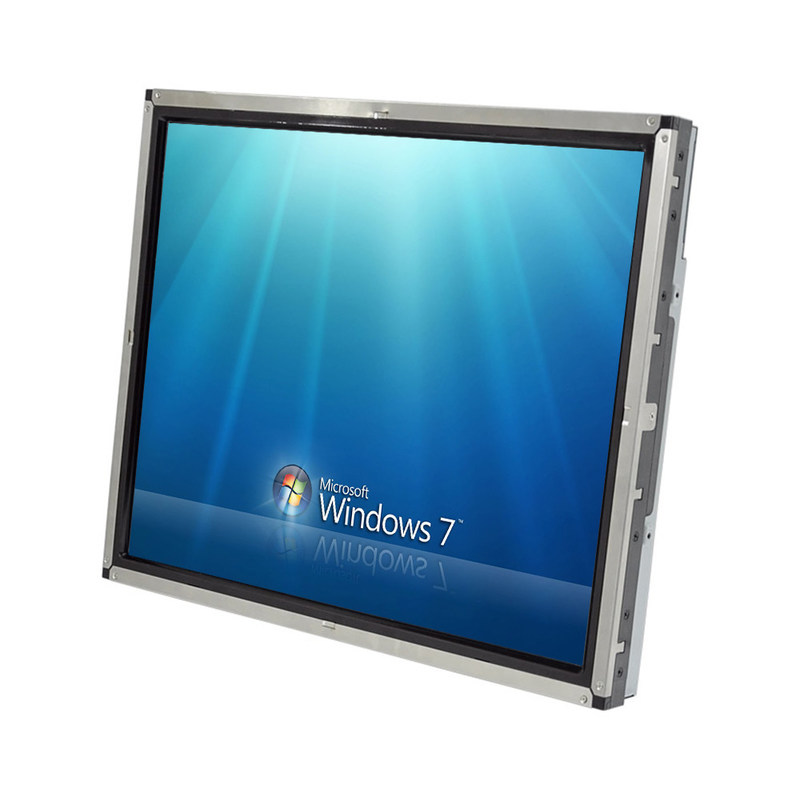

Product Picture
Drawing :
