Product Details:
|
| Touch Screen: | IR Touch (Support Multi Touch),infrared Touch Monitor,Infrared Touch Screen | Type: | Infrared,touch Screen Monitor |
|---|---|---|---|
| Size: | 19 Inch | Touch Point: | 4 Points Touch |
| Brightness: | 250cd/m2 | Resolution: | 1280*1024 |
| Color: | Black(other Colors Optional ) | Material: | Metal Case+ Infrared Touch Panel |
| High Light: | 250cd/M2 Infrared Touch Monitor,1280*1024 Infrared Touch Monitor,250cd/M2 Infrared Multi Touch Screen |
||
Wall Mount 250cd/M2 Infrared Touch Monitor Dustproof Sunlight Readable
19 inch high definition Interface infrared touchscreen IR openframe touch screen LCD monitor
Introduction
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Infrared Touch screen monitor Feature:
Specification:
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 19” SXGA Color TFT-LCD | |||
| Aspect Ratio | 5:04 | |||
| Active Area | Horizontal | 376.32 mm | ||
| Vertical | 301.06 mm | |||
| Pixel | Horizontal | 0.294 | ||
| Vertical | 0.294 | |||
| Panel Resolution | 1280×1024 (60 Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:01:00 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 3.6 ms | Typical | ||
| Viewing Angle | Horizontal | 170 | Typical | |
| Vertical | 160 | |||
| Video Signal Input | VGA and DVI and HDMI optional | |||
| Physical Specifications | ||||
| Dimensions | Width | 417.6 mm | ||
| Height | 342.5 mm | |||
| Depth | 42.5 mm | |||
| Weight | Net Weight 7 kgs | Shipping Weight 9 kgs | ||
| Box Dimensions | Length | 500 mm | ||
| Width | 450 mm | |||
| Height | 200 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Infrared 4 touch point | |||
| Touch Interface | USB (Type B) | |||
| Controller Model Number | HID plug and play | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Calibration Tool Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 50000 Hrs at 25°C | |||

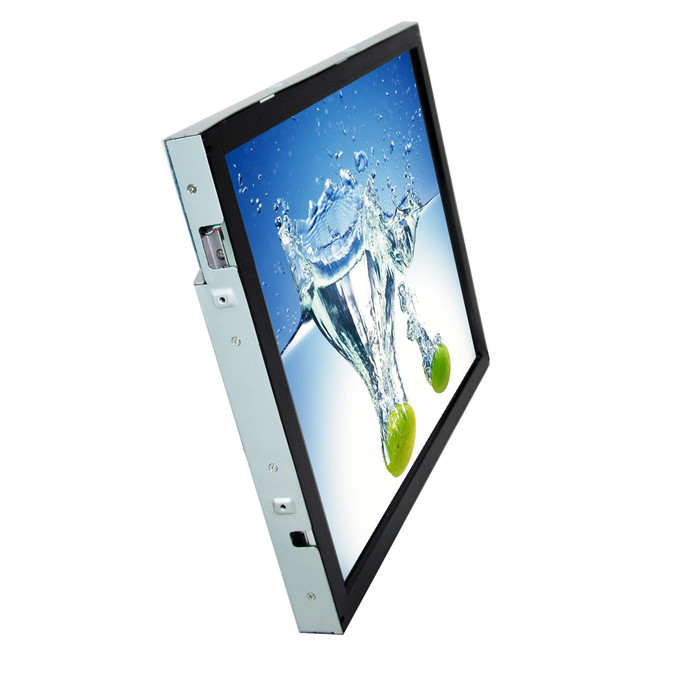

Product Picture
Drawing :
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the PCAP Touch Monitor and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support PCAP Touch Monitor .Medium sized displays generally support PCAP Touch Monitor Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
