Product Details:
|
| Touch Screen: | IR Touch (Support Multi Touch),infrared Touch Monitor,Infrared Touch Screen | Type: | Infrared,touch Screen Monitor |
|---|---|---|---|
| Size: | 19 Inch | Touch Point: | 4 Points Touch |
| Brightness: | 250cd/m2 | Resolution: | 1280*1024 |
| Interface: | VGA/DVI/USB/HDMI/DC12V | Application: | Indoor,industial,Vending Machine Kiosk |
| High Light: | Infrared IR Multi Touch Screen Monitor,250nits IR Multi Touch Screen Monitor,250nits ir touch screen panel |
||
VGA DVI Infrared IR Multi Touch Screen Monitor 250cd/M2 Wall Mount
19 inch high definition Interface infrared touchscreen IR openframe touch screen LCD monitor
Introduction
This CJTOUCH Infrared IR touch monitor is Wall mount touch monitors, Open Frame Touch monitors, Interactive Digital Signage,it is cost-effective touch solution which is designed for different Kiosks, ATM,Interactive digital, Transportation etc, and Public environments: Hotel lobbies, Office buildings, Auto dealerships, Bank, Gaming casinos, Healthcare waiting rooms, Retail stores and train stations, Industrial Control, Education, Artificial Intelligence, etc.
Infrared Touch screen monitor Feature:
Specification:
| Display Specifications | ||||
| Characteristic | Value | Comment | ||
| LCD Size/Type | 19” SXGA Color TFT-LCD | |||
| Aspect Ratio | 5:04 | |||
| Active Area | Horizontal | 376.32 mm | ||
| Vertical | 301.06 mm | |||
| Pixel | Horizontal | 0.294 | ||
| Vertical | 0.294 | |||
| Panel Resolution | 1280×1024 (60 Hz) | Native | ||
| Display Color | 16.7 Million | 6-bits + Hi-FRC | ||
| Contrast Ratio | 1000:01:00 | Typical | ||
| Brightness | 250 nits | Typical | ||
| Response Time | 3.6 ms | Typical | ||
| Viewing Angle | Horizontal | 170 | Typical | |
| Vertical | 160 | |||
| Video Signal Input | VGA and DVI and HDMI optional | |||
| Physical Specifications | ||||
| Dimensions | Width | 417.6 mm | ||
| Height | 342.5 mm | |||
| Depth | 42.5 mm | |||
| Weight | Net Weight 7 kgs | Shipping Weight 9 kgs | ||
| Box Dimensions | Length | 500 mm | ||
| Width | 450 mm | |||
| Height | 200 mm | |||
| Electrical Specifications | ||||
| Power Supply | DC 12V 4A | Power Adapter Included | ||
| 100-240 VAC, 50-60 Hz | Plug Input | |||
| Power Consumption | Operating | 38 W | Typical | |
| Sleep | 3 W | |||
| Off | 1 W | |||
| Touch Screen Specifications | ||||
| Touch Technology | Infrared 4 touch point | |||
| Touch Interface | USB (Type B) | |||
| Controller Model Number | HID plug and play | |||
| OS Supported | Plug and Play | Windows All (HID) ,Linux (HID) (Android Option) | ||
| Driver | Calibration Tool Offered | |||
| Environmental Specifications | ||||
| Condition | Specification | |||
| Temperature | Operating | -10°C ~+ 50°C | ||
| Storage | -20°C ~ +70°C | |||
| Humidity | Operating | 20% ~ 80% | ||
| Storage | 10% ~ 90% | |||
| MTBF | 50000 Hrs at 25°C | |||

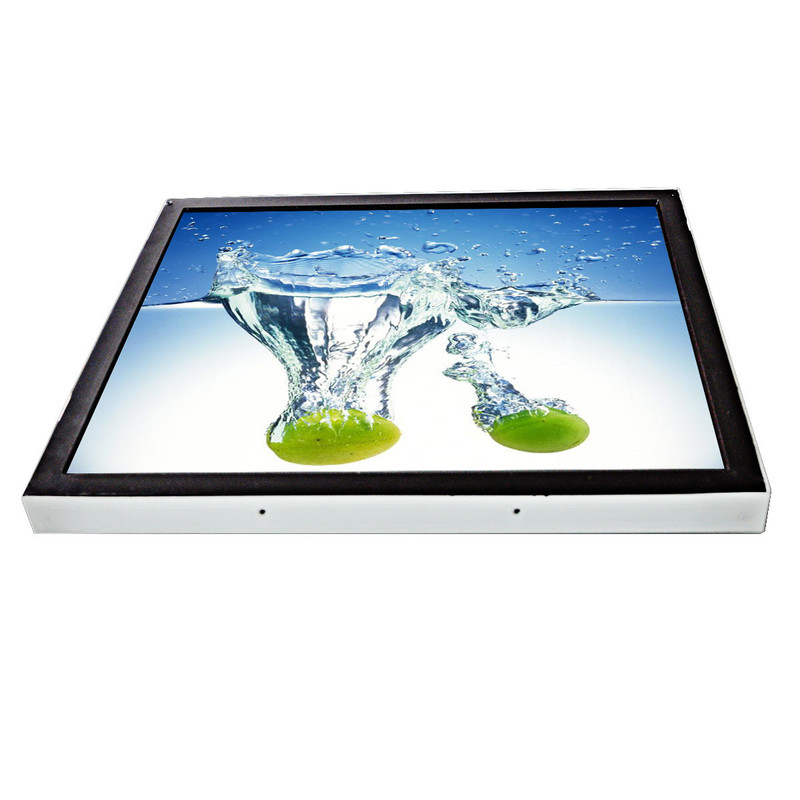

Product Picture
Drawing :
