Product Details:
|
| Touch Type: | Suface Capacitive Touch Screen | Interface: | USB |
|---|---|---|---|
| Touch Points: | 5/10 Touch Points | Cover Lens: | 3mm |
| Input Voltage: | 5V | Hardness: | ≥6H |
| Glass: | Anti Vandal Glass | Customized: | Support |
| High Light: | 10.4 Inch PCAP Touch Screen,PCAP Touch Screen With USB Interface,Anti Glare Surface Capacitive Touch Screen |
||
Touch screen devices placed in the lobby. Financial institutions are places where Capacitive Touch Panel Screen are used a lot. The bank can help the business through the operation of the touch screen. It is more convenient for the handler to enter the information in advance and then go to the front desk to handle it. Today, I would like to introduce to you which industries are suitable for touch screens.
1. Capacitive Touch Panel Screen Apply in Government agencies
Touch screen manufacturers introduce government agencies and units are also an industry with a relatively high usage rate of touch screens. Government agencies are units that provide services to the masses, so the publicity and release of many information needs to be carried out through touch screens. The well-served touch screen manufacturers will debug the machine in advance according to the needs of government agencies. They can publicize the laws and regulations of the national government and other relevant policies in advance.
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

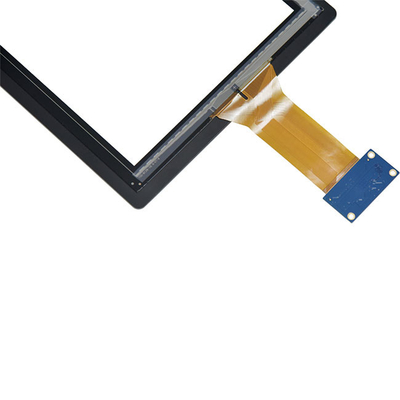

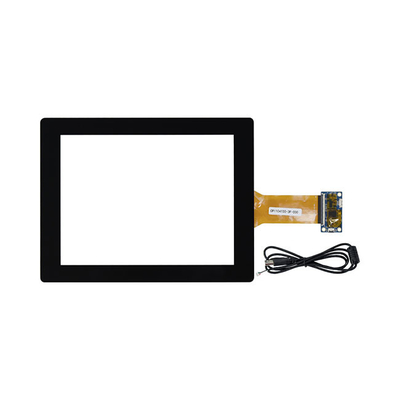

Picture of Product
Technical Drawing
