Product Details:
|
| Touch Type: | Capacitive Touch Panel | Glass: | Anti Vandal Glass |
|---|---|---|---|
| Size: | 10.4 Inch | Characteristic: | Water Proof And Dust Proof |
| Touch Points: | 5/10 Touch Points | Input Voltage: | 5V |
| Hardness: | ≥6H | Customized: | Support |
| High Light: | Minisize PCAP Touch Screen,Capacitive PCAP Touch Screen,Capacitive Touch Screen For Smart Lockers |
||
Capacitive Touch Screen Technology
Capacitive touch screen technology is a popular and durable technology that is used in a wide range of applications. It has a higher clarity than resistive technology, but it only responds to finger contact and will not work with a gloved hand or pen stylus. A capacitive touch screen consists of a glass panel with a capacitive (charge storing) material coating its surface. Circuits located at corners of the screen measure the capacitance of a person touching the overlay.
Used on smart monitor , projected capacitive is the most widespread touch screen, How is the structure like?
There are various structures in projected capacitive technology. "One sheet piled-up structure" has X and Y electrodes piled on one sheet. "One sheet two-sided structure" has X and Y electrodes on its surface and backside of one sheet respectively. "Two-sheets-laminated structure" consists of two sheets facing each other with electrodes in between.
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

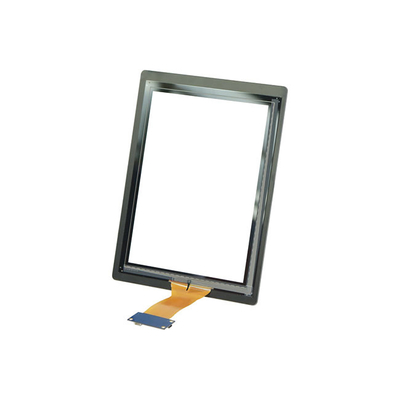

Picture of Product
Technical Drawing
