Product Details:
|
| Touch Screen: | 49" Multi Tocuh PCAP Screen | Glass: | 6mm Tempered |
|---|---|---|---|
| Customized: | Support Customized Glass And Size | Interface: | USB |
| Touch Type: | Capacitive Touch Screens | Transmittance: | >90% |
| Touch Points: | 10 Touch Points | Cold Resistance: | -10ºC, 120H |
| High Light: | Vandalproof All In One Touch PC,49Inch All In One Touch PC,Capacitive Touchscreen Panel For Education |
||
Did you know capacitive technology why so popular ? Because it have three advantage
Improved Picture
Last but not least, capacitive touchscreen devices have an exceptional quality picture, thanks to their use of a glass layer. Resistive touchscreen devices use a plastic layer, which does not produce this same high-quality picture. If you’re planning to use the touchscreen device to watch movies, TV shows and/or videos, you’ll probably want to choose a capacitive model for this reason.
Good Optical Clarity
A capacitive touchscreen sensor consists of a large array of indium tin oxide (ITO) conductors on one or more layers of glass or polyethylene terephthalate (PET) plastic.
The good optical clarity and low resistivity of ITO make it the overwhelming choice for this very sensitive circuit.
Cracked Screens Continue to Function
Let’s hope this never happens, but in the event that your capacitive touchscreen device cracks, it should continue to function. Cracked screens are among the most common type of damage sustained by touchscreen devices. Maybe you drop it on the group, or perhaps a worker “bumps” into it accidentally. Regardless, minor cracks shouldn’t interfere with the function of a capacitive touchscreen device. It will continue to measure the electrical charge produced by the operator, using this information to determine where exactly the touch occurred.
Technical parameters
1.Products comply with RoHS standard
2.Euphotic rate of more than 86%
3.For the surface hardness 7H
4.working Voltage: 5.0V The interrupt way The drop-down pulse
5.IC(ILI2301/ILI2302/ILI2510/ILI2312/ILI2511)10point touch,IOVoltage 3.3V
6.FPC Interface line USB Interface
7.Not specified tolerances +0.2mm
8.COVER LENS Chemical tempered glass
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

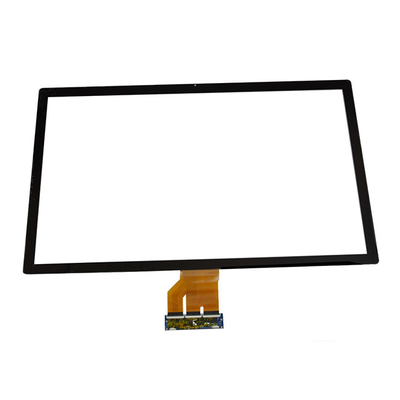

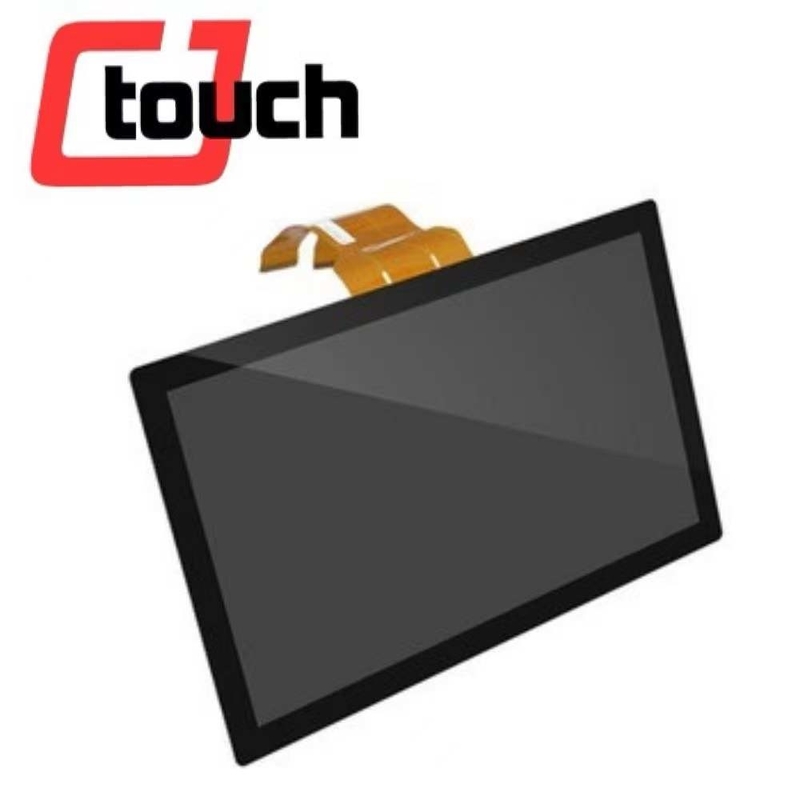

Picture of Product
Technical Drawing
