Product Details:
|
| Screen: | PCAP Sensor Touch Screen | Applictions: | Auto Industry |
|---|---|---|---|
| Hardness: | ≥6H | Touch Type: | CTP |
| Input: | Capacitive Pen Or Hand Writing | Cover Lens: | 3mm |
| Glass Thickness: | Support Customized Glass | Touch Points: | 10 Touch Points |
| High Light: | CJtouch Projected Capacitive Touchscreen,10points Projected Capacitive Touchscreen,PCAP Touchscreen For Kiosks |
||
Product Specification:
CTP structure explanation:
* P+G=PET+Glass (cover lens is PET and touch sensor is glass).
* G+G=Glass+Glass (cover lens is glass and touch sensor is glass).
* G+F/F=Glass+Film+Film (cover lens is glass and touch sensor is film+film).
* CG= Cover Glass, OD= Outside Dimension, VA= Viewing Area.
Are yo know what is capacitive touch screen technology?
Capacitive touch screens are control displays that utilise the electrical properties of the human body as input. When a finger (or specialised input device, such as stylus) comes in contact with the display it detects when and where on the display the user touches it.
Common Applications
The Capacitive have a advantage , you need know .
Durability.Of course, another key benefit of capacitive touchscreen technology is its strength and durability. Touchscreen devices see a lot of use throughout the years, especially in commercial applications. As such, it’s important to choose a durable touchscreen device that’s able to withstand this use. Capacitive touchscreens are more durable than resistive touchscreens, as dirt and fingerprint smudges won’t affect their function.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

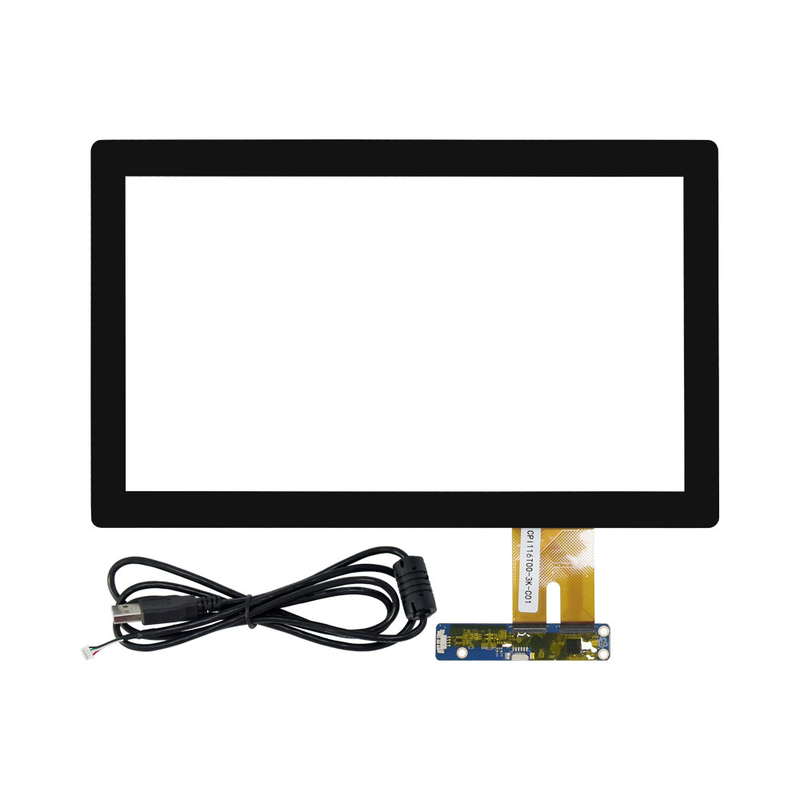

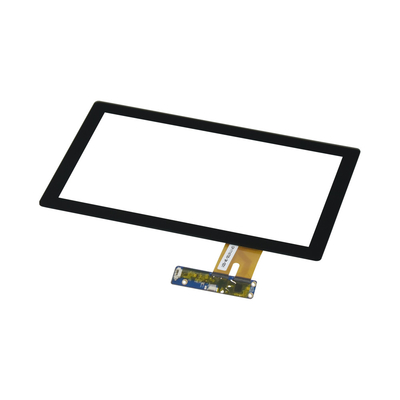

Picture of Product
Technical Drawing
