Product Details:
|
| Touch Type: | Multi Infrared Touch Screen | Touch Points: | 2,4,6 Touch Ponits |
|---|---|---|---|
| Glass: | 3mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | Interactive Infrared Touch Screen,Infrared Touch Screen For LCD Display |
||
What is the difference between IR touch and capacitive touch?
IR and capacitive are two completely different types of touchscreen technology. IR uses a grid-like array of LEDs and sensors to detect touch commands, whereas capacitive uses a uniform electrostatic current to detect touch commands.
An infrared touchscreen device emits infrared light across the interface, which is picked up by various sensors, typically located on the edges or corners. The infrared light is invisible to the naked eye. ... This makes it particularly beneficial when used to produce large touchscreen displays.
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front of the display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts from the operation
Main feature
Aluminum frame or plastic frame - Dust proof or water proof
3/4 mm tempered glass - Vandal proof
Sunlight readable
Multi touch - 2/4/6/10 touch points
USB 2.0, plug and play
Support windows XP/7/8/10, Android, Linux OS
Specification of Product
| MECHANICAL | |
| P/N | CIN Slim series |
| Overlay Thickness | 7.9 mm |
| Overlay Frame Width | 18.5 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 3mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test |
Incandescent lamp (220V,100W) , operating distance over 350mm |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0013 |

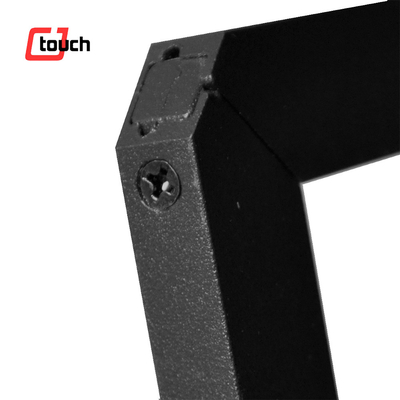

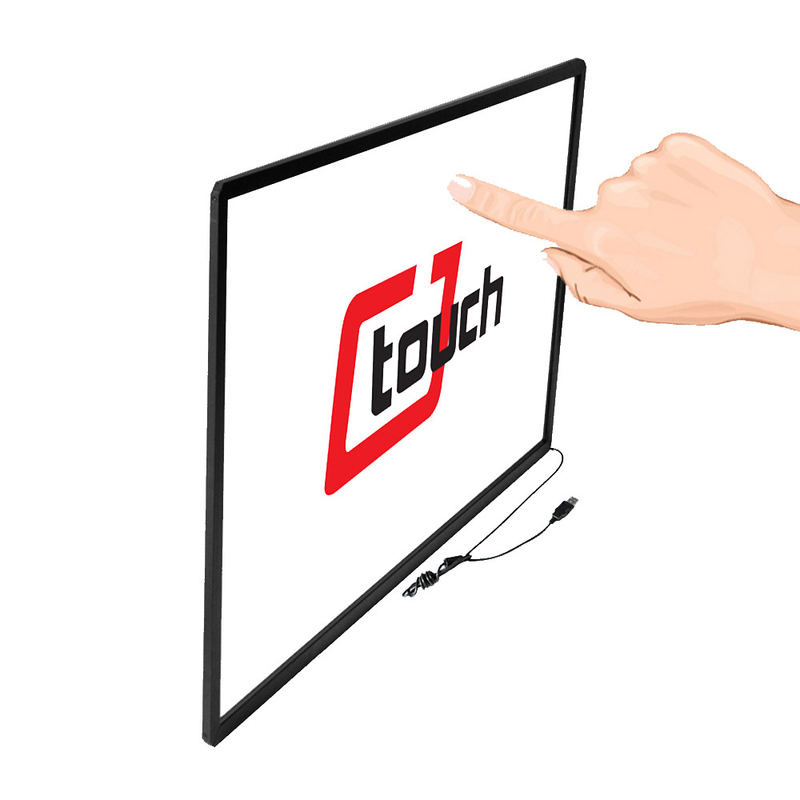

Picture of Product
Technical Drawing
