Product Details:
|
| Touch Type: | IR Touch Screen | Touch Points: | 10 Touch Ponits |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Input Voltage: | 5Volt |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | Whiteboard Infrared Touch Screen,Interactive Infrared Touch Screen,46 Inch ir touch screen |
||
Main Features
1. Double-point write with peace,precise multi-point touching.
2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
3. Longevity of service ,maintenance free.
4. Aluminum alloy shell with strong stability.
5. Tempered glass with high light transmittance and true color rendition.
6. Without driver ,supporting plug and play.
7. Adapt to internal and external linked environment.
8. No touching tools,no special touching pen is required ,only your finger.
9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other undesirable phenomena
Application
TV/PC/Gaming device
Exhibition
Education training
Pubic query machine
Self-service machine
Map directory
Any interactive machine
Specification of Product
| MECHANICAL | |
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |
| Overlay Frame Width | 19.1 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0 013 |

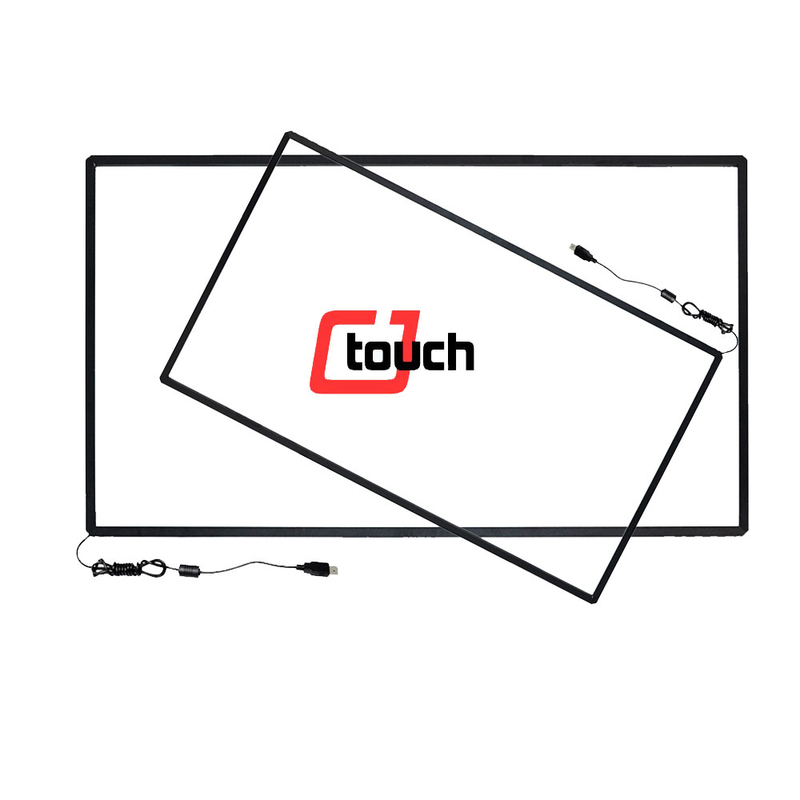

Picture of Product
Technical Drawing
FAQ
Q1: Do you accept customization displays and touch screens?
A: Sure, you can customization the PCAP Touch Monitor and the touch screen.
Q2: What type of interface is your display screen?
A: Small sized of displays generally support PCAP Touch Monitor .Medium sized displays generally support PCAP Touch Monitor Different specifications use different interfaces.
Q3: Do you used capacitive touch screen or resistive touch screen.
A: We have capacitive touch screen and resistive touch screen .
Q4: What is your sample policy?
A: If there is stock,you can sample at any time,if there is no stock,it will take some time,and then wait for the materials to come back to sample. But the customer needs to pay the sample fee and express fee.
