Product Details:
|
| Touch Type: | Infrared Touch Panel | Touch Points: | 4,6 Touch Ponits |
|---|---|---|---|
| Glass: | 3mm Tempered Glass | Input Voltage: | 5Volt |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | 32 Inch Ir Touch Screen Panel,Antiglare Ir Touch Screen Panel,Vandalproof ir multi touch screen |
||
IR touch technology involves an embedded overlay of infrared beams from top to bottom and side to side around the device’s bezel. When the invisible plane provided by the beams in broken by any object, the device registers a touch point. With up to 40 simultaneous touch points, IR touch screen displays are a bit less accurate than PCAP displays. That said, Infrared displays are still quite accurate enough to be used in a wide variety of settings. But when used outdoors on a bright and sunny day, the sunlight can sometimes interfere with the overlay’s touch reception.
Specification of Product
| MECHANICAL | |
| P/N | CIN Slim series |
| Overlay Thickness | 7.9 mm |
| Overlay Frame Width | 18.5 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 3mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test |
Incandescent lamp (220V,100W) , operating distance over 350mm |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0013 |
Service:
1. Warranty: One year .
2. After-sales Service: For the user questions or machine fault,we will arrange engineer provide remote-control technical support and maintenance services for you at any time.
3. Product Quality Assurance: Our products had gone through authoritative evaluation, approves CE, RoHS certification, and strict test before shipment.
4. After-sales Service Team: The after-sales service center is equipped with a professional technical service team with abundant experience in maintenance and support.

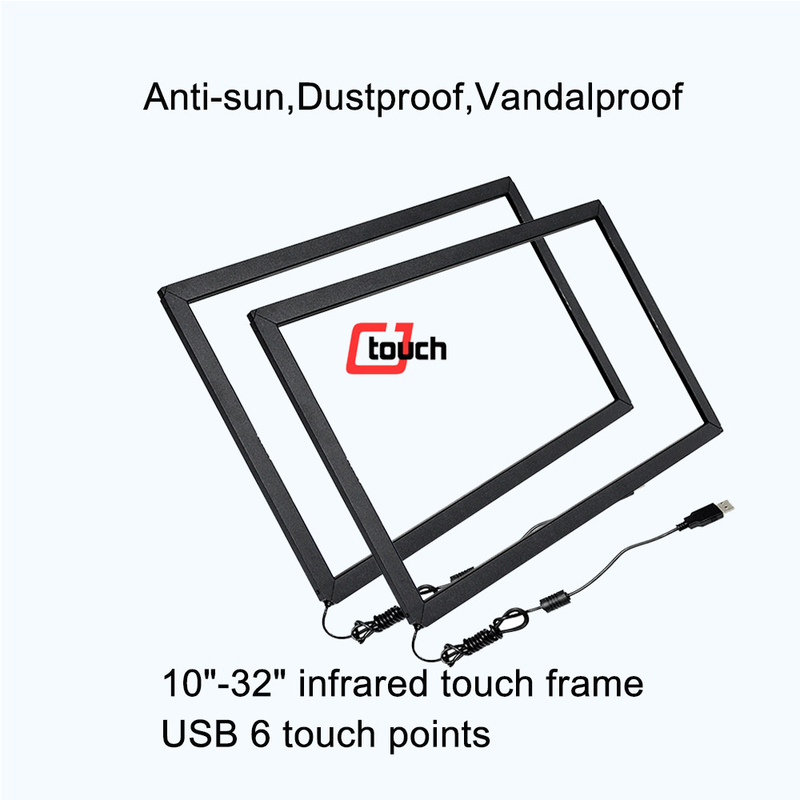

Picture of Product
Technical Drawing
