Product Details:
|
| Touch Type: | Multi Infrared Touch Panel Overlay | Touch Points: | 10 Touch Ponits |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Input Voltage: | 5V |
| Driver: | Plug And Play | Interface: | USB |
| High Light: | 75Inch 10 Point Touch Screen,Anti Tamper 10 Point Touch Screen |
||
CJTouch touchscreens are the ideal choice in many industrial automation, transportation, and in-vehicle applications,POS terminals, and medical equipment.CIP series touchscreen is the infrared touchscreen overlay product with integrated touch controller inside the bezel. It is designed to fit into LCD monitor. Features such as superior image quality, together with scratch proof, water proof, maintenance free, any activation object that is IR opaque, low to no EMI impact to surrounding systems, as well as sunlight operability make the E/E2-series IRTOUCH touchscreen an ideal choice for many interactive applications such as POS, industrial, ATM and medical and kiosks.
Infrared touch screen Features:
1.Toughened glass material, with high transmittance, strong stability.
2.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
3.Long service life, maintenance-free.
4.Driver-free support for multiple operating systems.
5.Ultra-thin and ultra-narrow frame, aluminium alloy shell.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.High touch accuracy and smooth writing.
8.No special touch tools are needed, just opaque objects.
Specification of Product
| MECHANICAL | |
| P/N | CIP Slim series |
| Overlay Thickness | 14.6 mm |
| Overlay Frame Width | 19.1 mm |
| Housing | Aluminum frame/ Plastic frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | NA2= 2 Touch Points,NA4= 4 Touch Points, NA6=6 Touch Points |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 4mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
| Anti -Static Discharge (Standard :B) | Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti – glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |
| VID | 1FF7 |
| PID | 0 013 |

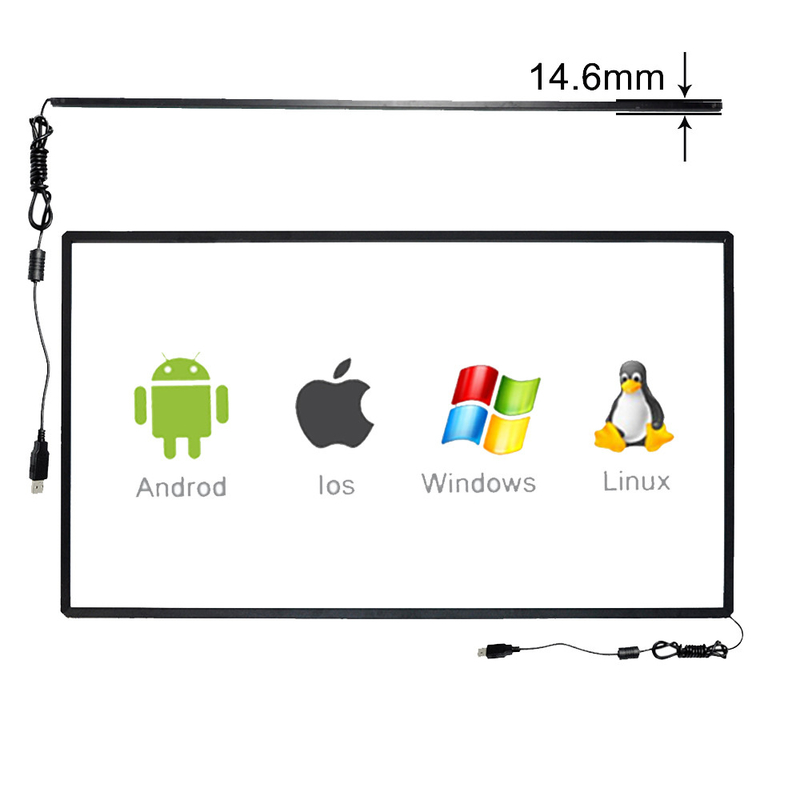

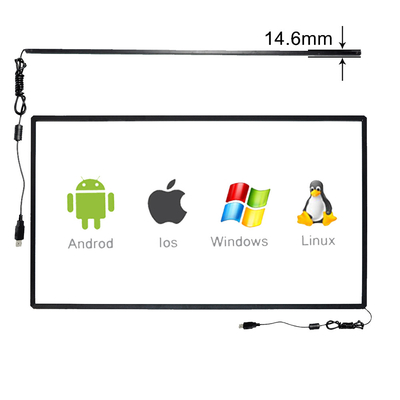

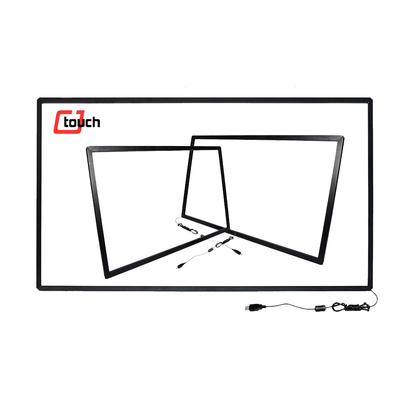

Picture of Product
Technical Drawing
