Product Details:
|
| Touch Type: | Touch PCAP Screens | Touch Points: | 10 Touch Points |
|---|---|---|---|
| Interface: | USB | Cover Lens: | 3mm |
| Input Voltage: | 5V | Hardness: | ≥6H |
| Glass: | 3mm Tempered | Customized: | Support |
| High Light: | 10 Touch Point PCAP Touch Screen,23.6 Inch PCAP Touch Screen,Antiglare PCAP Touch Panel |
||
Capacitive touch panel is made up of the under sensor glass layer and the upper cover laywer. Now there are mainly two kinds of structure capacitive touch panel in current market: one is sensor glass+tempered glass cover, for short G+G capacitive touch panel, another one is sensor glass+PET plastic cover structure,for short G+P capacitive touch panel. Iphone,ipad and some other high end brand android tablets use G+G, some low end capacitive touch tables use G+P with low cost.
What's the meaning of G+G,P+G,G+F,G+F+F,OGS?
They are categorized by structure of capacitive touch panel. The first letter stands for cover material(i.e the upper cover layer),the 2nd letter stands for sensor material(i.e under sensor layer), these two materials glues in one.G+G: Cover Glass+Glass Sensor
P+G: PET Plastic + Glass Sensor
G+F: Cover Glass+Film Sensor
G+F+F:Cover Glass+Film Sensor+Film Sensor
OGS: Cover Glass(One Glass Solution)
touch screen devices placed in the lobby. Financial institutions are places where Capacitive Touch Panel Screen are used a lot. The bank can help the business through the operation of the touch screen. It is more convenient for the handler to enter the information in advance and then go to the front desk to handle it. Today, I would like to introduce to you which industries are suitable for touch screens.
Main Feature
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

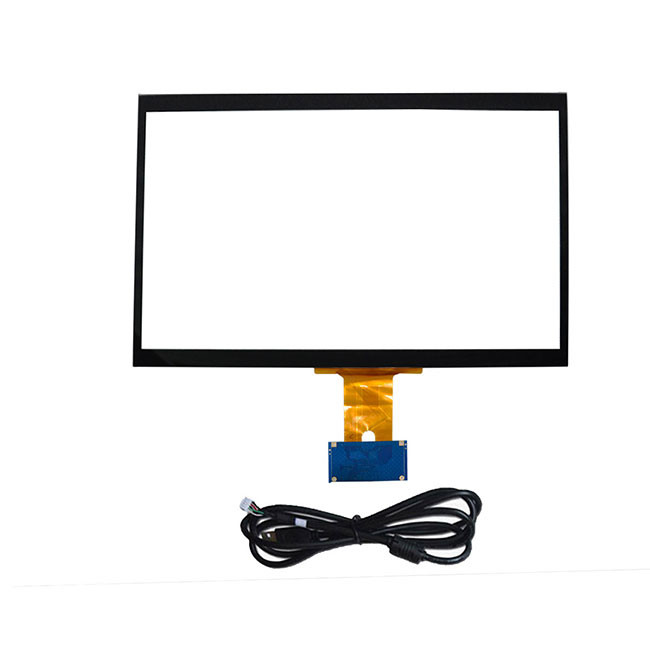

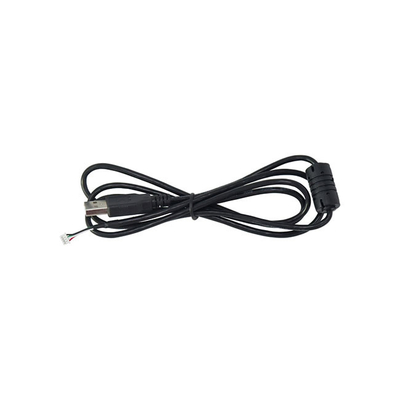

Picture of Product
Technical Drawing
