10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof

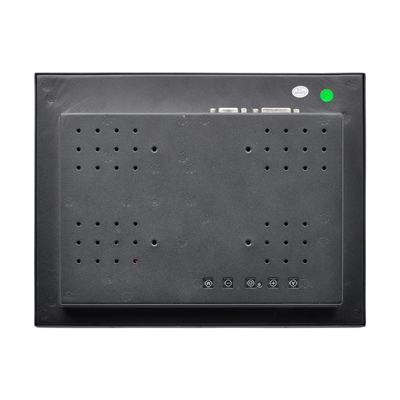

Large Image : 10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof

Product Details:

Place of Origin:	Dongguan China
Brand Name:	CJ TOUCH
Certification:	FCC /CE
Model Number:	COT104-APF02

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiable
Packaging Details:	Carton package
Delivery Time:	2-3 days
Payment Terms:	L/C, D/A, D/P, T/T,
Supply Ability:	10000(pcs )per quarter

Contact Now

10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof

Description

Touch Type:	Surface Acoustic Wave Touchscreen Panel	Size:	10.4inch
Warranty:	1 Year	Application:	Gaming ,retail ,kiosk,health ,care,pos
Resolution:	1024×768	View Angle:	89/89/89/89 (Typ.)
Touch Point:	1 Point	Interface:	VGA/DVI/USB//DC12V
High Light:	10.4inch Surface Wave Touch Screen , Surface Wave Touch Screen Open Frame , 10 inch open frame monitor

Factory Saw Monitor Lcd display 10.4inch Open Frame Waterproof SAW Touchscreen Monitor

LCD 1024*768 etc Resolution;Touch 1,2,4,6,10 MultiPoints SAW TouchScreen Touch Panel Touch Frame;
3/4/6mm Thickness Tempered Transparent Pure Touch Glass Overlay Kit
Ports USB,RS232,,VGA,DVI,Remote Control etc Interface;
Application Filed Usage
Self-service Kiosk,Advertising Signage,Whiteboard,Touch Table,Payment ATM,POS,Vending ect.
Industrial /Indoor IP65 / Anti Glare / Anti Reflection / Anti Fingerprint ect.
Tempered / Vandalproof / Waterproof / Anti Sunlight / Dustproof / AR / AG / AF ect option;
Structure Design
Openframe / Wall mounted / Embedded / Landscape / VESA and Brackets Supported ;
About Us:
Professional R&D team, pre-sales and after-sales service,,Provide you with professional solutions.
Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market.
Our goal is "Innovation First, Quality First, Customer First, Service First". We are committed to providing quality products,

Touch monitor Pictures:

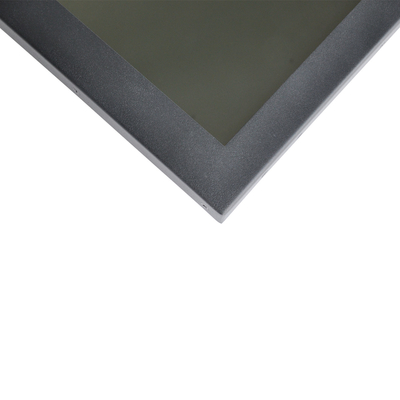

10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof 0

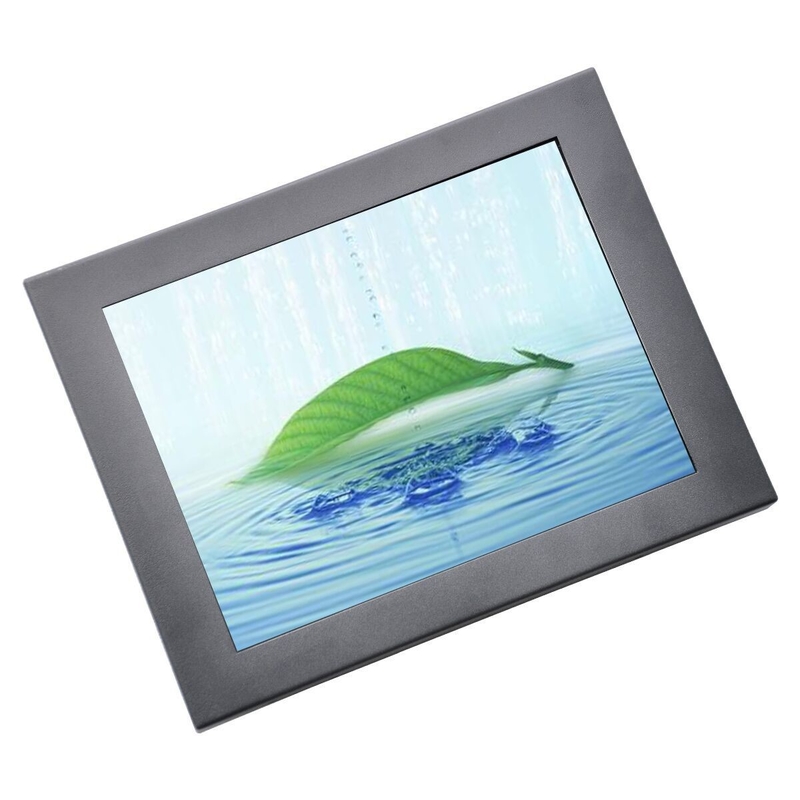

10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof 1

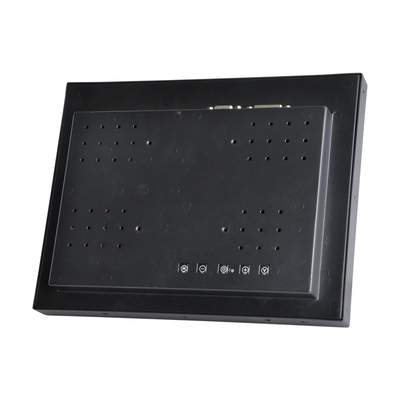

10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof 2

Specification :

Model	COT104-APF02
Series	Water-proof and Compact
Monitor Dimensions	Width: 268mm Height: 208mm Depth: 44mm
Weight(N.W/G.W)	4Kg / 7.8Kg (Approx.)
LCD Type	10.4"SXGA Color TFT-LCD (Panel Model :G104EG01 V0)
Video Input	Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally
Recommend Resolution	1024×768
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical
Regular Warranty	3 years for SAW Sensor; 3 years for controller; 1 year for LCD
Agency Approval	FCC,CE

2.LCD specs

Active Area(mm)	211.2x158.4
Resolution	1024×768
Dot Pitch(mm)	0.0685×0.2055 mm (H×V)
Signal Electrical Voltage Input	3.3V (Typ.)
Viewing angle (v/h)	75/75/75/75
Contrast	900:1
Luminance(cd/m2)	350cd/m²
Response Time(Rising/Falling)	20/10 (Typ.)(Tr/Td)
Support Color	16.7M colors
Backlight MTBF(hr)	50000
NOTE:The LCD Specification will change follow the relevant LCD panel brand and model

3.Touch screen

Type	Cjtouch Surface Acoustic Wave(SAW)
Resolution	4096*4096
Light Transmission	92%
Touch Life Cycle	50 millions
Touch Response time	16ms
Touch System Interface	RS-232 and USB interface
Power consumption	+5V@80mA

Products Drawing :

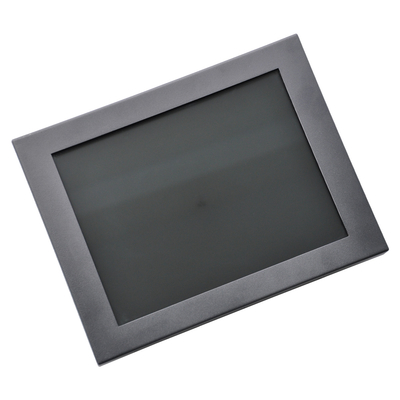

10.4inch Surface Wave Touch Screen 1024×768 Open Frame Waterproof 3
