Product Details:
|
| Touch Type: | SAW(Surface Acoustic Wave) Panel Monitor | Size: | 15inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1024(RGB)×768, XGA | View Angle: | 89/89/89/89 (Typ.) |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB/RS232/DC12V |
| High Light: | Vandalproof SAW Touch Monitor,Open Frame SAW Touch Monitor,15 inch open frame monitor |
||
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
cutting-edge solutions in the industry.
* Sur-face Acoustic Wave (SAW) touch technology
* Infrared touch technology
* Projected Infrared Touch technology
What We Offer:
Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic
team, we want to connect with all our customers.
Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
OEM: Accept ODM/OEM.
Samples: We provide of this product from our source.
Production time: within 7 working days after confirming the order.
Specification :
| Model | COT150E-AWF02 |
| Series | Dustproof |
| Monitor Dimensions | Width: 346mm Height: 270mm Depth: 49mm |
| Weight(N.W/G.W) | 6Kg / 9Kg (Approx.) |
| LCD Type | 15"SXGA Color TFT-LCD (Panel Model :G150EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1024(RGB)×768, XGA |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 304.128 × 228.096 |
| Resolution | 1024(RGB)×768, XGA |
| Dot Pitch(mm) | 0.099×0.297 mm |
| Nominal Input Voltage VDD | 3.3v |
| Viewing angle (v/h) | 89/89/89/89 (Typ.) |
| Contrast | 700:1 (Typ.) |
|
Pixel Pitch(W×H) |
0.297×0.297 mm |
| Support Color | 16.7M colors |
| Response Time | 8/17 (Typ.) |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

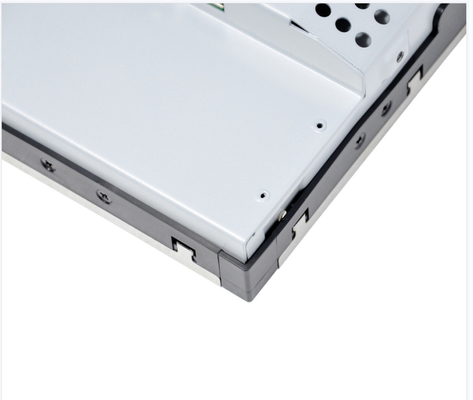

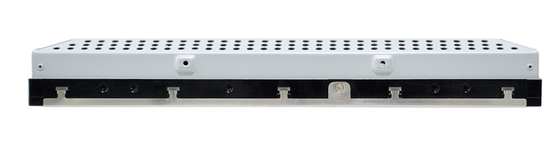

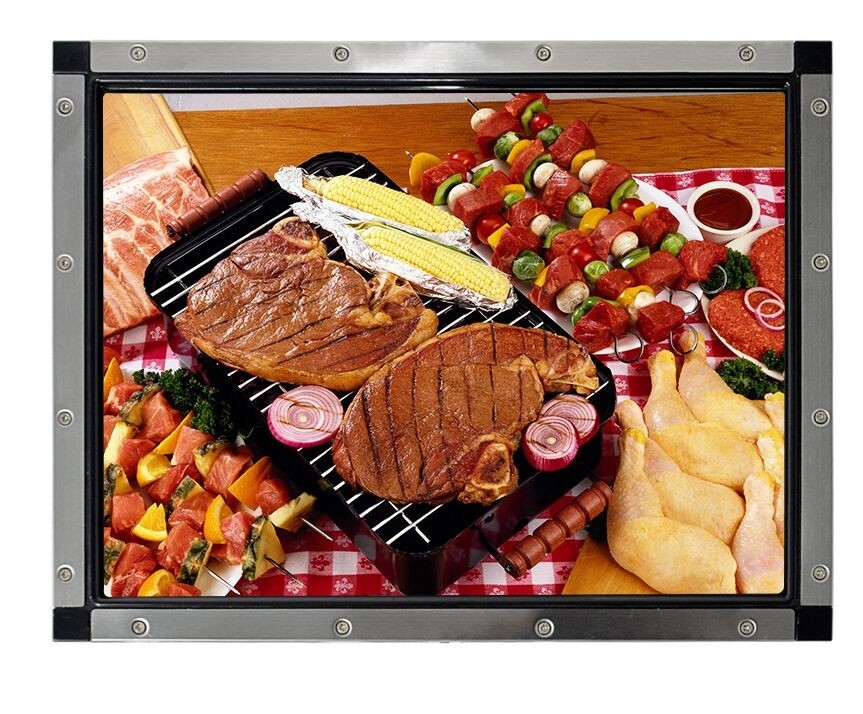

Touch monitor Pictures
Products Drawing :
