Product Details:
|
| Touch Type: | SAW Touchscreen Monitor | Size: | 13.3 Inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1920(RGB)×1080 | View Angle: | 80/80/80/80 (Typ.) |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB/RS232/DC12V |
| High Light: | Vandalproof Saw Touch Screen Monitor,Saw Touch Screen Monitor 13.3inch,13.3 inch touch screen monitor |
||
Company Profile
Established in 2006 and headquartered in Dongguan, China, CJTouch has proven to be reliable and trustworthy partners to help
seamlessly integrate our products into your total solution.
* Over 8 years of combined experience in researching and developing touch-enabled screens and monitors.
* Two factories with over 200 skilled and qualified employees, including R & D engineers, technical experts and sales representatives.
What We Offer:
Through our consistent and high quality performance, CJTouch has got ISO 9001 certified and has earned FCC, RoHS and other
international certifications.
* Single Multi-touch screens (custom sizes available)
* Single Multi-touch monitors (custom sizes and functions available)
* All-in-one computers
* ODM/OEM services
Technology:
CJTouch has always relied on continuous innovation to stay ahead in touch technology. We are committed to delivering the most
cutting-edge solutions in the industry.
* Sur-face Acoustic Wave (SAW) touch technology
* Infrared touch technology
* Projected Infrared Touch technology
Specification :
| Model | COT133-APK02 |
| Series | Dustproof |
| Monitor Dimensions | Width: 343mm Height: 214mm Depth: 42.5.5mm |
| Weight(N.W/G.W) | 6Kg / 9Kg (Approx.) |
| LCD Type | 13.3"SXGA Color TFT-LCD (Panel Model :G133EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1680(RGB)×1050 |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1 years for SAW Sensor; 3 years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 293.472 × 165.078 mm |
| Resolution | 1920(RGB)×1080 [FHD] |
| Dot Pitch(mm) | 0.05095×0.15285 mm (H×V) |
| Nominal Input Voltage VDD | 3.3V (Typ.) |
| Viewing angle (v/h) | 80/80/80/80 (Typ.) |
| Contrast | 800:1 (Typ.) |
| Brightness | 300 (Typ.) |
|
Pixel Pitch(W×H) |
0.15285×0.15285 mm (H×V) [166PPI] |
| Support Color | 16.7M colors |
| Response Time | 25 (Typ.)(Tr/Td) |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screen
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5V@80mA |

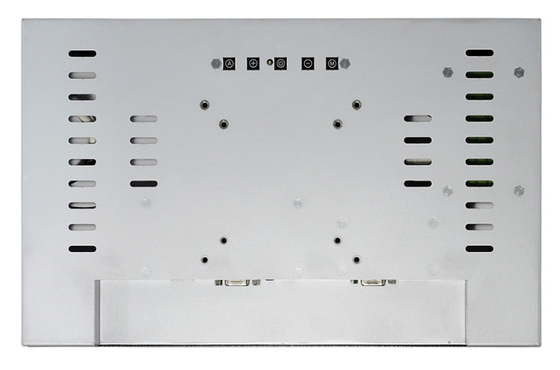

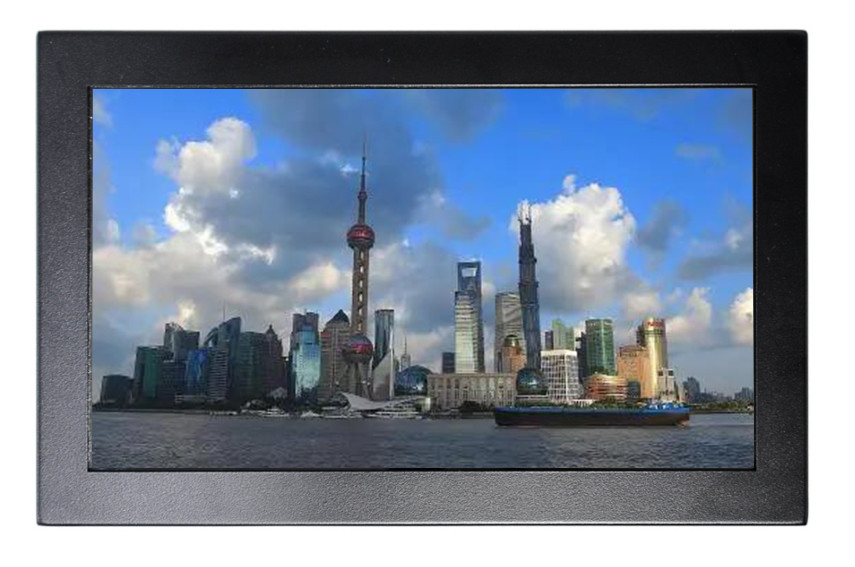

Touch monitor Pictures
Products Drawing :
