Product Details:
|
| Touch Type: | SAW MONITOR | Size: | 15 Inch |
|---|---|---|---|
| Warranty: | 1 Year | Application: | Gaming ,retail ,kiosk,health ,care,pos |
| Resolution: | 1024(RGB)×768 | View Angle: | 89/89/89/89 (Typ.)(CR≥10) |
| Touch Point: | 1 Point | Interface: | VGA/DVI/USB/RS232/DC12V |
| High Light: | SAW Touch Monitor Open Frame,4k SAW Touch Monitor,LCD Touch Monitor 15 Inch |
||
Support embedded,wall-mounted,rack-mounted,desktop,VESA support..Transportation choice:
Transport and Packing process Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available. Delivery Time Samples: 1-3working days 500PCS or More orders:5-15working days
Specification :
| Model | COT150E-AWF02 |
| Series | Water-proof and Compact |
| Monitor Dimensions | Width: 346mm Height: 270mm Depth: 49mm |
| Weight(N.W/G.W) | 5Kg / 7.8Kg (Approx.) |
| LCD Type | 15"SXGA Color TFT-LCD (Panel Model :G150EG01 V0) |
| Video Input |
Accepts RGB input directly, DVI,HDMI and Audio function can be supported optionally |
| Recommend Resolution | 1024×768@75Hz |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface |
1)VESA 75mm and 100mm 2)Mount bracket, horizontal or vertical |
| Regular Warranty | 1years for SAW Sensor; 1years for controller; 1 year for LCD |
| Agency Approval | FCC,CE |
2.LCD specs
| Active Area(mm) | 304.128(H)×288.096(V) mm |
| Resolution | 1024(RGB)×768 XGA 85PPI |
| Dot Pitch(mm) | 0.099×0.297 mm (H×V) |
| Nominal Input Voltage VDD | +3.3V(Typ) |
| Viewing angle (v/h) | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 350 |
| Response Time(Rising/Falling) | 8/17 (Typ.)(Tr/Td) ms |
| Support Color | 16.7M colors |
| Backlight MTBF(hr) | 50000 |
| NOTE:The LCD Specification will change follow the relevant LCD panel brand and model | |
3.Touch screens
| Type | Cjtouch Surface Acoustic Wave(SAW) |
| Resolution | 4096*4096 |
| Light Transmission | 92% |
| Touch Life Cycle | 50 millions |
| Touch Response time | 16ms |
| Touch System Interface | RS-232 and USB interface |
| Power consumption | +5v |

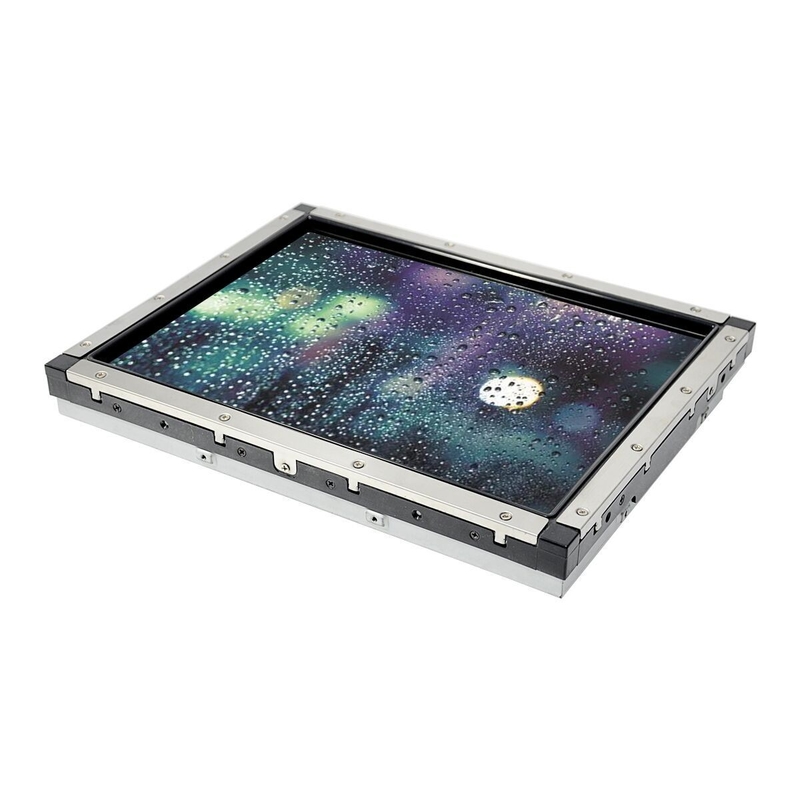

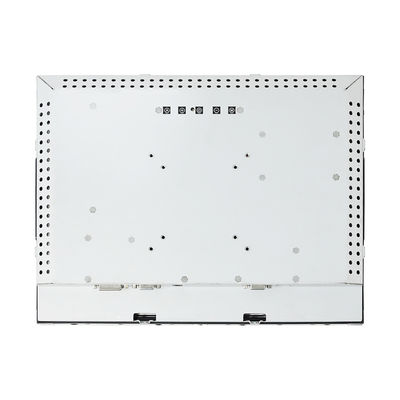

Touch monitor Pictures
Products Drawing :
