Product Details:
|
| Touch Type: | PCAP Touch Screen | Application: | All In One Touch Pc |
|---|---|---|---|
| Interface: | USB | Glass: | Tempered Glass |
| Touch Points: | 10 Touch Points | Cover Lens: | 3mm |
| Input: | Hand Writing Or Capacitive Pen | Humidity Resistance: | 85% RH, 120 H |
| High Light: | Multipoint Widescreen Touch Panel,17.3Inch Widescreen Touch Panel,ODM Projected Capacitive Touch Display |
||
Multi-Point 17.3 inch Capacitive Touchscreen PCAP Touch Screen Widescreen for touch kiosks
Typical Application
Markets
Projected Capacitive Touch Screens
PCAP touch screen software is typically used in smart phones and tablets, but can also be used for much larger screens. It works through the use of a conductive grid that recognizes changes in its electromagnetic field by the touch of your finger. Projected capacitive touch screen technology does not require a bezel. They detect only fingers or styluses. PCAP displays very accurate, and capable of up to 60 touch points.
Projected capacitive touch screen sensors use two perpendicular layers of conductive coatings that form vertical and horizontal patterned tracks behind a glass top layer. When a finger is placed on the glass screen it changes the mutual capacitance between the horizontal and vertical patterned tracks. The controller scans each cell of the horizontal and vertical grid with a high frequency signal, identifying any changes in mutual capacitance between adjacent cells as touch locations.
For more information on popular touch screen technologies, please check Specification of product.
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

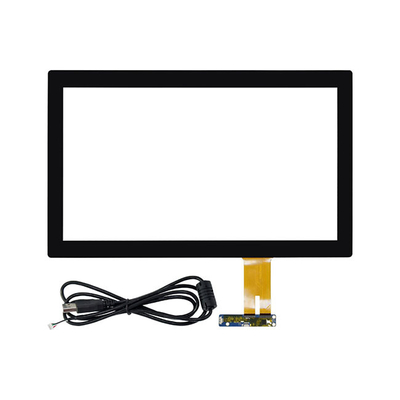

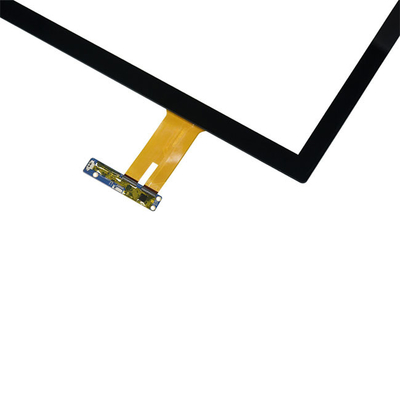

Picture of Product
Technical Drawing
