Product Details:
|
| Touch Type: | Mini Size PCAP Touch Panel | Technologies: | Touch Screen Technologies |
|---|---|---|---|
| Application: | Gaming Machines | Interface: | 1.3/1.8 M USB |
| Glass: | Tempered Glass | Touch Points: | 10 Touch Points |
| Input: | Hand Writing Or Capacitive Pen | Pressure Value: | 400 ~500 MPA Above 6u |
| High Light: | Capacitive PCAP Touch Screen,PCAP Touch Screen For Gaming Machines,Small PCAP Projected Capacitive Touch Screen |
||
Small size 8.4 inch PCAP Touch Screen Capacitive touch screen technologies PCT
PROJECTED CAPACITIVE
In case of projected capacitive touches, the conductive ITO layer is applied to the rear of the glass. The ITO layer then projects the capacitive field through the glass.
ADVANTAGES OF CAPACITIVE TECHNOLOGY
As a result of the technology, no force is required to actuate a touch event. Thus, the touch can be operated very quickly.
GLOVES
Operation with gloves is possible to a limited extent. Electrically conductive gloves are 100% compatible. Very thin, non-conductive gloves (medical gloves) are also compatible. As soon as thick gloves are required, preference shall be given to resistive touch technology.
Could you want to make a Smart Lockers ?
The Small size PCAP Touch Screen will help you make a Touch Monitor , reduce labor coats though automated pickup .
Which is better capacitive or resistive touch screen?
If you want increased screen contrast and clarity, capacitive touch screens are the preferred option over resistive screens, which have more reflections due to their number of layers. Capacitive screens are also far more sensitive and can work with multi-point inputs, known as 'multi-touch'.
Typical Application
Markets
Specification of Product
| Technical specification | |
| Type | Projected touch panel |
| Interface | USB |
| Number of touch point | 10 |
| input voltage | 5V ---- |
| Pressure endurance value | <10g |
| Input | Hand writing or capacitive pen |
| Transmittance | >90% |
| Surface Hardness | ≥6H |
| Usage | The specification is applied to transparent and handwriting input |
| capacitive touch panels | |
| Application | It's applied in ordinary electric equipments and automatic office facilities |
| Cover Lens Specification | |
| Pressure Value | 400 ~500 mPA above 6u |
| Ball Drop Test | 130g±2g, 35cm, No damage after the impact at the central area for once. |
| Hardness | ≥6H Pencil: 6H Pressure: 1N/45. |
| Environment | |
| Working temperature and humidity | -10~+60ºC, 20~85% RH |
| Storage temperature and humidity | -10~+65ºC, 20~85% RH |
| Humidity resistance | 85% RH, 120H |
| Heat resistance | 65ºC, 120H |
| Cold resistance | -10ºC, 120H |
| Thermal shock | -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles |
| Anti - glare Test | Incandescent lamp (220V,100W) , |
| operating distance over 350mm | |
| Altitude | 3,000m |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Software(Firmware) | |
| Scanning | Auto full screen scanning |
| Operate system | Win 7,Win 8,Win10, Andriod,Linux |
| Calibration tool | Precalibrated & Software can be download in CJTouch Website |

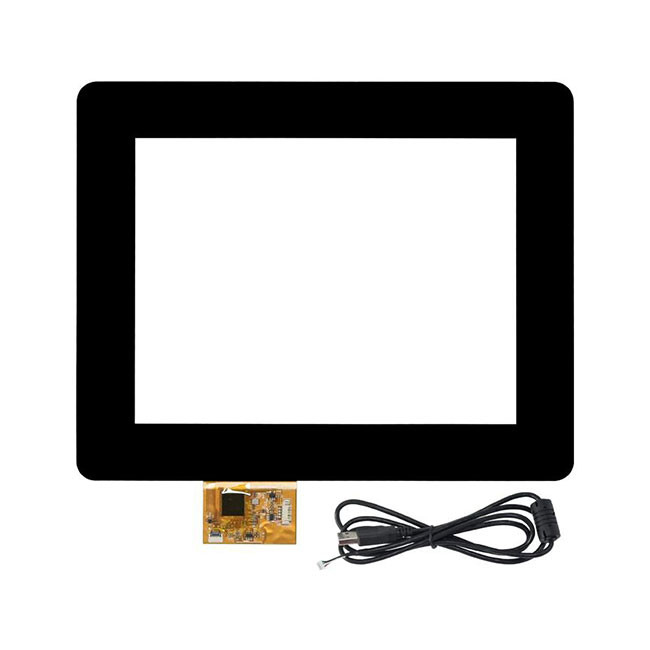

Picture of Product
Technical Drawing
